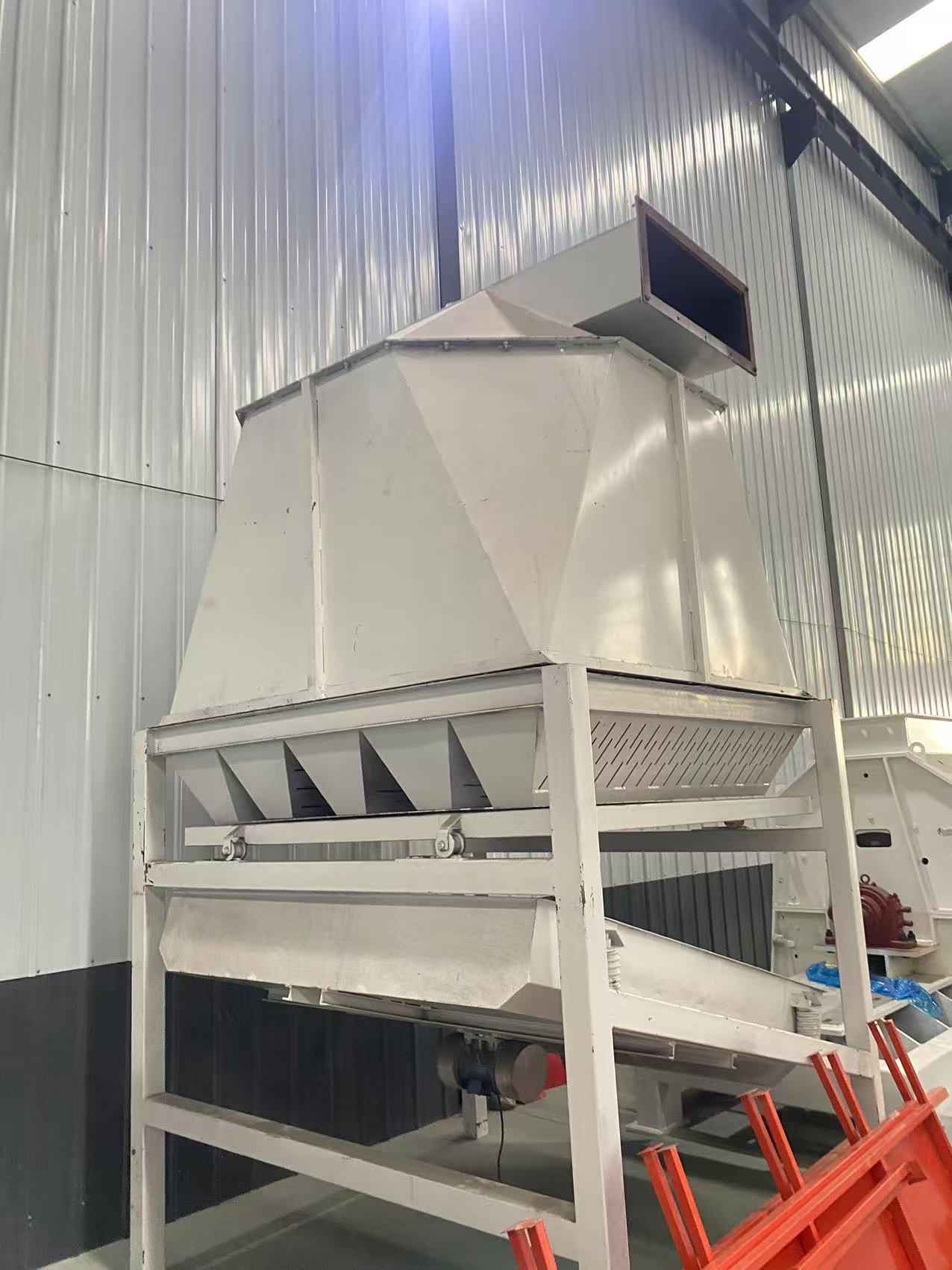

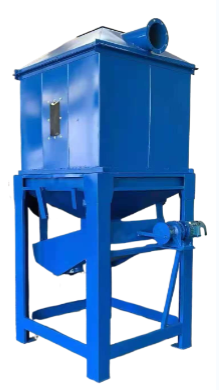

SKLN-10 Cooler Counter
Assembly - friendly Design: The machine features a modular structure installation, facilitating its transportation and installation process.
Smooth Operation: Thanks to its unique vibration - type mechanism, the machine ensures a seamless material discharge.
Automated Functionality: Equipped with a material leveler, the machine can conduct real - time monitoring of the material position within the bin.
Efficient Cooling: By applying the counter - current cooling principle, the machine enables uniform and sufficient cooling of the particles.
The introduction of product
Counterflow cooler consists of upper casing, intermediate bin, cooling net, vibrating screen, frame, observation window, dust bag, fan and other components. This equipment is mainly used for the cooling of high temperature particles after granulation to reduce the temperature and humidity of the particles, so as to facilitate the transport, storage and custody. Pellets from the granulator out of the temperature can be nearly 70 degrees, high temperature particles are very easy to break and produce water vapour, but the temperature of the cooled particles is close to the atmospheric temperature, can be directly packaged. Therefore, it is an indispensable part of the large production line, which facilitates the pellets to go to the next section (packing section). Compared with the old cooling machine, the new cooling machine is made of thick galvanised sheet, high density, not easy to deformation and corrosion, long service life.
Product features
The machine has a unique cooling mechanism, the cooling wind and particles reverse movement, so that the material is gradually cooled from top to bottom, avoiding the general vertical cooler due to the sudden cooling caused by the particle surface cracking, the heart of the water and heat in the cooling time is difficult to disseminate as well as fragile and other shortcomings.
1. Counterflow cooler adopts modular structure type installation, which is easy to transport and install.
2. Counterflow cooler adopts unique vibration type mechanism to discharge materials smoothly.
3. Countercurrent cooler is set up with material leveler, which can monitor the position of materials in the silo in real time.
4.Countercurrent cooler uses countercurrent cooling principle to make the particles cool evenly and fully.
Parameter
Model | Output | Power | Cooling volume | Cooling time | Cooling material temperature |
SKLN-1.5 | 1-2 | 1.1+0.18+5.5 | 1.5 | ≥6-10 | ≤3-5 |
SKLN-2.5 | 2-3 | 2.2+0.18+11 | 2.5 | ≥6-10 | ≤3-5 |
SKLN-4 | 4-6 | 2.2+0.25+22 | 4 | ≥6-10 | ≤3-5 |
SKLN-6 | 7-10 | 3+0.25*2+37 | 6 | ≥6-10 | ≤3-5 |
SKLN-8 | 10-15 | 3+0.25*2+55 | 8 | ≥6-10 | ≤3-5 |
SKLN-10 | 15-20 | 3+0.25*2+75 | 10 | ≥6-10 | ≤3-5 |
