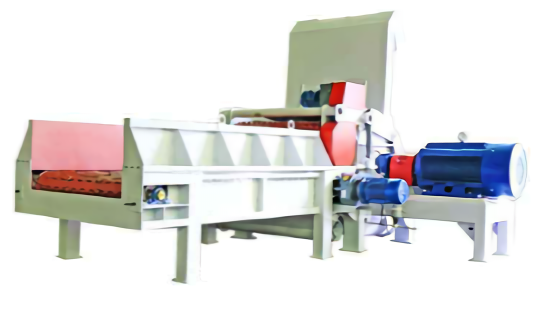

Combined Crushing and Powdering Equipment

Feeding Chain Plate: The chain plate is manufactured through one - time stamping, which boosts its rigidity. This makes the chain plate stronger and more long - lasting, allowing it to perform well even in tough working conditions.

Current Detection System: When an excessive amount of material is fed into the machine, causing processing difficulties, the system will automatically stop the feeding process. Once the internal material has been processed, it resumes feeding, thereby minimizing the occurrence of material blockages and machine breakdowns.

Feeding System: An internal hydraulic motor is installed in the feeding system. This motor effectively prevents material leakage and is not prone to getting stuck during rotation. It can be started frequently and can alternate between advancing and retreating. It features a long service life, rapid start - up, and a high starting torque. In the event of unexpected material jams, it can automatically adjust based on pressure changes. After a delayed reverse rotation, it will resume feeding.

Knives: Heavy - hammer - type knives are employed. These knives are made of highly wear - resistant materials and are easy to replace. As a result, the machine's crushing efficiency is significantly enhanced, and materials can be crushed more thoroughly.

Metal Removal Process: The machine utilizes a two - stage metal removal process. In the first stage, heavier metals are expelled. The second - stage magnetic separator not only separates metals while drawing in materials but also efficiently removes non - magnetic metals, thus guaranteeing operational safety.

Contact Now E-Mail Telephone WhatsApp

Product Details

Combined Crushing and Pulverizing Machine Product Introduction

Our combined crushing and pulverizing machine represents a groundbreaking piece of equipment, engineered to process a broad spectrum of materials smoothly and effectively.

Superior Material - Processing Abilities

This machine has the capacity to crush and pulverize materials that incorporate metals. It can handle substances such as construction templates, wooden pallets, raw materials from demolished wood, used wooden furniture, and scraps from furniture and flooring factories. Whether it’s large - volume construction waste or small - sized factory by - products, our machine can process them with remarkable effectiveness.

materials.3png

Extensive Applicable Scenarios

Construction Sites: Construction projects usually generate a large volume of waste wooden materials, such as used construction templates and pallets. Our machine can crush and pulverize these materials rapidly and efficiently, converting them into recyclable resources. This not only eases on - site waste management but also lessens the demand for landfill disposal.
Recycling Centers: Recycling plants handling mixed waste, especially those with wood and metal mixtures, can gain significantly from this machine. It can separate and process various materials, enhancing the recycling efficiency to the fullest. For example, recycling used woodenfurniture with metal parts becomes much more productive.
Industrial Manufacturing: Daily operations in furniture and flooring factories result in a substantial amount of scrap materials. With our combined crushing and pulverizing machine, these factories can recycle their own waste. The processed materials can be reused internally, for example, in the production of particleboard or as fuel for biomass boilers, which helps to lower production costs and reduce environmental impact.
Demolition Projects: During building demolitions, huge quantities of wooden structures and associated materials are produced. Our machine can be operated on - site to process these demolition - related materials. This streamlines the demolition operation, as the waste is processed right away, minimizing transportation costs and environmental contamination.

Model	POWER(KW)	Output(T/H)
TR-C72140	200+5.5+5.5 +7.5+1.5+2.2	3-5
TR-C72140	250+5.5+5.5 +7.5+1.5+2.2	4-6
TR-C90150	315+18.5+0.13	6-10
TR-C90150	200*2+18.5+ 0.13	7-12
TR-C90150	250*2+18.5+ 0.13	8-14
TR-C90150	315*2+18.5+ 0.13	10-16

Reliable After - sales Service

Free Technical Support: We provide free technical support services to our customers. Whenever you encounter any problems regarding machine installation, commissioning, operation, or routine maintenance, you can contact our professional technical team at any time. We will do our utmost to answer your questions and offer assistance.

One - year Warranty for the Whole Machine: We offer a one - year warranty for the combined crushing and pulverizing machine. During this one - year period, if any malfunctions occur due to quality issues, we will provide free repair services and replace faulty parts. However, it should be noted that this warranty does not cover auxiliary equipment, man - made damage, and the replacement of wearing parts.

Lifelong Maintenance (Excluding Auxiliary Equipment, Man - made Damage, and Replacement of Wearing Parts): We provide lifelong maintenance services throughout the product's lifespan. Even after the warranty period, when there are problems with your machine, our technicians will still provide professional repair services. Nevertheless, for faults in auxiliary equipment, damage caused by human factors, and the replacement of wearing parts during normal use, the customer shall bear the corresponding costs. We will ensure that your machine is always in good operating condition with reasonable prices and efficient services.
