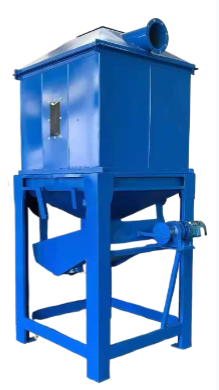

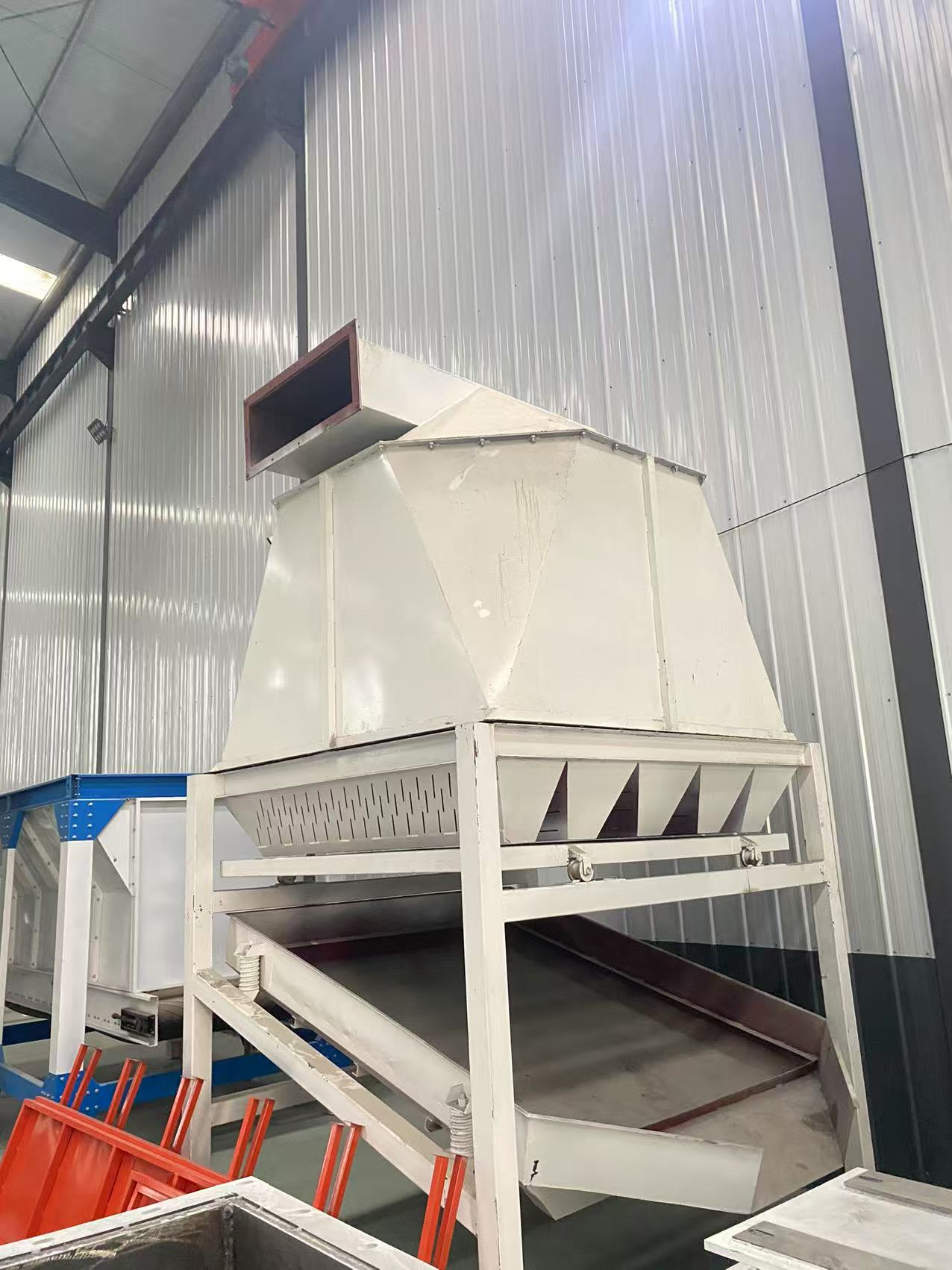

SKLN-8 Cooler Counter

1. Function and Importance in the Production Process

• Cooling High - Temperature Particles: The primary function of the counterflow cooler is to lower the temperature of particles that have just been granulated and are typically around 70 degrees Celsius. High - temperature particles are fragile and can easily break, which is a problem as it affects product quality. Additionally, they produce water vapor, which can lead to issues like mold growth during storage. By reducing the temperature and humidity, the cooler makes the particles suitable for transportation, storage, and long - term custody.

• Facilitating the Production Line: Once cooled to near - atmospheric temperature, the particles can be directly packaged. This makes the counterflow cooler an essential link in the large - scale production line. It allows for a seamless transition of pellets from the granulation stage to the packing section, ensuring the smooth flow of the overall manufacturing process.

• Material and Durability: The new counterflow cooler is constructed with thick galvanized sheets. These sheets have a high density, which gives the cooler several advantages. Firstly, it is highly resistant to deformation. This means that even under the stress of continuous operation, vibrations, and handling of materials, the structure of the cooler remains intact. Secondly, it is resistant to corrosion. In industrial settings, where the cooler may be exposed to moisture, chemicals, or other corrosive substances, this property ensures a long service life. The long - lasting nature of the new cooler reduces the need for frequent replacements and maintenance, resulting in cost savings for the production facility.

Product Features

1. The machine is equipped with a distinct cooling mechanism. Here, the cooling air and particles move in opposite directions. As a result, the material is cooled gradually from the top to the bottom. This design overcomes the drawbacks of ordinary vertical coolers, such as particle surface cracking caused by abrupt cooling, the difficulty of dissipating internal water and heat during the cooling process, and the brittleness issue.

2. The counterflow cooler is installed in a modular structure, which makes transportation and installation a breeze.

3. The counterflow cooler uses a special vibration - type mechanism to ensure a smooth discharge of materials.

4. The countercurrent cooler is furnished with a material leveler that can monitor the material position in the silo in real - time.

5. The countercurrent cooler applies the countercurrent cooling principle to ensure that the particles are cooled uniformly and thoroughly.

Parameter
