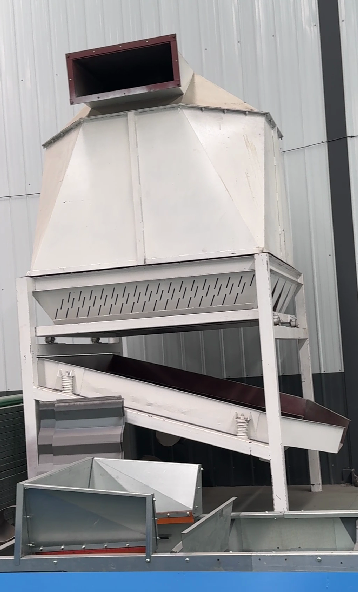

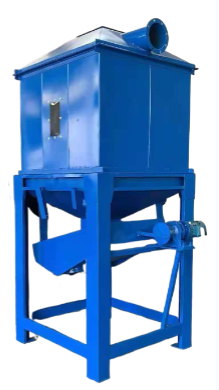

SKLN-6 Cooler Counter
Assembly - friendly Design:
The machine features a modular structure installation, facilitating its transportation and installation process.
Smooth Operation:
Thanks to its unique vibration - type mechanism, the machine ensures a seamless material discharge.
Automated Functionality:
Equipped with a material leveler, the machine can conduct real - time monitoring of the material position within the bin.
Efficient Cooling:
By applying the counter - current cooling principle, the machine enables uniform and sufficient cooling of the particles.
Product Introduction

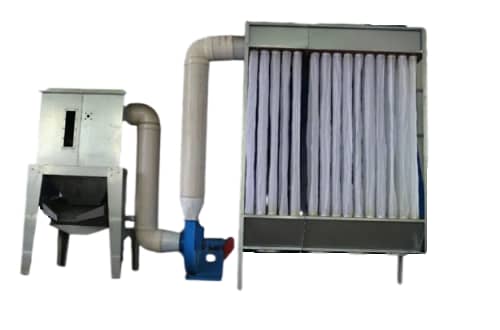

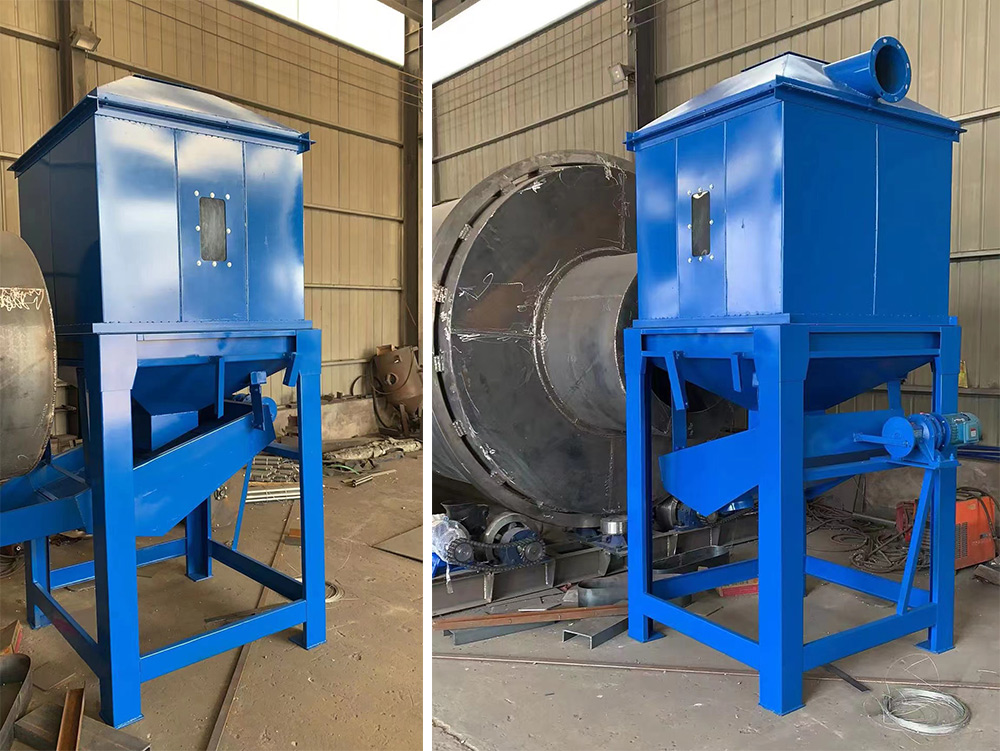

A counterflow cooler is composed of an upper casing, an intermediate bin, a cooling net, a vibrating screen, a frame, an observation window, a dust bag, a fan, and other components. This equipment is primarily applied to cool high - temperature pellets after granulation, aiming to decrease the temperature and humidity of the pellets, thereby making transportation, storage, and custody more convenient. The temperature of the pellets coming out of the granulator can reach nearly 70 degrees Celsius. At such a high temperature, the pellets are extremely prone to breakage and generate water vapor. However, after being cooled, the temperature of the pellets approaches the ambient temperature, allowing them to be directly packaged. As a result, it is an essential component of large - scale production lines, facilitating the transfer of pellets to the subsequent stage (the packaging stage). In contrast to the old - fashioned cooling machines, the new - generation counterflow coolers are fabricated from thick galvanized sheets. They feature high density, are less likely to deform or corrode, and have an extended service life.
Product Features
This machine is equipped with a distinctive cooling mechanism where the cooling air moves in the opposite direction to the particles. This enables the material to be cooled gradually from top to bottom. By doing so, it overcomes the drawbacks commonly found in ordinary vertical coolers, such as surface cracking of particles due to sudden cooling, difficulties in dissipating internal moisture and heat during the cooling process, and the resulting brittleness.
Parameter
Model | Output | Power | Cooling volume | Cooling time | Cooling material temperature |
SKLN-1.5 | 1-2 | 1.1+0.18+5.5 | 1.5 | ≥6-10 | ≤3-5 |
SKLN-2.5 | 2-3 | 2.2+0.18+11 | 2.5 | ≥6-10 | ≤3-5 |
SKLN-4 | 4-6 | 2.2+0.25+22 | 4 | ≥6-10 | ≤3-5 |
SKLN-6 | 7-10 | 3+0.25*2+37 | 6 | ≥6-10 | ≤3-5 |
SKLN-8 | 10-15 | 3+0.25*2+55 | 8 | ≥6-10 | ≤3-5 |
SKLN-10 | 15-20 | 3+0.25*2+75 | 10 | ≥6-10 | ≤3-5 |

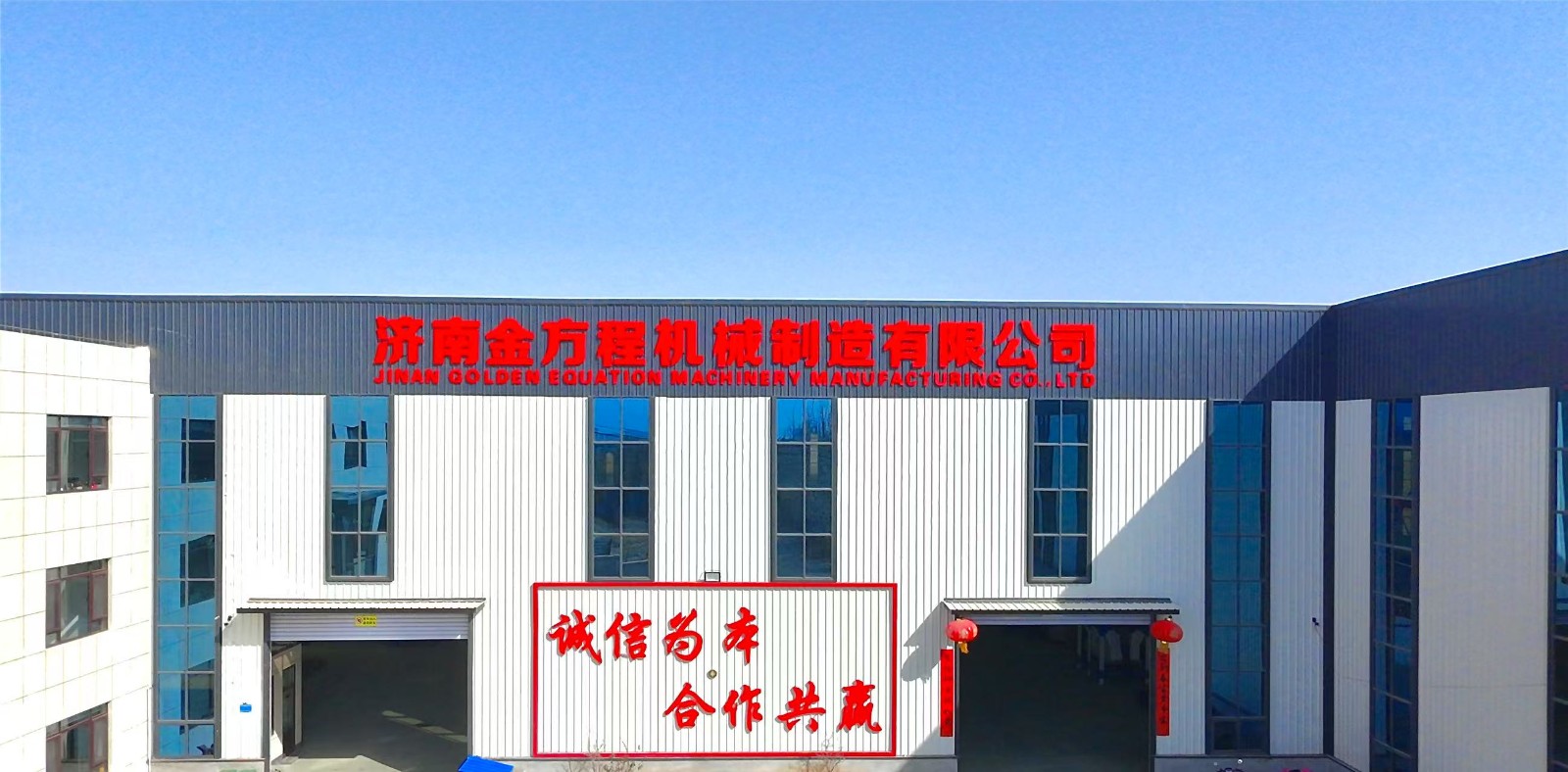

Company Profile
