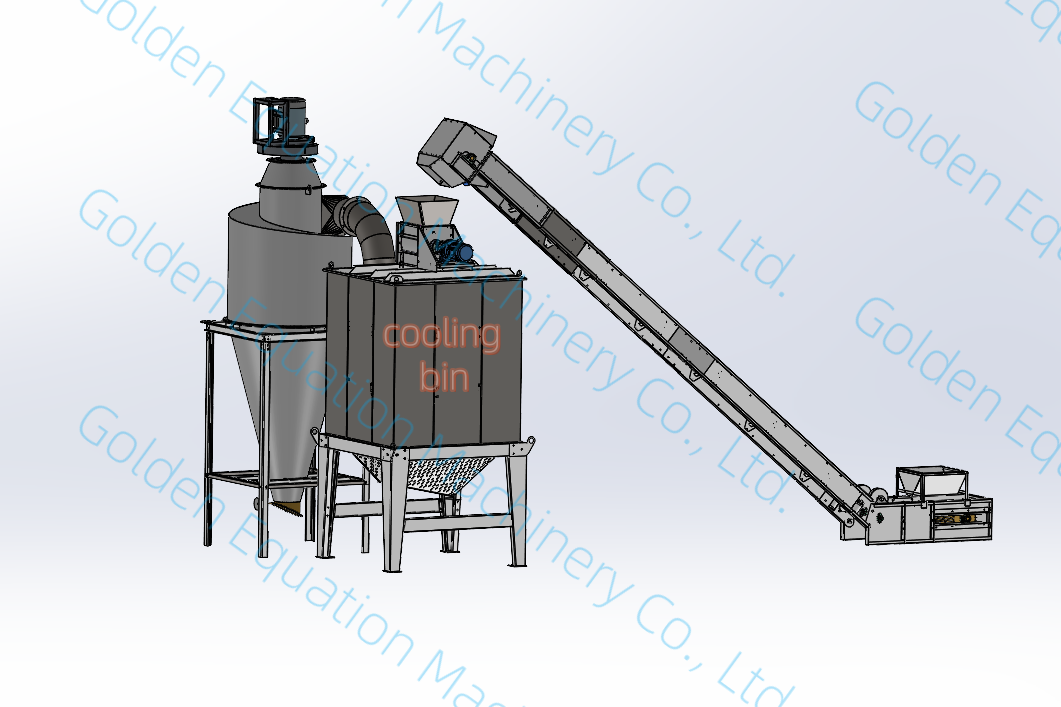

Cooler Counter

User - friendly Assembly
The machine adopts a modular design for installation.
This feature simplifies transportation and installation processes, enhancing convenience for users.
Stable and Smooth Operation
Thanks to its unique vibration - driven mechanism,
the machine ensures seamless and problem - free material discharge, delivering consistent performance.
Intelligent Automation
Equipped with a material level sensor,
the machine can conduct continuous and automated monitoring of the material level within the bin, enabling smart operation.
High - performance Cooling
By applying the counter - flow cooling principle,
the machine achieves uniform and thorough cooling of particles, ensuring optimal cooling efficiency.

Contact Now E-Mail Telephone WhatsApp

Product Details

The introduction of product

Component Composition
The counterflow cooler is made up of multiple parts, including the upper casing, intermediate bin, cooling net, vibrating screen, frame, observation window, dust bag, and fan. Each component plays a crucial role in its overall functionality.
Primary Function
This equipment serves the main purpose of cooling high - temperature particles right after granulation. By reducing the temperature and humidity of the particles, it makes the processes of transportation, storage, and safeguarding much more manageable.
Cooling Necessity
Particles coming out of the granulator can have a temperature as high as around 70 degrees. Such high - temperature particles are extremely fragile, easily broken, and tend to produce water vapor. However, once cooled, the particles' temperature gets close to the atmospheric temperature, making them suitable for direct packaging.
Role in Production Line
It is an indispensable part of large - scale production lines. Its function is to ensure that the pellets can smoothly move on to the next production stage, which is the packing section.
Advantages of the New Model
Compared with the old - fashioned cooling machines, the new counterflow cooler has significant improvements. Constructed from thick galvanized sheets, it has a high density, resists deformation and corrosion well, and thus has a longer lifespan.

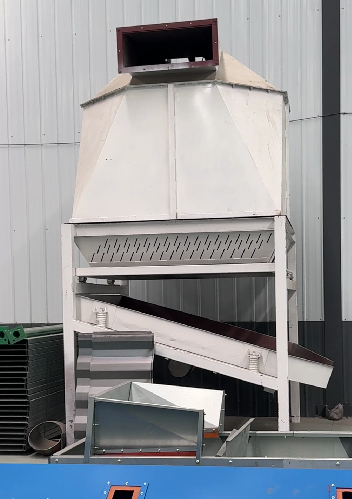

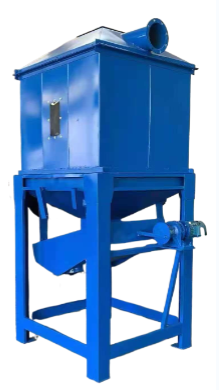

Counterflow Coolers

Product features

The machine has a unique cooling mechanism, the cooling wind and particles reverse movement, so that the material is gradually cooled from top to bottom, avoiding the general vertical cooler due to the sudden cooling caused by the particle surface cracking, the heart of the water and heat in the cooling time is difficult to disseminate as well as fragile and other shortcomings.

1. Counterflow cooler adopts modular structure type installation, which is easy to transport and install.

2. Counterflow cooler adopts unique vibration type mechanism to discharge materials smoothly.

3. Countercurrent cooler is set up with material leveler, which can monitor the position of materials in the silo in real time.

4.Countercurrent cooler uses countercurrent cooling principle to make the particles cool evenly and fully.

Parameter

Model	Output	Power	Cooling volume	Cooling time	Cooling material temperature
SKLN-1.5	1-2	1.1+0.18+5.5	1.5	≥6-10	≤3-5
SKLN-2.5	2-3	2.2+0.18+11	2.5	≥6-10	≤3-5
SKLN-4	4-6	2.2+0.25+22	4	≥6-10	≤3-5
SKLN-6	7-10	3+0.25*2+37	6	≥6-10	≤3-5
SKLN-8	10-15	3+0.25*2+55	8	≥6-10	≤3-5
SKLN-10	15-20	3+0.25*2+75	10	≥6-10	≤3-5
