Product Introduction

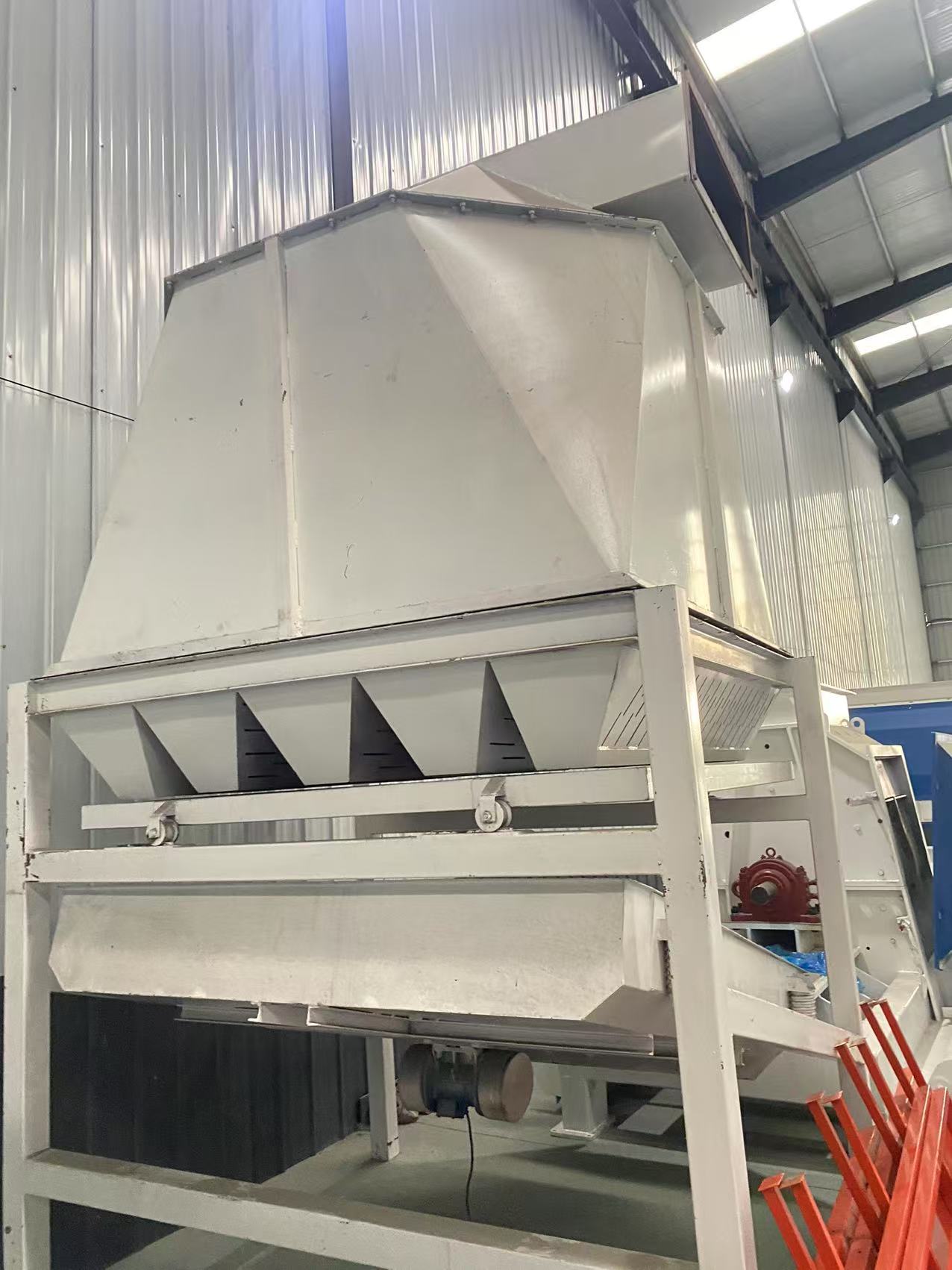

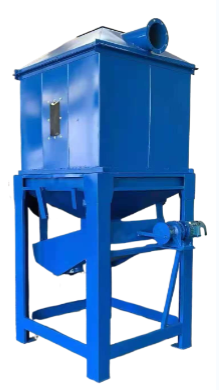

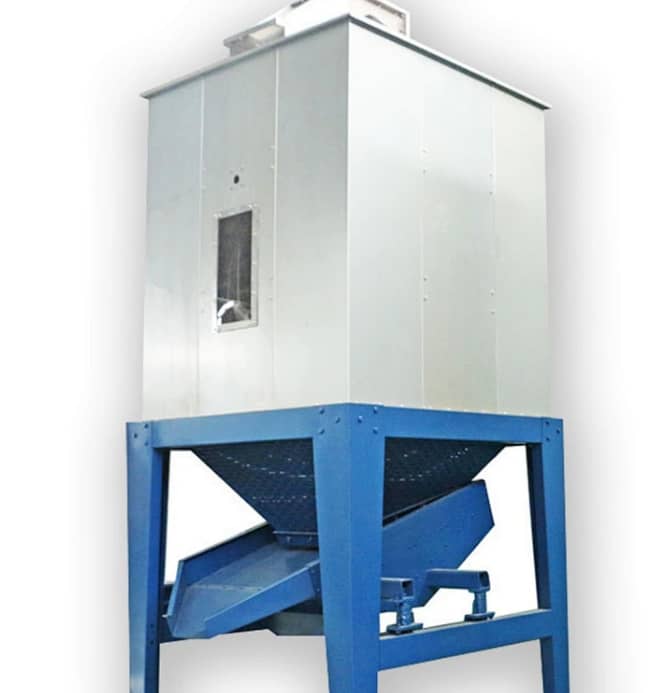

The counterflow cooler is composed of an upper casing, an intermediate bin, a cooling net, a vibrating screen, a frame, an observation window, a dust bag, a fan, and other components. This device is primarily employed for cooling high - temperature particles after the granulation process. Its purpose is to lower the temperature and humidity of the particles, thereby making it more convenient for transportation, storage, and safekeeping.
The temperature of the pellets emerging from the granulator can reach nearly 70 degrees Celsius. High - temperature particles are highly prone to breakage and generate water vapor. However, after cooling, the temperature of the particles approaches the ambient temperature, and they can be directly packaged. As a result, this cooler is an essential element in large - scale production lines, facilitating the transition of pellets to the next stage (the packing stage).
In comparison with the old - style cooling machines, the new counterflow cooler is constructed from thick galvanized sheets. It features high density, is less likely to deform or corrode, and has a longer service life.
Product features
The machine has a unique cooling mechanism, the cooling wind and particles reverse movement, so that the material is gradually cooled from top to bottom, avoiding the general vertical cooler due to the sudden cooling caused by the particle surface cracking, the heart of the water and heat in the cooling time is difficult to disseminate as well as fragile and other shortcomings.
1. Counterflow cooler adopts modular structure type installation, which is easy to transport and install.
2. Counterflow cooler adopts unique vibration type mechanism to discharge materials smoothly.
3. Countercurrent cooler is set up with material leveler, which can monitor the position of materials in the silo in real time.
4.Countercurrent cooler uses countercurrent cooling principle to make the particles cool evenly and fully.
Parameter
Model | Output | Power | Cooling volume | Cooling time | Cooling material temperature |
SKLN-1.5 | 1-2 | 1.1+0.18+5.5 | 1.5 | ≥6-10 | ≤3-5 |
SKLN-2.5 | 2-3 | 2.2+0.18+11 | 2.5 | ≥6-10 | ≤3-5 |
SKLN-4 | 4-6 | 2.2+0.25+22 | 4 | ≥6-10 | ≤3-5 |
SKLN-6 | 7-10 | 3+0.25*2+37 | 6 | ≥6-10 | ≤3-5 |
SKLN-8 | 10-15 | 3+0.25*2+55 | 8 | ≥6-10 | ≤3-5 |
SKLN-10 | 15-20 | 3+0.25*2+75 | 10 | ≥6-10 | ≤3-5 |
