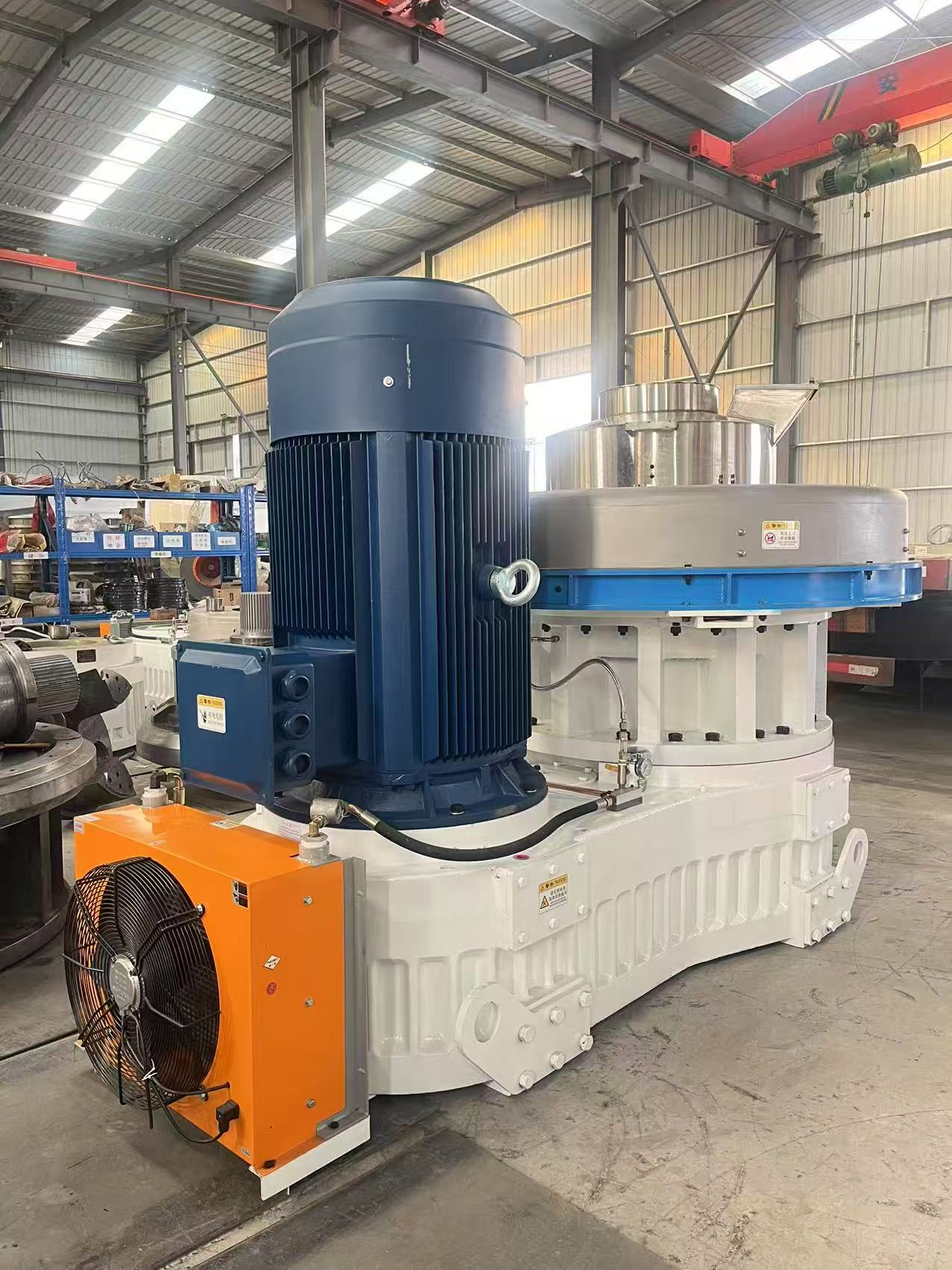

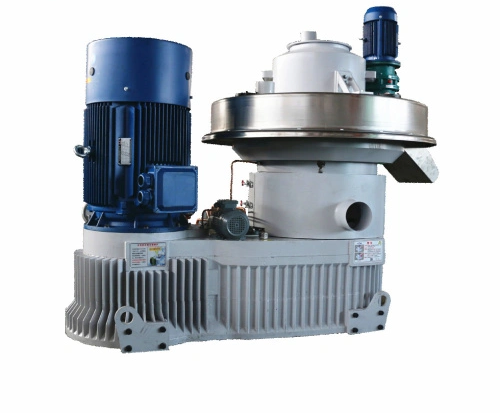

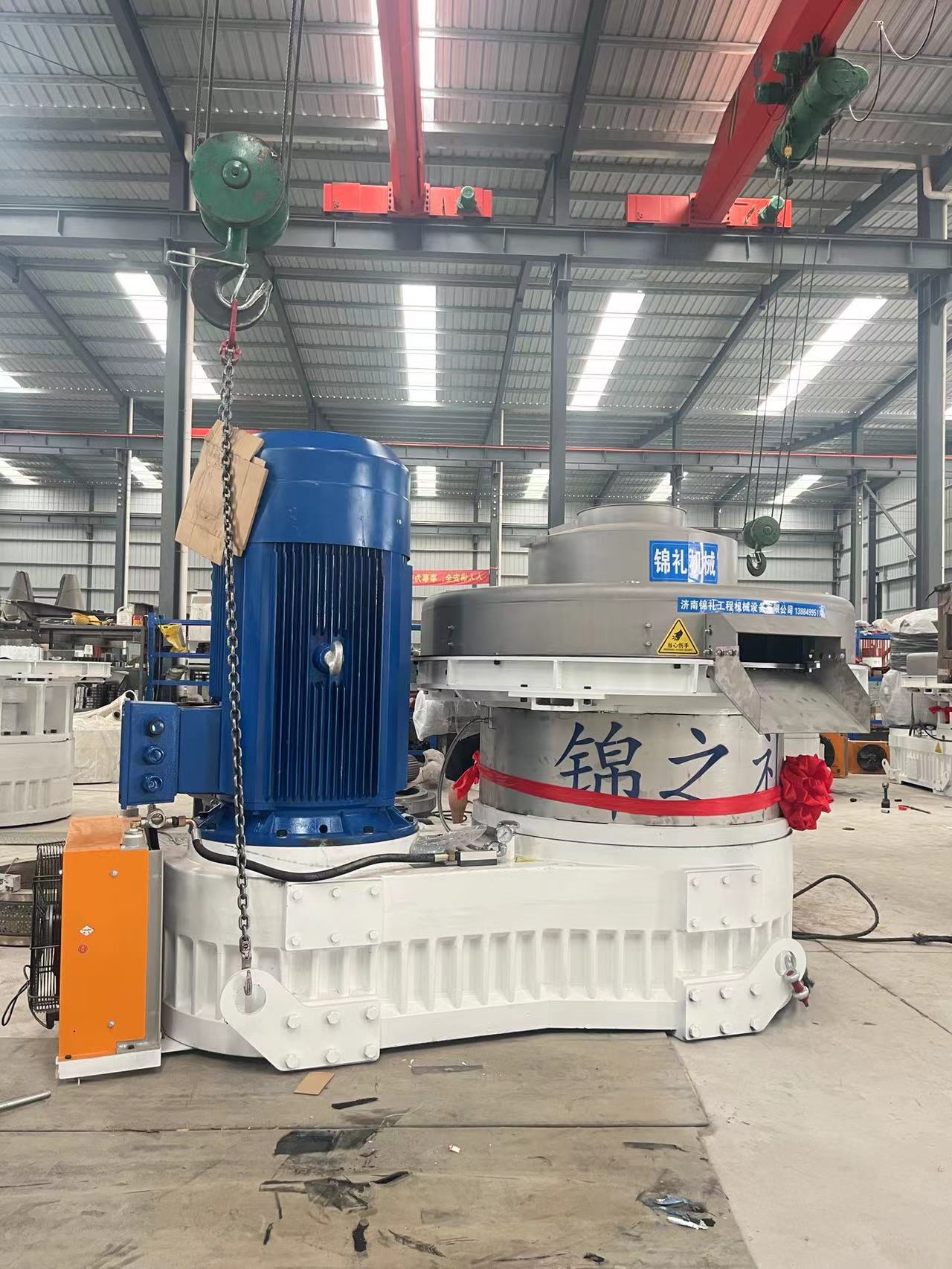

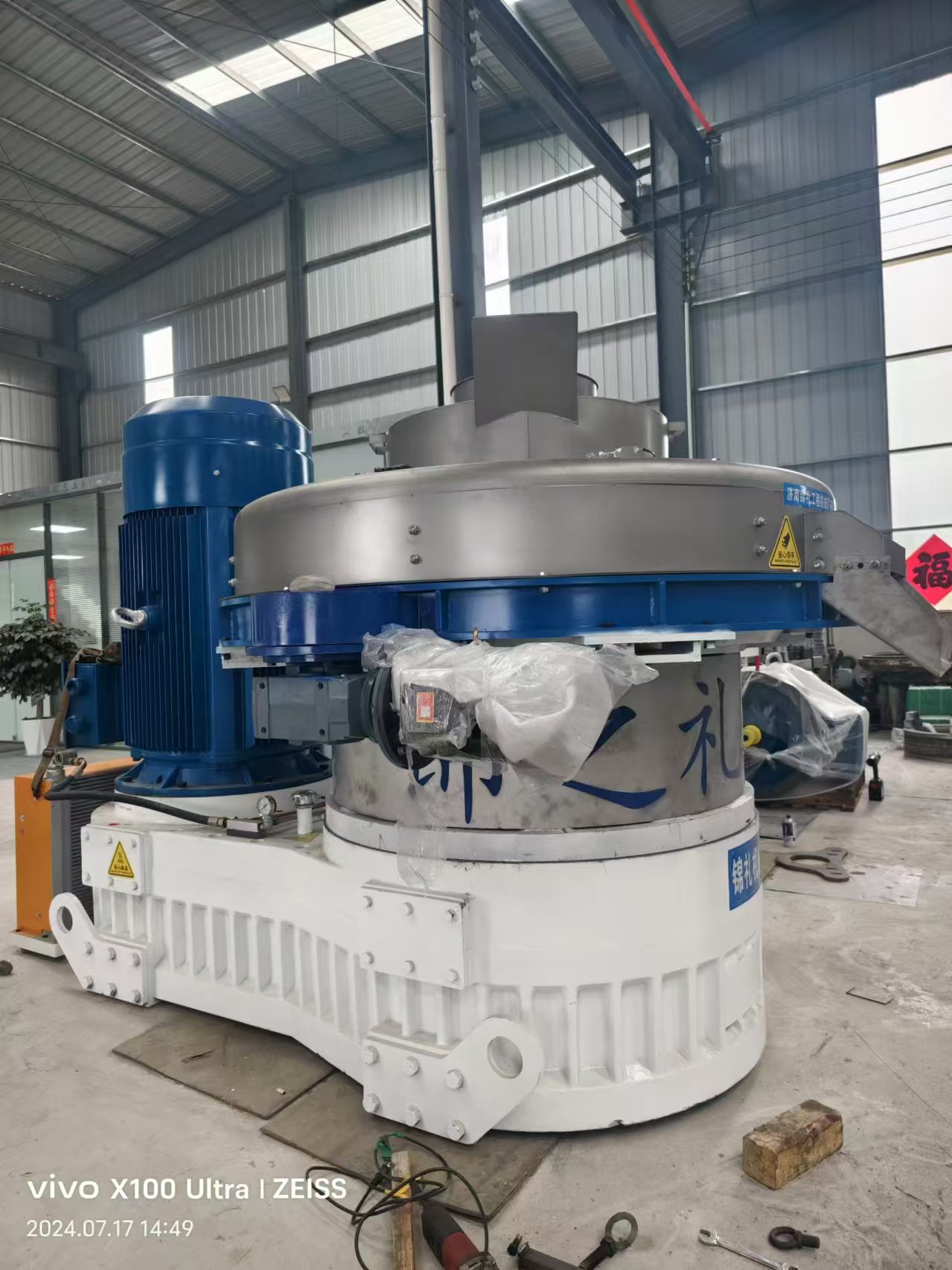

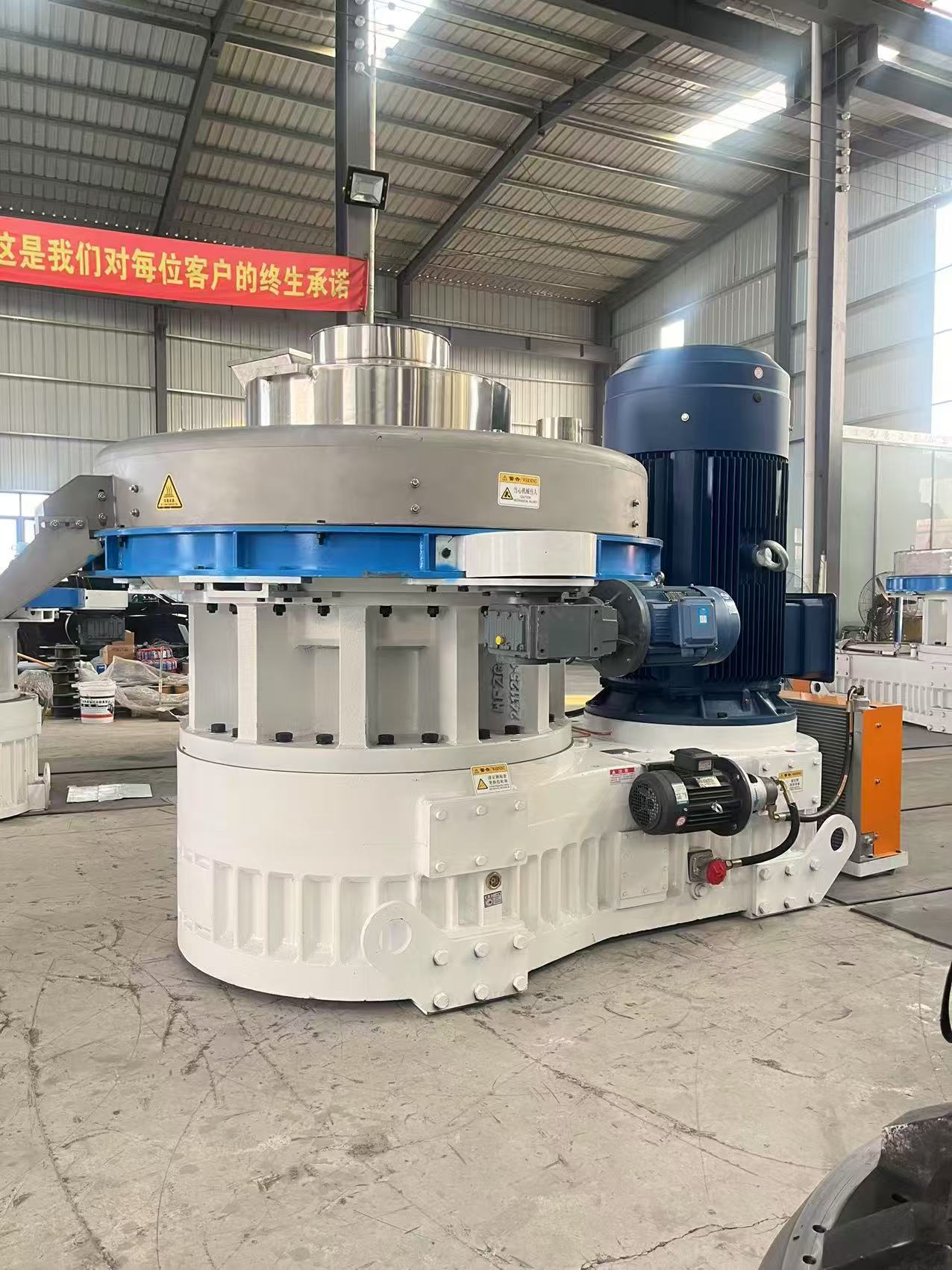

Cotton Stalk Pellet Machine
High Production Efficiency：The motor is directly connected to the reducer's gearbox, significantly increasing the kinetic energy conversion rate for enhanced productivity.
Pure Copper Motor
Conductivity：With low resistivity, it minimizes resistive losses, reducing long - term electricity costs.
Heat Dissipation：Excellent thermal conductivity enables rapid heat dissipation, extending the motor's service life.
Reliability：Boasting high mechanical strength and toughness, the windings remain intact even with frequent use, ensuring stable operation and fewer breakdowns.
Corrosion Resistance：More resistant to corrosion than other metals, it performs well in humid or mildly corrosive environments.
Precision Machining：The main machine housing, precisely cast from high - quality steel with consistent thickness and a compact design, is meticulously processed by a Swiss - imported CNC machining center, guaranteeing machining accuracy with zero errors.
Durability：The new toggle system, featuring externally - mounted rotary components, overcomes the issue of high - temperature steam corrosion. The mold, made of wear - resistant stainless steel and vacuum - furnace - quenched, has uniform hardness, resists breakage, and offers exceptional wear resistance.
Strength and Wear Resistance：A three - stage gear reducer is used to boost the load - bearing capacity. The press wheel adopts a super - wear - resistant alloy welding process, replacing the previous surface carburization treatment. This not only improves the press wheel's durability but also protects the mold at the same time.
Product features
Biomass pellet machines are commonly used granulation equipment in the biomass energy industry. They crush biomass raw materials such as branches and straws and then press them into rod - shaped pellets, serving as new - type fuel - forming machinery to replace coal.
Wood: pine, poplar, fir, branches, bark, wood chips, shavings, etc.
Straw: corn straw, wheat straw, rice straw, rice husks, peanut shells, cotton stalks, etc.
Waste materials include construction formwork, furniture off - cuts, wooden pallets, municipal solid waste, medicine residues, mushroom residues, sludge and so on.
Apart from the above - mentioned common biomass raw materials, our company has developed specialized pellet machines independently, which are designed specifically for activated carbon materials. If you have any requirements, please get in touch with the consultation hotline on our official website. We will send professional sales representatives immediately to offer you dedicated service.
Supply Ability & Additional Information
| Packaging： shipping by container | Place of Origin: China |
| Transportation: Ocean,Land | Port: Qingdao, Shanghai, etc. |
| Supply Ability: 50 set per month | Payment Type: L/C,T/T,D/P,Western Union |
| Incoterm: FOB,CFR,CIF,EXW | Package Type: shipping by container |
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |
Company Profile
The company's product range features wood pellet machines, straw pellet machines, biomass pellet machines, sludge briquetting machines, as well as drying equipment, including airflow and drum series. In addition, they provide cutting and crushing machinery, along with various auxiliary equipment like cooling systems, screening machines, packaging equipment, and conveyors, forming a comprehensive biomass pellet production line. The technical team offers tailored configuration and design solutions based on customer requirements and facility space.
