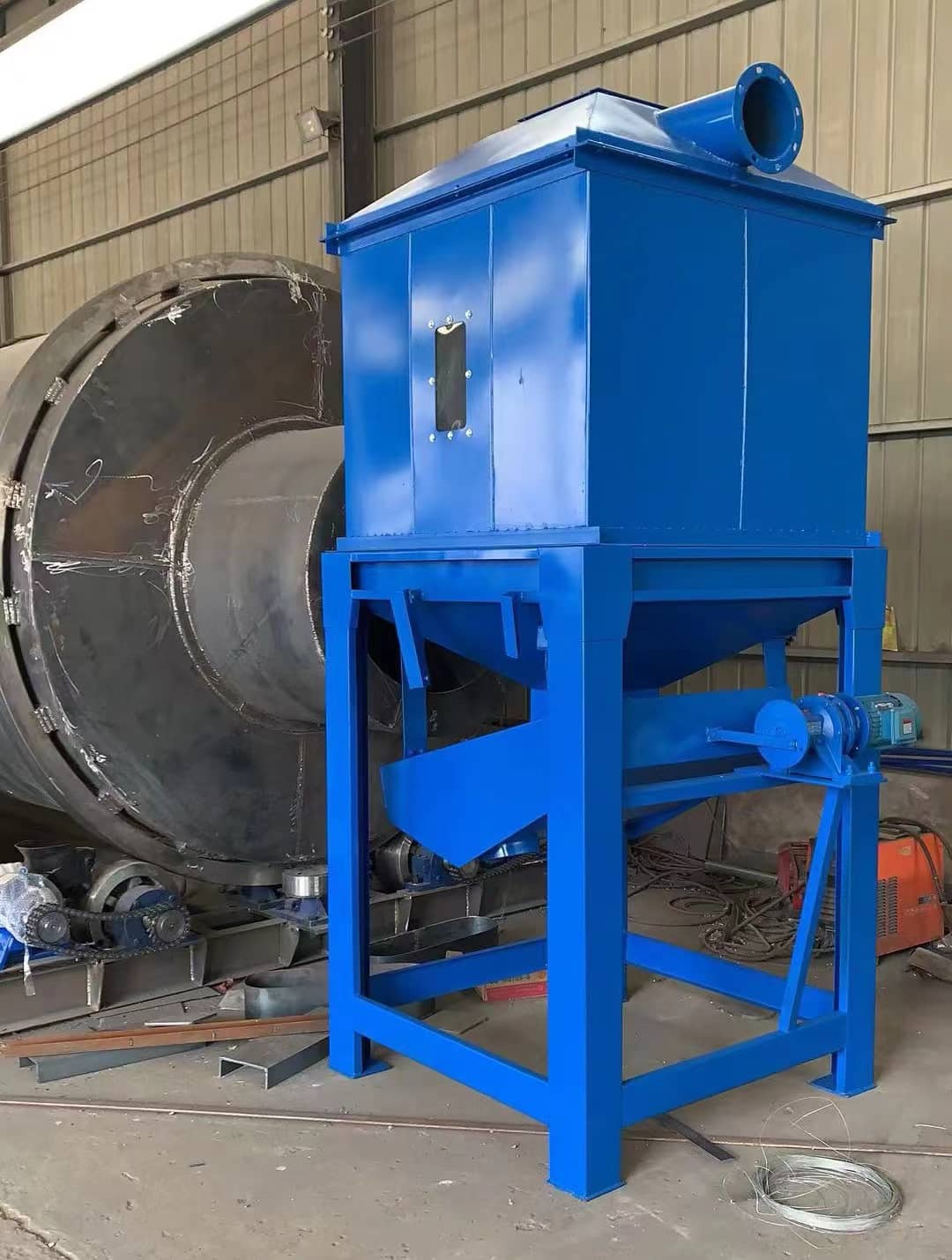

SKLN-4 Counterflow Coolers
Product Advantages
1.Easy Installation
With a modular structure design, it is convenient for transportation, allowing for quick and hassle - free installation, which brings great convenience to users.
2.Smooth Operation
The unique vibration - type discharging mechanism ensures efficient and smooth material discharge, enabling stable operation and reducing malfunctions.
3.High - level Automation
Equipped with an advanced material level indicator, it can monitor the material position in the silo in real - time, enhancing operational control and efficiency.
4.Excellent Cooling
By applying the counter - current cooling principle, it cools particles evenly and thoroughly, ensuring product quality and stable equipment operation.
The introduction of product
A counterflow cooler is made up of components like the upper casing, intermediate bin, cooling net, etc. Its main function is to cool high - temperature granules post - granulation, reducing their temperature and humidity for easier handling, storage, and transportation. Granules from the granulator can be around 70℃, prone to breaking and generating water vapor, while cooled granules reach ambient temperature and can be directly packed. Thus, it's essential in large - scale production lines, enabling granules to move to the packaging stage. The new model, constructed from thick galvanized sheet, offers higher density, better anti - deformation and anti - corrosion properties, and a longer lifespan compared to older coolers.
Product features
The machine has a unique cooling mechanism, the cooling wind and particles reverse movement, so that the material is gradually cooled from top to bottom, avoiding the general vertical cooler due to the sudden cooling caused by the particle surface cracking, the heart of the water and heat in the cooling time is difficult to disseminate as well as fragile and other shortcomings.
1. Counterflow cooler adopts modular structure type installation, which is easy to transport and install.
2. Counterflow cooler adopts unique vibration type mechanism to discharge materials smoothly.
3. Countercurrent cooler is set up with material leveler, which can monitor the position of materials in the silo in real time.
4.Countercurrent cooler uses countercurrent cooling principle to make the particles cool evenly and fully.
Parameter
Model | Output | Power | Cooling volume | Cooling time | Cooling material temperature |
SKLN-1.5 | 1-2 | 1.1+0.18+5.5 | 1.5 | ≥6-10 | ≤3-5 |
SKLN-2.5 | 2-3 | 2.2+0.18+11 | 2.5 | ≥6-10 | ≤3-5 |
SKLN-4 | 4-6 | 2.2+0.25+22 | 4 | ≥6-10 | ≤3-5 |
SKLN-6 | 7-10 | 3+0.25*2+37 | 6 | ≥6-10 | ≤3-5 |
SKLN-8 | 10-15 | 3+0.25*2+55 | 8 | ≥6-10 | ≤3-5 |
SKLN-10 | 15-20 | 3+0.25*2+75 | 10 | ≥6-10 | ≤3-5 |
