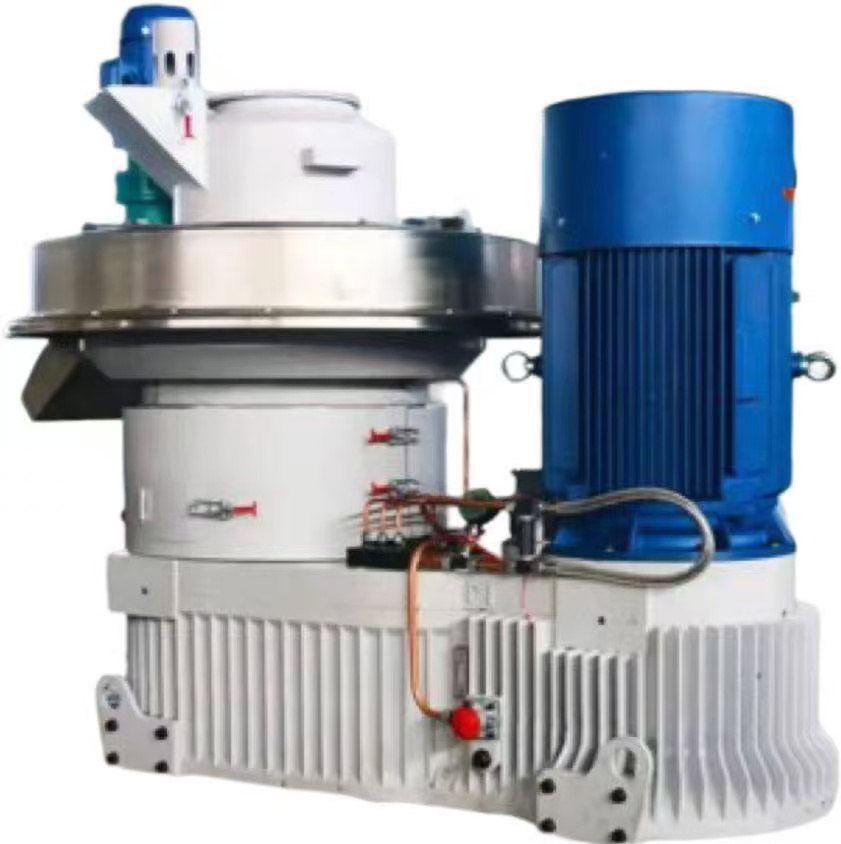

Sawdust Pellet Machine
High production efficiency: The motor is directly linked to the gearbox of the reducer, which boosts the kinetic energy conversion rate.
Long service life: A three - stage gear reducer is employed to enhance the load - bearing capacity. The press wheel uses the super wear - resistant alloy welding process, substituting the previous surface carburisation treatment. This simultaneously provides protection for the mould.
Smooth operation: The gearbox of the reducer is equipped with a lubrication and cooling system, enabling the machine to perform lubricating oil cooling without the need to stop operation.
Low damage probability: With a new toggle system and external rotary components, the problem that the toggle system is easily corroded by high - temperature steam has been completely resolved. Made of wear - resistant stainless - steel material and processed by vacuum furnace quenching, the mould has uniform hardness, is free from breakage, and has super wear - resistance.
Product features
1.The motor is directly connected to the reducer's gearbox, which enhances the kinetic energy conversion rate and boosts overall production efficiency.
2.The three-stage gear reducer increases load capacity, while the press wheel uses a super wear-resistant alloy welding process instead of the previous surface carburization treatment. This design extends the press wheel's service life and offers better protection for the mold.
3.The gearbox features a built-in lubrication and cooling system, allowing for effective cooling of the lubricating oil without needing to stop the machine, ensuring smooth operation.
4.The new toggle system, with external rotary components, addresses the issue of high-temperature steam erosion, ensuring greater durability. The molds are made from wear-resistant stainless steel and undergo vacuum furnace quenching, resulting in uniform hardness and exceptional wear resistance, with no breakage.
Supply Ability & Additional Information
Packaging： shipping by container
Productivity: 2.5-3.5 T/H
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 50 set per month
Port: Qingdao, Shanghai, etc.
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,EXW
Packaging & Delivery
Selling Units: Set/Sets
Package Type: shipping by container
Product Characteristics
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |

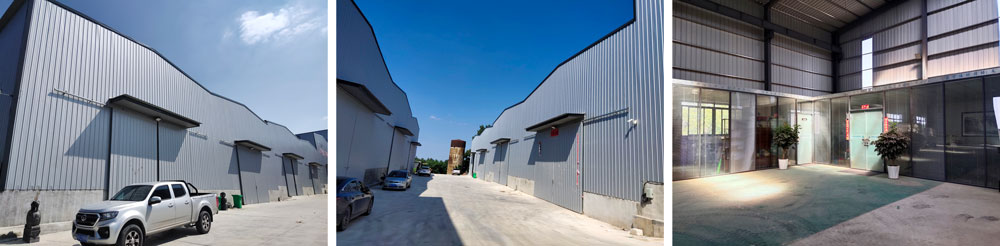

Company Overview
The company's product portfolio encompasses wood pellet machines, straw pellet machines, biomass pellet machines, and sludge briquetting machines. It also includes drying equipment such as the airflow and drum series. Moreover, it supplies cutting and crushing machinery, along with a variety of auxiliary equipment like cooling systems, screening machines, packaging machinery, and conveyors, thus constituting a complete biomass pellet production line. The technical team formulates customized configuration and design schemes according to customers' needs and the available space of their facilities.
