Industrial Drum Chipper
1.Robust and Stable Structure: Boasts a highly stable structural design, ensuring reliable operation while enabling high production output at a remarkably low processing cost.
2.Generous Feed Port Dimensions: Features a large-sized feed port, which not only facilitates the smooth entry of materials but also significantly boosts production capacity, making the feeding process more efficient and seamless.
3.Adjustable Rotor Blade Quantity: The number of rotor blades can be flexibly adjusted according to different processing needs. This feature guarantees that the materials are crushed evenly, resulting in a consistent and high-quality end product.
4.Broad Material Adaptability: Exhibits excellent adaptability to a diverse range of materials. It is not restricted by the moisture content of the materials, allowing for the processing of various substances with different humidity levels without affecting performance.

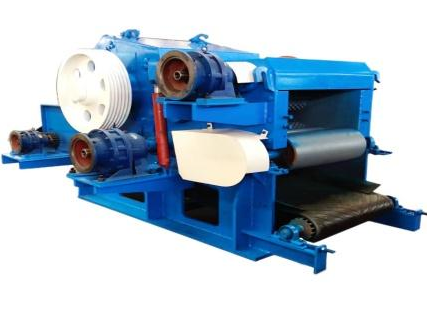

Drum Chipper Product Introduction
Scope of Application
Drum chipper series products are high - performance cutting tools applied across multiple industries. In pulp and paper, they process wood into flaky materials for paper - making. For wood - based panels, they provide precisely cut raw materials. In biomass energy, they size biomass to boost conversion and combustion. In fuel boilers, the processed materials are used as fuels.
These chippers handle diverse raw materials. Wood types like logs, bamboo, branches, bark, and residues are processable. Non - wood materials such as sugar cane, reeds, and straw can also be utilized. The products are used in biomass power plants, pellet plants, silicon smelters, boiler - using enterprises, paper mills, and composite wood board factories.
Key Points of Daily Maintenance and Functions
The drum chipper has a user - friendly structure for easy disassembly and assembly, simplifying maintenance. Maintenance tasks include regularly checking and replacing flying knives on the knife roller, monitoring and replacing hydraulic oil, and cleaning the conveyor belt. These steps ensure long - term stable operation, maximizing the equipment's value for the enterprise.
Product Details
FD216 | FD218 | FD2111 | FD2113 |
Admission method: belt | Admission method: belt | Admission method: belt | Admission method: belt |
Main power: 55KW | Main power: 110KW | Main power: 160KW | Main power::200-220KW |
Feeding motor: 3 + 4KW | Feeding motor:4+5.5KW | Feeding motor:5.5+7.5KW | Feeding motor:5.5+7.5KW |
Discharge motor: 2.2 + 4KW | Discharge motor:2.2+4KW | Discharge motor:4+5.5KW | Discharge motor:4+5.5KW |
Knife roller form: 2-5 flying knives | Knife roller form:2-5 flying knives | Knife roller form: flying knives | Knife roller form: flying knives |
Discharge: 10-12 meters | Discharge: 10-13 meters | Discharge: 10-14 meters | Discharge: 10-15 meters |
Discharge particle size: 3-5cm | Discharge particle size: 3-6cm | Discharge particle size: 3-7cm | Discharge particle size: 3-8cm |
Output: 6-8T/H | Output:8-10T/H | Output:15-18T/H | Output:18-22T/H |
Pre - sales Service
24/7/365 Service Consultation: We offer round - the - clock service consultation, enabling customers to inquire about issues at any time.
Specialized Testing of Your Raw Materials and Adoption of the Most Suitable Solutions: Based on the characteristics of customers' raw materials, we customize appropriate solutions.
Custom - made Efficient Technical Solutions: We create exclusive technical solutions according to customers' specific requirements.
In - sales Service
Standardized Precision of Production Orders in Eight Major Departments: Each major department follows a standardized process when handling production orders to ensure precision.
Combination of Idle Machine Testing and Material - loaded Machine Testing - Stringent Quality Inspection: Through these two testing methods, we strictly control product quality.
Visualization of the Entire Production Process for Easy Monitoring of Production Progress: With the help of technical means, customers can keep track of production progress in real - time.
After - sales Service
365 - day - a - year Service Consultation: We still provide year - round consultation services in the after - sales stage.
Our After - sales Engineers are Available for On - site Maintenance at Any Time: Our after - sales engineers respond promptly to ensure equipment maintenance.
We Will Regularly Follow up with Customers to Ensure the Normal Operation of Production Lines: Through regular follow - up, we take the initiative to understand customers' usage and ensure the normal operation of equipment.
We Provide Spare Parts for All Equipment: This provides convenience for customers to repair and replace parts of their equipment.
Company Profile
Our company adheres to the principle that quality and efficiency are the fundamental elements for an enterprise to gain a foothold, while service and quality are the driving forces behind an enterprise's advancement. Our product range encompasses wood chip pellet machines, straw pellet machines, biomass pellet machines, sludge briquetting machines, air flow and drum - type drying equipment in series. Additionally, we offer cutting and crushing series equipment, along with a complete set of biomass pellet production line equipment, including other supplementary cooling, screening, packaging, and conveying equipment. Our company's technical experts will tailor - make and design the equipment in line with the diverse requirements of customers and the actual layout of their factory premises.
