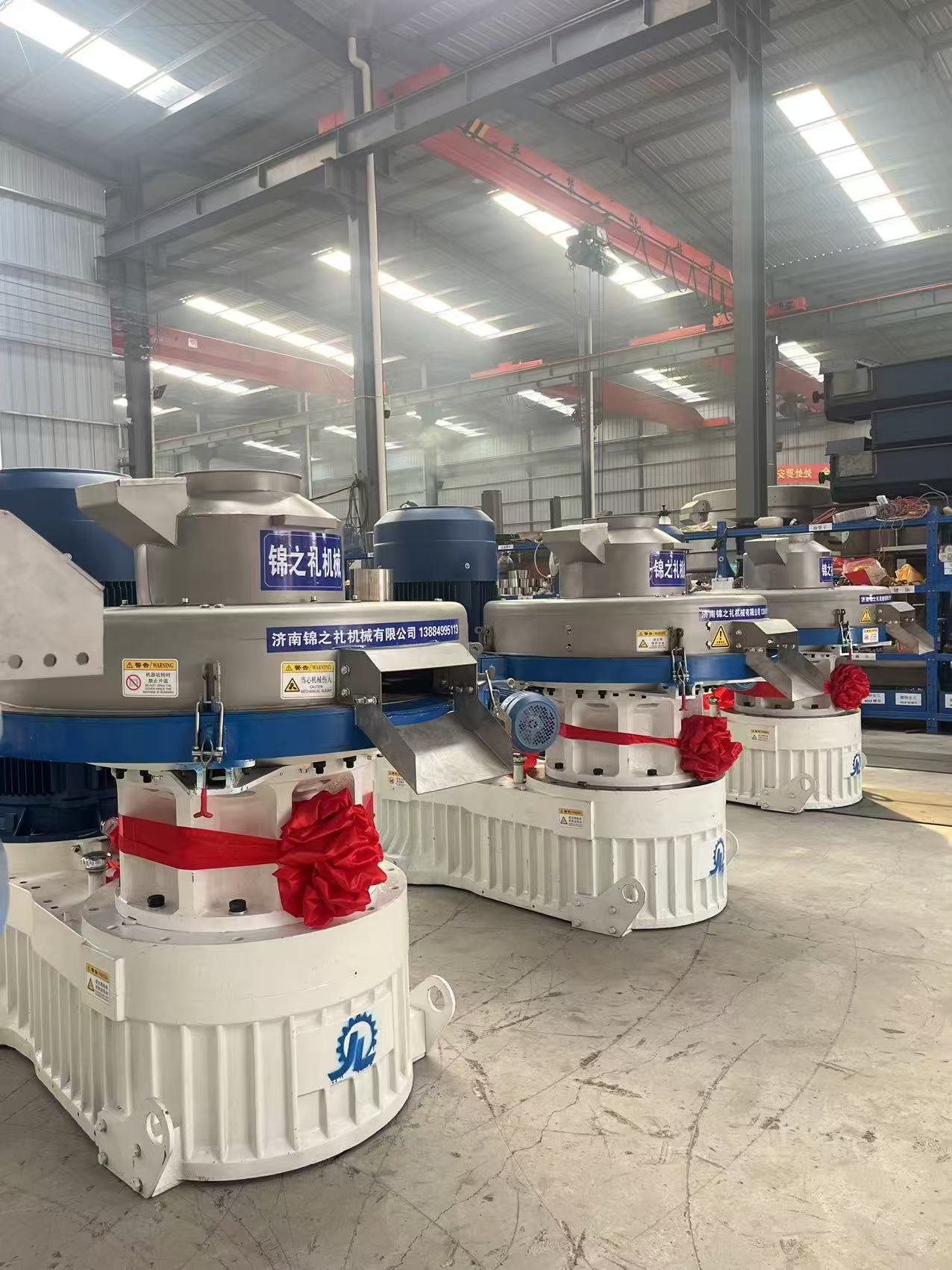

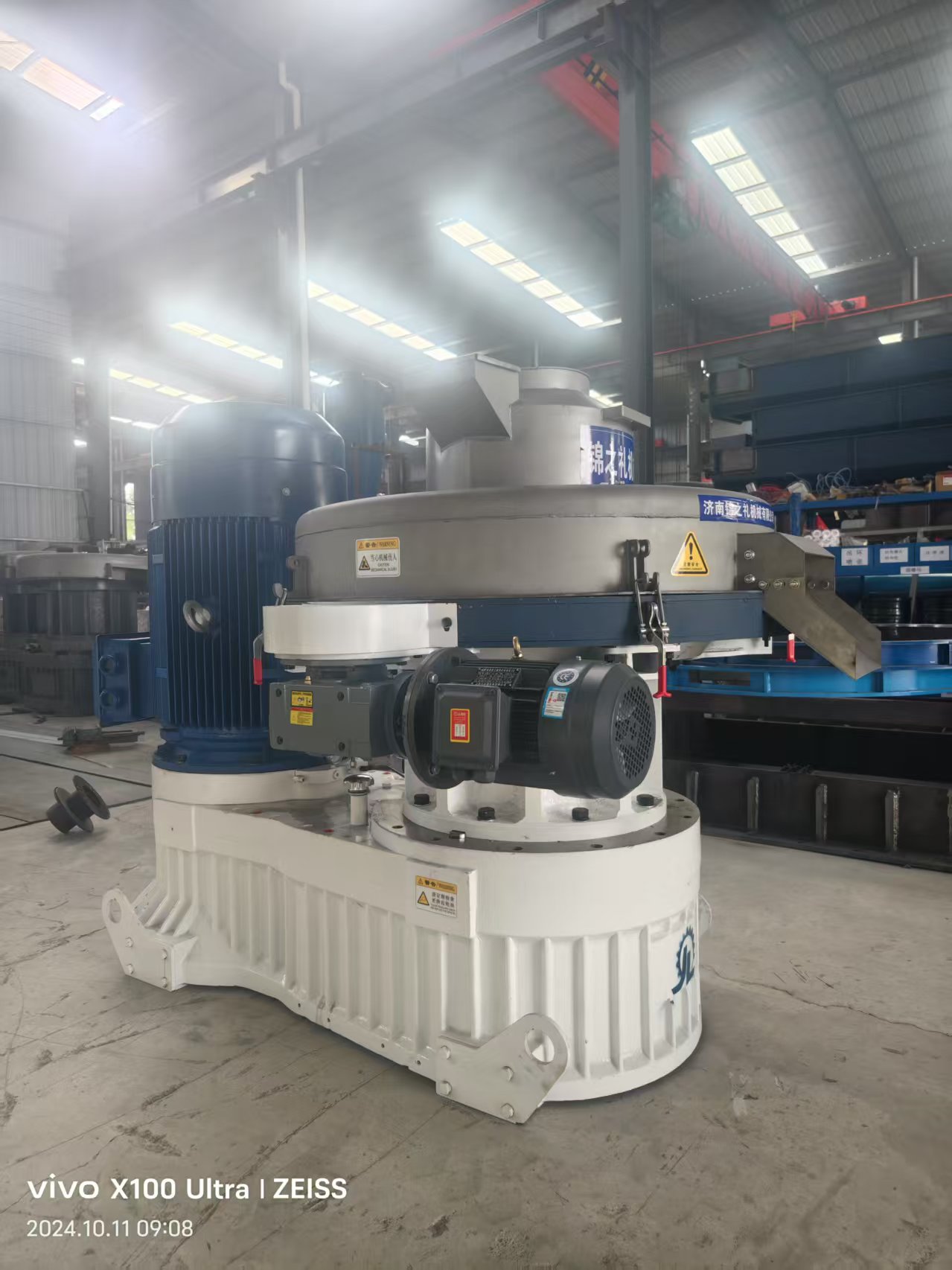

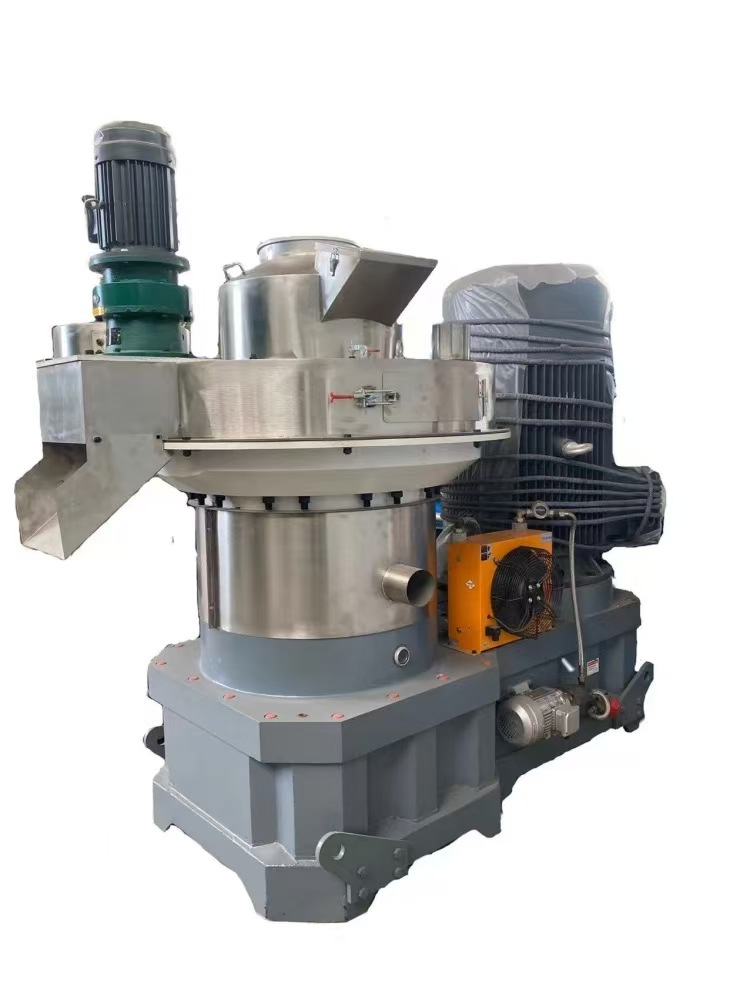

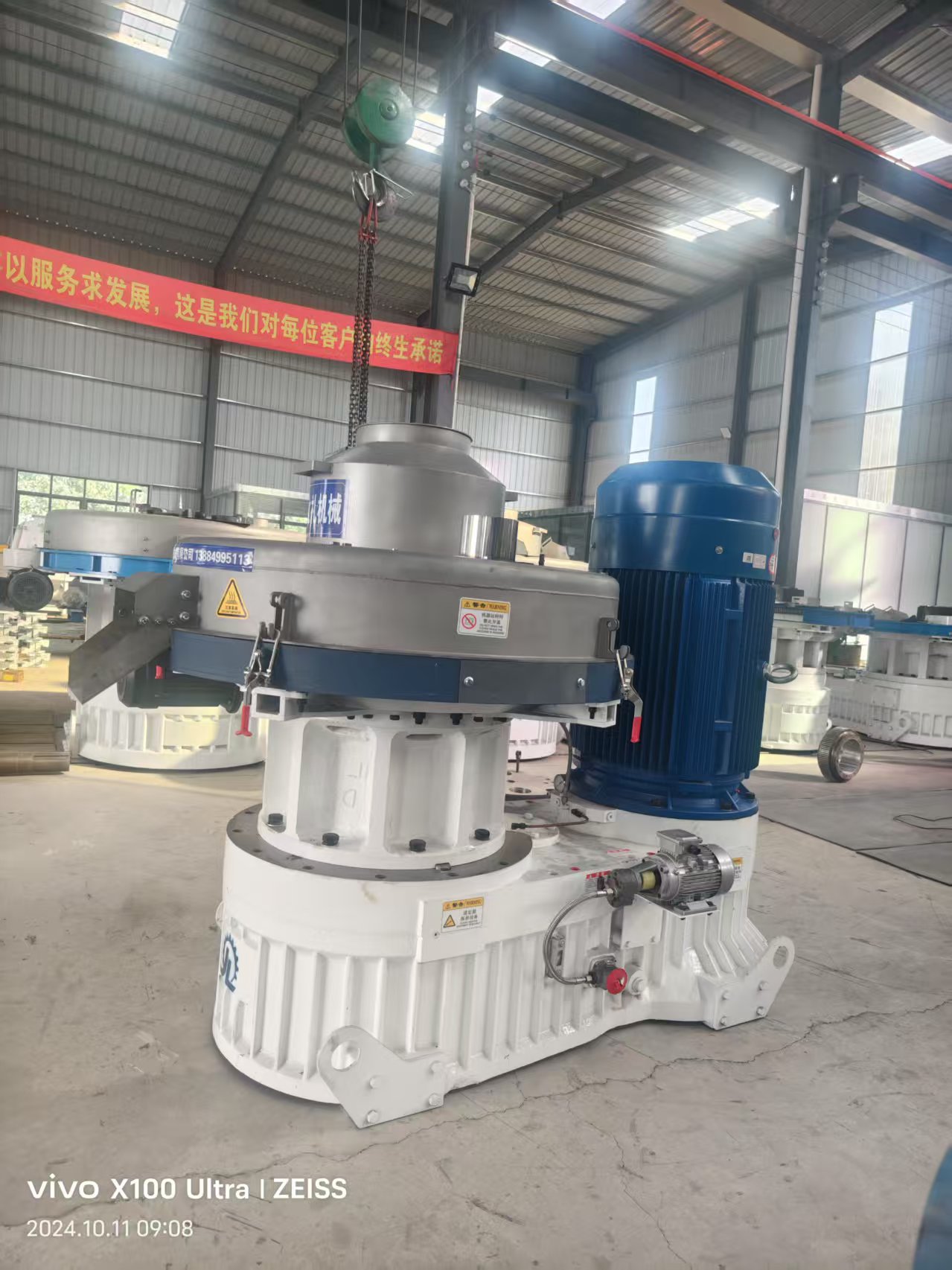

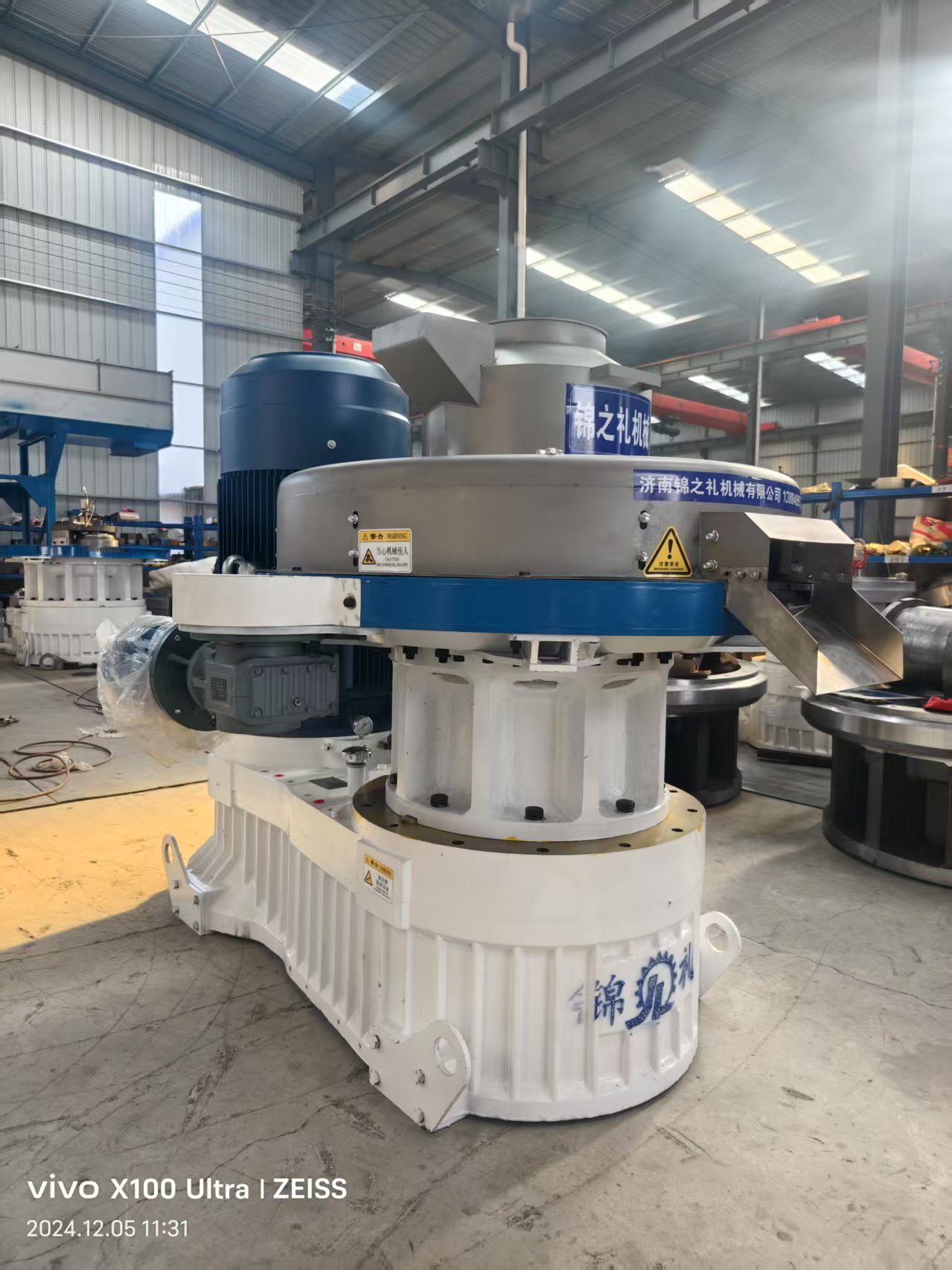

Straw Pellet Machine
1. High production efficiency: the motor is directly connected to the gearbox of the reducer, increasing the kinetic energy conversion rate.
2. Long service life: the three-stage gear reducer is adopted to increase the load capacity, and the press wheel adopts the super wear-resistant alloy welding process, replacing the past surface carburisation treatment, and at the same time realising the protection of the mould.
3. Smooth operation: the gearbox of the reducer comes with a lubrication and cooling system, the machine can be achieved without stopping the lubricating oil cooling.
4. Not easy to be damaged: new toggle system, rotary components external, completely solved the toggle system is easy to be eroded by high-temperature steam problem. Wear-resistant stainless steel material, vacuum furnace quenching, mould hardness uniformity, no breakage, super wear-resistant.
Product features
1.The motor is directly connected to the reducer's gearbox, which enhances the kinetic energy conversion rate and boosts overall production efficiency.
2.The three-stage gear reducer increases load capacity, while the press wheel uses a super wear-resistant alloy welding process instead of the previous surface carburization treatment. This design extends the press wheel's service life and offers better protection for the mold.
3.The gearbox features a built-in lubrication and cooling system, allowing for effective cooling of the lubricating oil without needing to stop the machine, ensuring smooth operation.
4.The new toggle system, with external rotary components, addresses the issue of high-temperature steam erosion, ensuring greater durability. The molds are made from wear-resistant stainless steel and undergo vacuum furnace quenching, resulting in uniform hardness and exceptional wear resistance, with no breakage.
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
| JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |

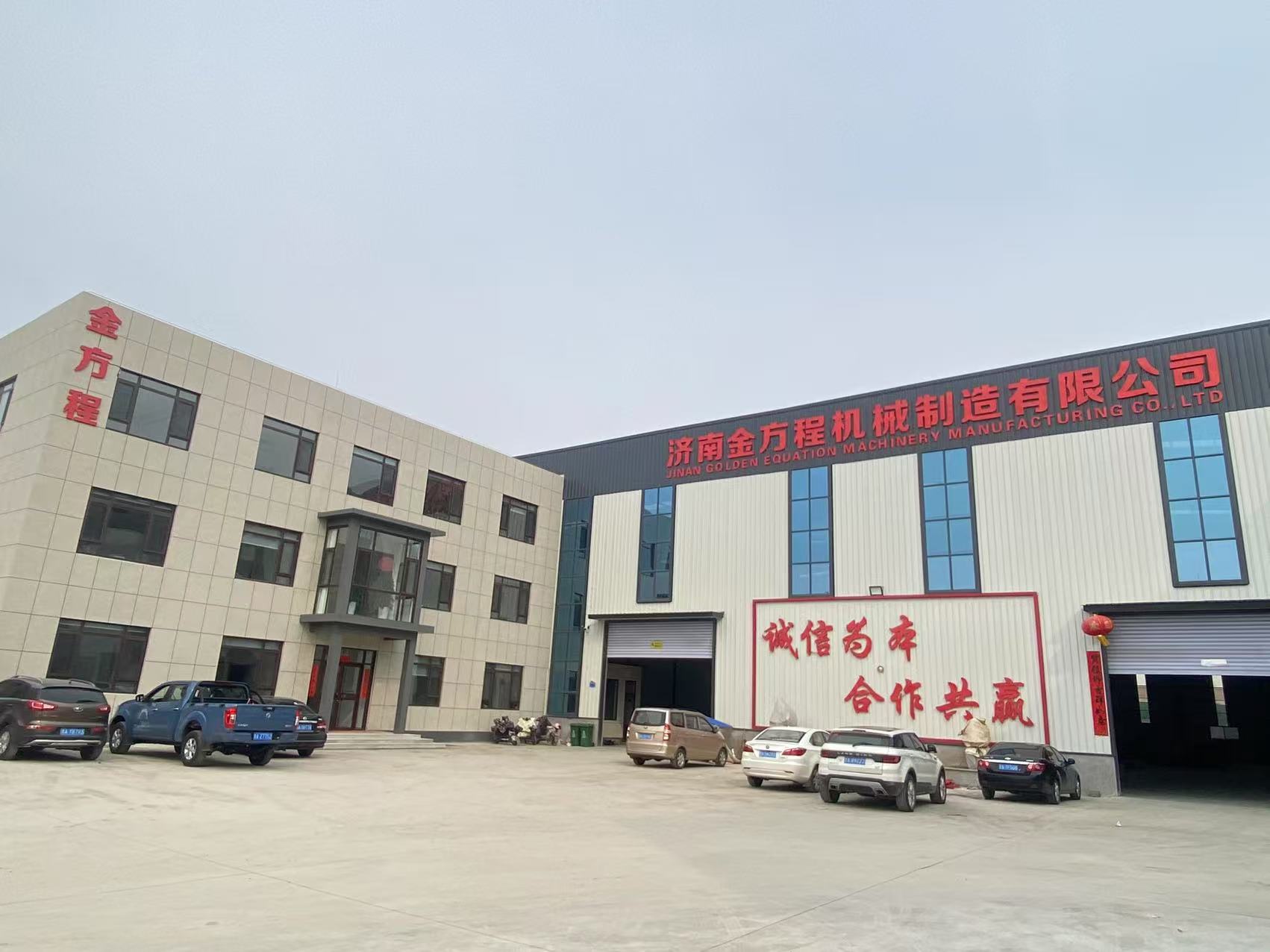

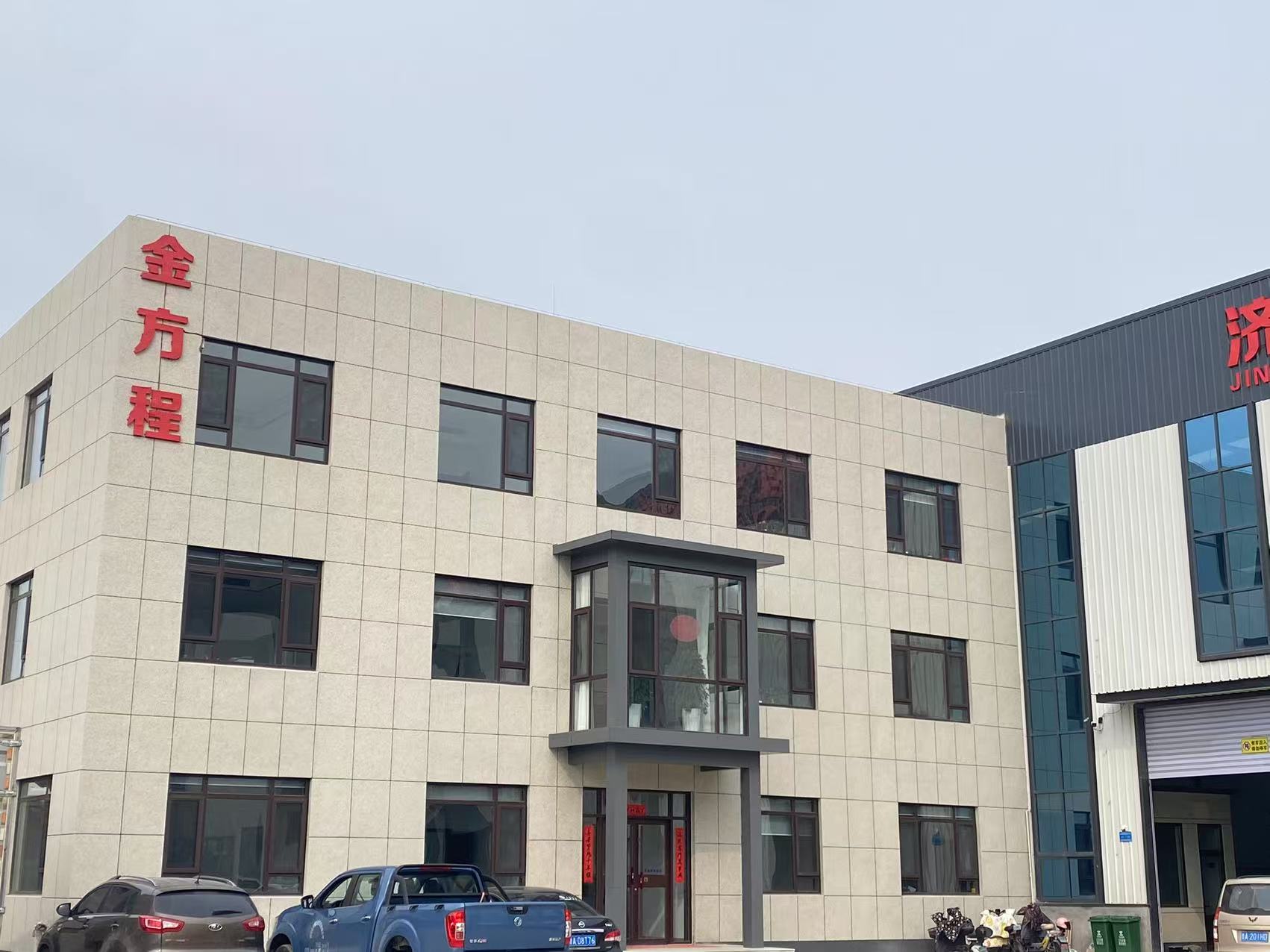

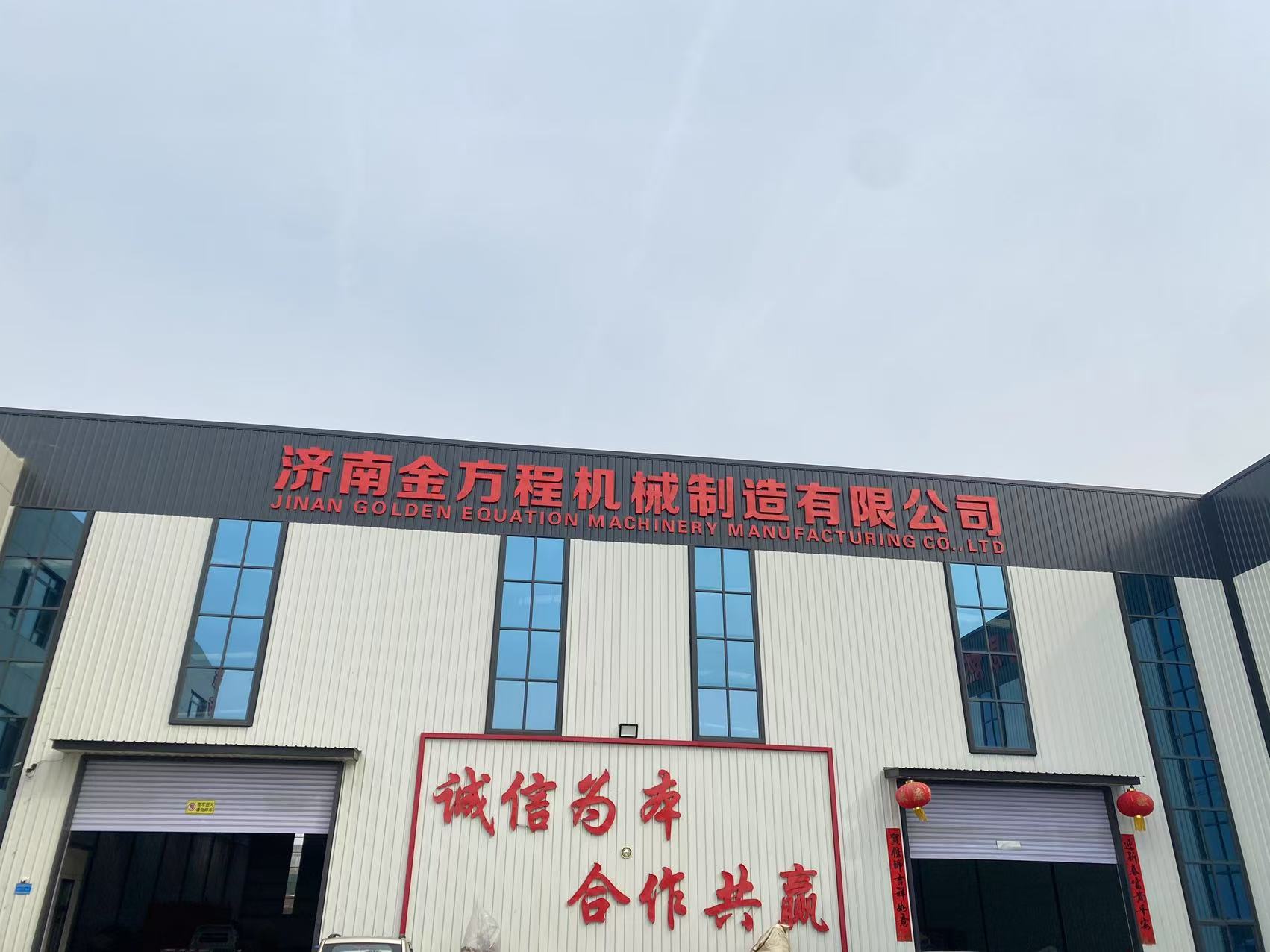

Company Profile
The product lineup includes wood pellet machines, straw pellet machines, biomass pellet machines, sludge briquetting machines, and drying equipment like airflow and drum series. Additionally, the company offers cutting and crushing equipment, along with various supporting machinery such as cooling systems, screening machines, packaging equipment, and conveying systems, all essential components for a complete biomass pellet production line. The technical team customizes configurations and designs based on the specific needs of customers and the layout of their facilities.
