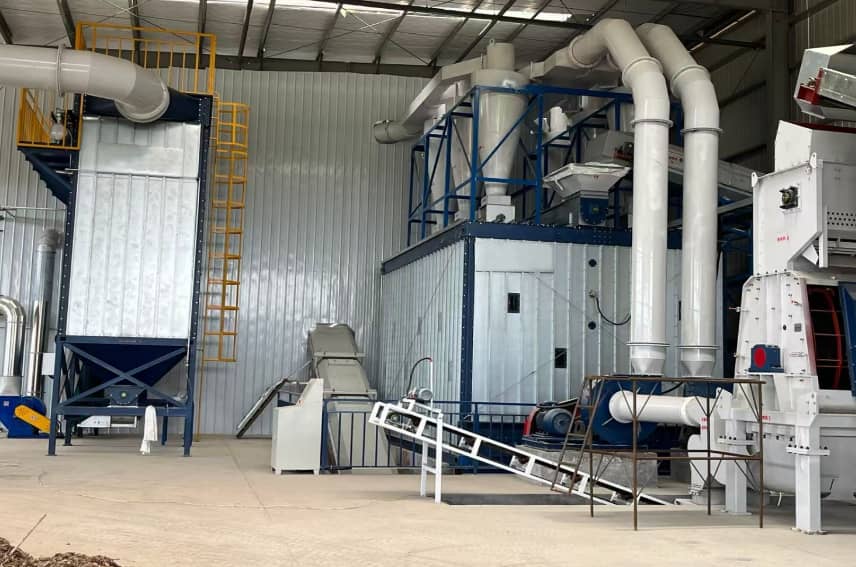

Hydraulic Storage Bin

Innovative Structural Design：The hydraulic silo features a split modular structure. After disassembly, its smaller size and more evenly distributed weight significantly reduce transportation difficulties. Meanwhile, the modular design enables quick on - site assembly, making the installation process more efficient and convenient, thus saving both time and labor costs.
Precision Manufacturing Processes：All modules are processed using laser cutting and stamping techniques. These methods ensure extremely accurate cutting with minimal dimensional errors, guaranteeing a high degree of fit between modules. This not only enhances the manufacturing precision of the equipment but also provides a strong guarantee for the smooth progress of subsequent installation.
High - quality Materials and Craftsmanship：The main frame is formed by bending galvanized sheets. Compared with the traditional iron plate welding process, it has significantly enhanced structural strength. The galvanized material offers excellent corrosion resistance, effectively extending the service life of the equipment and ensuring long - term stable operation.

Contact Now E-Mail Telephone WhatsApp

Product Details

Hydraulic Bunker Product Introduction

Modular Structure
The Hydraulic Bunker uses a split modular design, which greatly simplifies transportation and installation while demonstrating advanced engineering. Each module is laser - cut and punched, ensuring high manufacturing precision and a smooth installation process.
Robust Main Frame
The main frame of the Hydraulic Bunker is made from galvanized sheets via a bending process. This method provides much greater structural strength compared to traditional iron - plate welding. The galvanized material also offers excellent corrosion resistance, enhancing durability and extending the equipment's lifespan.

Integrated System
The Hydraulic Bunker is a fully integrated system, consisting of a gantry, sliding main beam, movable and fixed material - dialing wings, hydraulic cylinders, a hydraulic station, a discharge screw conveyor, and the bunker body.
Sealed Storage Advantages
Thanks to its sealed design, the Hydraulic Bunker overcomes problems of open - air storage. It reduces dust - related environmental pollution and operational interference, and minimizes the need for forklifts and manual handling, leading to significant cost savings.
Safety Feature
An explosion - proof vent is installed on the bunker roof. This key safety component effectively reduces the risk of dust explosions, ensuring safe operation.

Hydraulic Bunker Product Parameters
Volume Range （m³）	Specification	Overall Dimensions (m)	Total Volume (m³）	Power （kw）	Output	Customer - supplied Embedded Materials
<100	One - station Two - cylinder	2.5x6x3.58	53	7.5	1-3T	200*200Hsteel	Iron Plate Dimensions:	Ground Screw Bolt Specification
	One - station Two - cylinder	2.5x6x2.58	38	7.5		42m	3m	Φ20*220
	One - station Two - cylinder	2.5x6x4.74	71	7.5			2*20mm thick
100~200	Two - stations Four - cylinder	5x8x2.58	103	11*2	4-10T
	Two - stations Four - cylinder	5x8x3.58	143	11*2		70m	3m	Φ20*220
	Two - stations Four - cylinder	5x8x4.74	189	11*2			2*20mm thick
200~300	Two - stations Four - cylinder	5x8x5.74	229	11*2
Remarks: The above specifications are the parameters of the hydraulic warehouse, excluding the customer's own steel frame and foundation embedded parts, excluding the dragon

Mining Industry：The Hydraulic Bunker stores coal, iron ore, etc. in a sealed way, reducing dust pollution and miner health risks. Its screw conveyor - based discharging system efficiently transfers minerals for further processing.
Power Plants：It offers reliable coal storage, protecting coal from the elements and controlling discharge precisely to optimize boiler combustion and power - generation efficiency.
Agricultural Granaries：Provides a dust - free and pest - resistant space for grains. Its design enables easy loading and unloading, facilitating efficient agricultural product management.
Construction Material Factories：Sealed storage and dust suppression of materials like cement create a clean environment. It can accurately control material discharge to meet construction needs.
