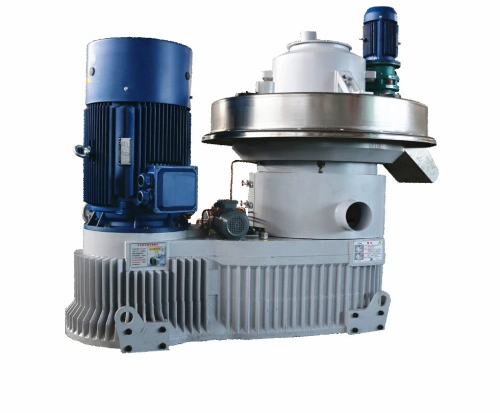

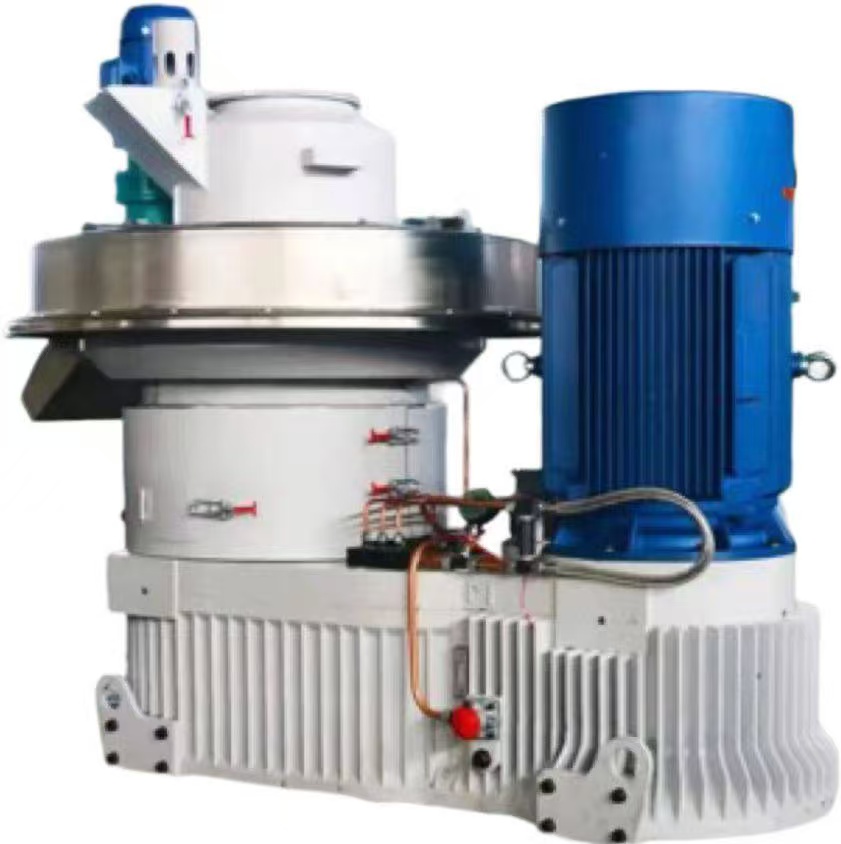

Wood Pellet Machine for Small Business
1. High production efficiency: the motor is directly connected to the gearbox of the reducer, increasing the kinetic energy conversion rate.
2. Long service life: the three-stage gear reducer is adopted to increase the load capacity, and the press wheel adopts the super wear-resistant alloy welding process, replacing the past surface carburisation treatment, and at the same time realising the protection of the mould.
3. Smooth operation: the gearbox of the reducer comes with a lubrication and cooling system, the machine can be achieved without stopping the lubricating oil cooling.
4. Not easy to be damaged: new toggle system, rotary components external, completely solved the toggle system is easy to be eroded by high-temperature steam problem. Wear-resistant stainless steel material, vacuum furnace quenching, mould hardness uniformity, no breakage, super wear-resistant.
Product features
The Wood Pellet Machine for Small Business is linked directly to the gearbox of the reducer. This connection improves the kinetic energy conversion rate and raises the overall production efficiency.
The load capacity is increased by the three - stage gear reducer. Meanwhile, instead of the previous surface carburization treatment, the press wheel adopts a super wear - resistant alloy welding process. This design lengthens the service life of the press wheel and provides better protection for the mold.
The gearbox is equipped with a built - in lubrication and cooling system. It can cool the lubricating oil effectively without the need to halt the machine, guaranteeing smooth operation.
The new toggle system, having external rotary components, solves the problem of high - temperature steam erosion, ensuring enhanced durability. The molds are fabricated from wear - resistant stainless steel and go through vacuum furnace quenching, achieving uniform hardness and outstanding wear resistance and remaining unbroken.
Supply Ability & Additional Information
Packaging： shipping by container
Productivity: 2.5-3.5 T/H
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 50 set per month
Port: Qingdao, Shanghai, etc.
Payment Type: L/C, T/T, D/P, Western Union
Incoterm: FOB,CFR,CIF,EXW
Packaging & Delivery
Selling Units: Set/Sets
Package Type: shipping by container
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |
Company Profile
Our firm is dedicated to cultivating long - standing customer relationships. By providing high - quality products and demonstrating careful commitment, we have accompanied and witnessed the growth of many customers. We are certain that quality is the ticket to the market and service is the means to build a reputation. Quality and efficiency are the roots for an enterprise to secure a position, and service and reputation are the driving forces for its progress.
