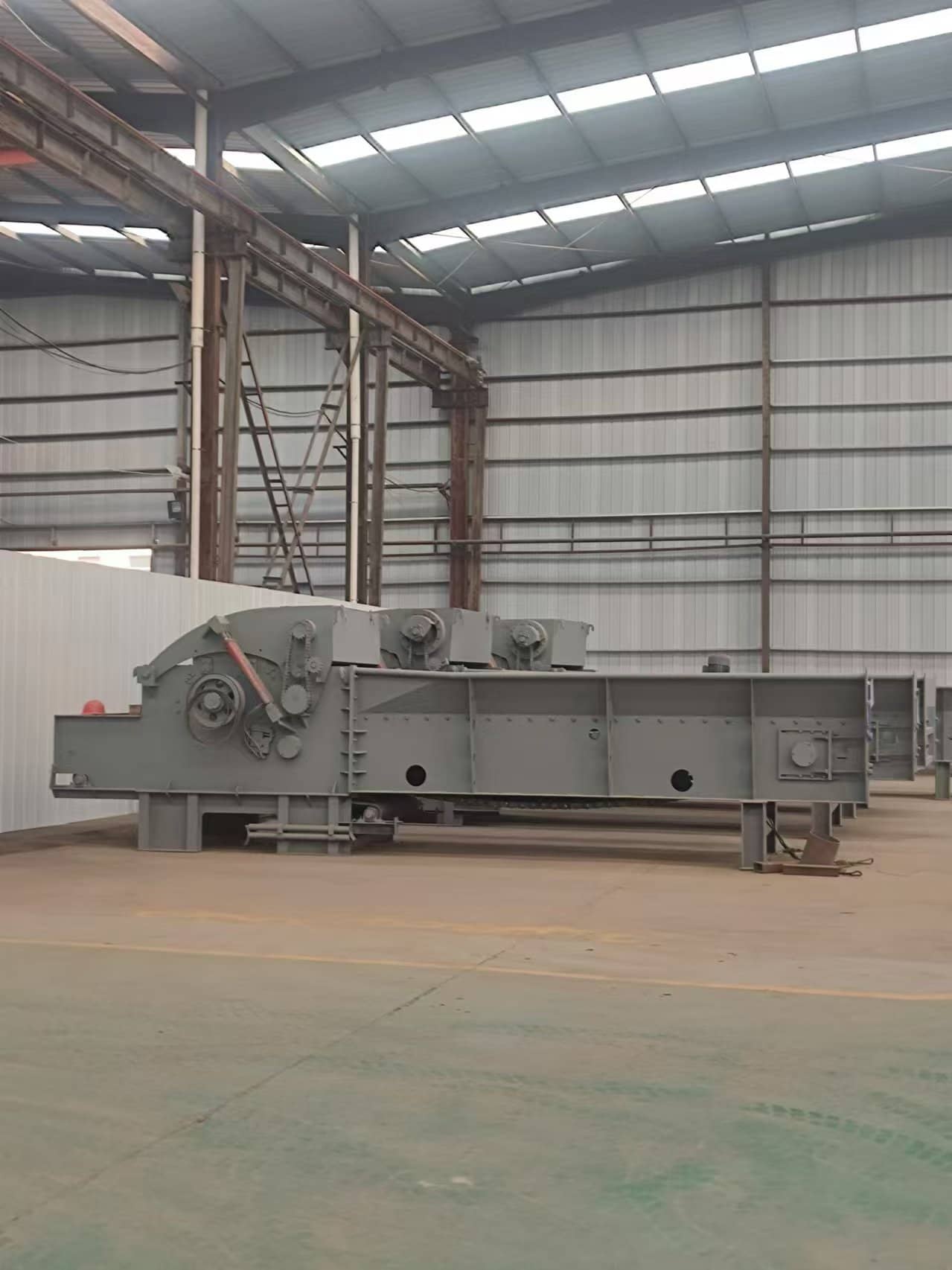

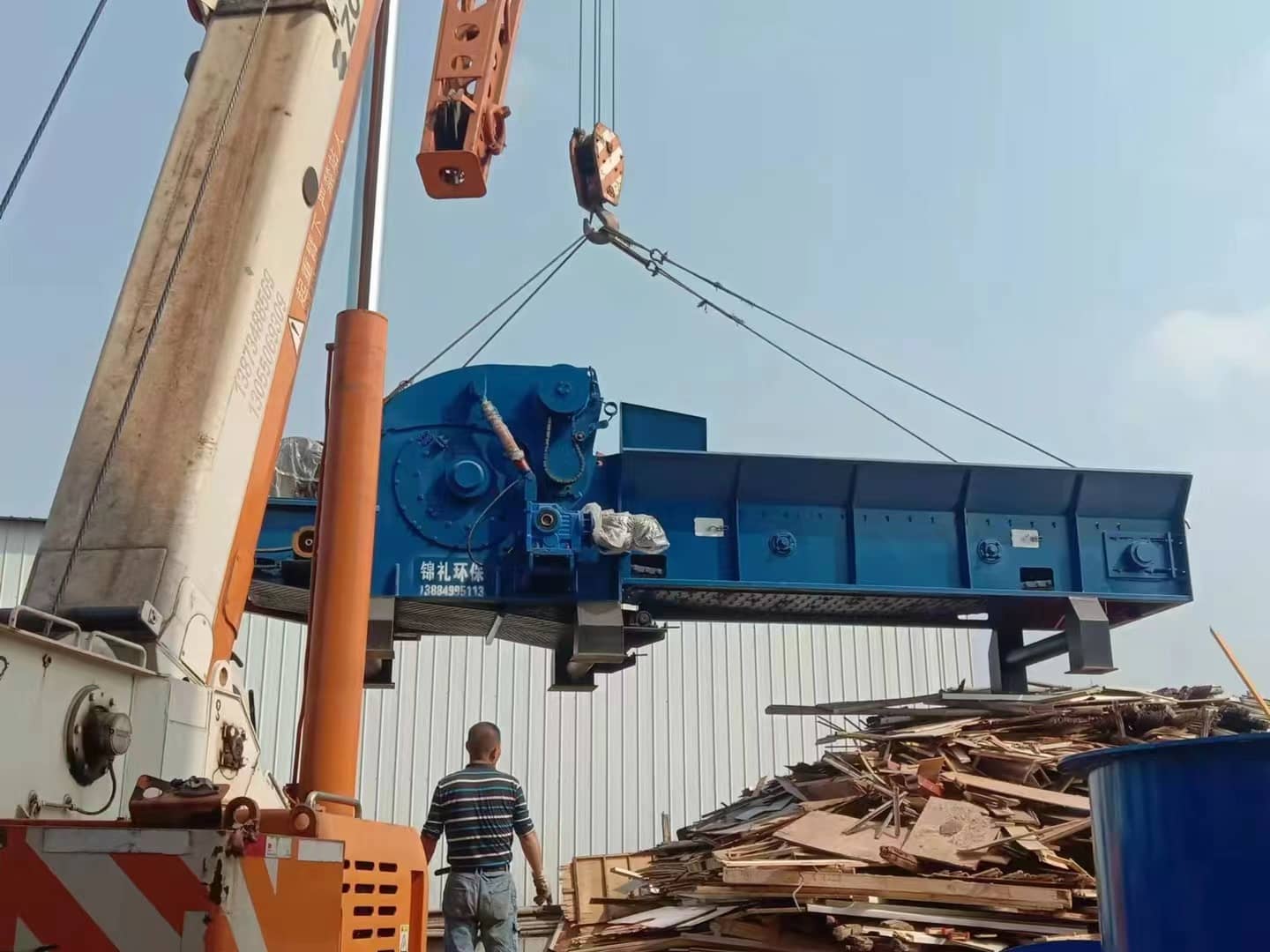

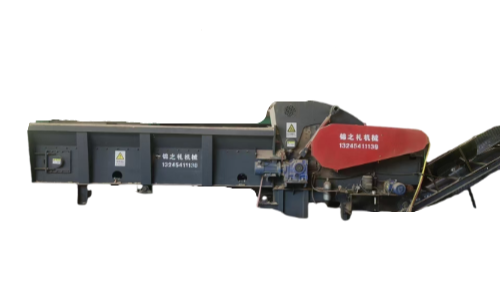

Durable Integrated Crusher
1.Advantage of chain plate: welded link bar prevents chain plate from breaking, high wear-resistant runway reduces wear and prolongs service life.
2.Motor and reducer guarantee: use brand-new motor, reducer and accessories, two-year warranty for motor and one-year warranty for reducer to ensure reliable operation of the equipment.
3.Durable rollers: self-welded rollers are moulded in one time with solid shaft to prevent deformation and reduce maintenance work.
4.Convenient screen replacement: the equipment is equipped with sliding knives, so there is no need to open the feeding system when changing the screen, which makes the operation more convenient.
5.Efficient crushing capacity: the knife roller rotates up to 888-926 rpm, which makes the crushing efficiency higher and reduces the production time and cost.
Chain Plate Structure: Upper welded link bar prevents single - point breakage from collapsing the whole plate.
Lower Layer Advantage: High - wear - resistant track on the lower layer boosts elasticity, cuts wear, and extends lifespan.
Component Quality: Only brand - new motors and reducers are used, no refurbished parts.
Warranty: Two - year warranty for motors, one - year for reducers and electronic control systems.
Lower Roller Design: Self - welding roller with one - piece solid shaft avoids deformation, ensures smooth production.
Screen Replacement: Special slide knife design enables replacement without opening forced feeding, for convenient operation.
Product features
1. The high wear-resistant runway design of the chain plate reduces wear and prolongs the service life of the chain plate and improves the stability of the equipment.
2. The new configuration and warranty policy of motor and reducer ensure the long-term reliability of the equipment.
3. Self-welding rollers avoid unnecessary stoppages in production and improve production efficiency.
3. High standard hydraulic oil top and insurance lever ensure the safety of hammer head replacement and overhauling.
4. The knife roller speed of the equipment is up to 888-926 rpm, higher than the 600 rpm of ordinary manufacturers, which enhances the crushing strength and effectively saves time cost and operation cost.
5. Segmental conveying design makes discharging more convenient, avoiding the inconvenient problem of discharging brought by single motor and reducer, further improving the production efficiency.
Parameter
Model | Main power | Feeder motor power | Feed opening size | Knife roller diameter | YG8 Alloy crushing hammer |
1250-500 | 110 | 7.5+5.5 | 1250*500 | 800 | 24 |
1300-500 | 132 | 5.5+7.5 | 1300*500 | 800 | 24 |
1400-500 | 160 | 11+7.5 | 1400*500 | 800 | 24 |
1450-600 | 200 | 11+7.5 | 1450*600 | 900 | 24/28 |
1450-800 | 200/250 | 15+11/11+11 | 1450*800 | 1050 | 24/28 |
1600-500 | 160 | 11+7.5 | 1600*500 | 800 | 28/32 |
1650-600 | 200-220 | 11+7.5 | 1650*600 | 900 | 28/32 |
1650-800 | 220-280 | 15+11 | 1650*800 | 1050 | 28/32 |
1000-500 | 110/132 | 5.5+4/5.5+5.5 | 1000*500 | 800 | 18 |

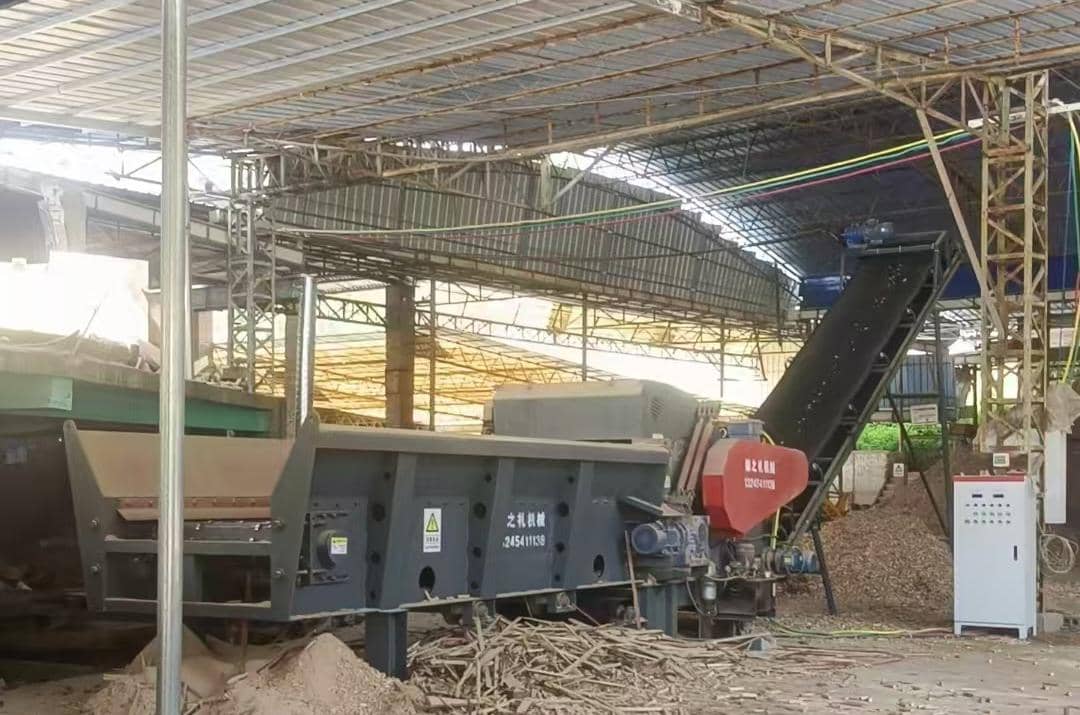

Crusher series is a professional equipment for producing wood chips, which is widely used in biomass energy industry for raw material production and fuel storage in biomass power plants. | |||||
