Pellet Cooler Machine
In comparison with the old-style pellet cooler, the new one is constructed using thick galvanized sheet materials. It boasts high density, is resistant to deformation and corrosion, and has an extended service life.
1. The pellet cooler features a modular structure for installation, offering convenience in transportation and on-site assembly by customers.
2. It adopts a unique vibration mechanism for pellet discharge, ensuring stable operation and seamless discharging.
3. Equipped with a material level device, the pellet cooler can monitor the material level in the bin in real-time, achieving a high level of automation.
Introduction to Pellet Cooler

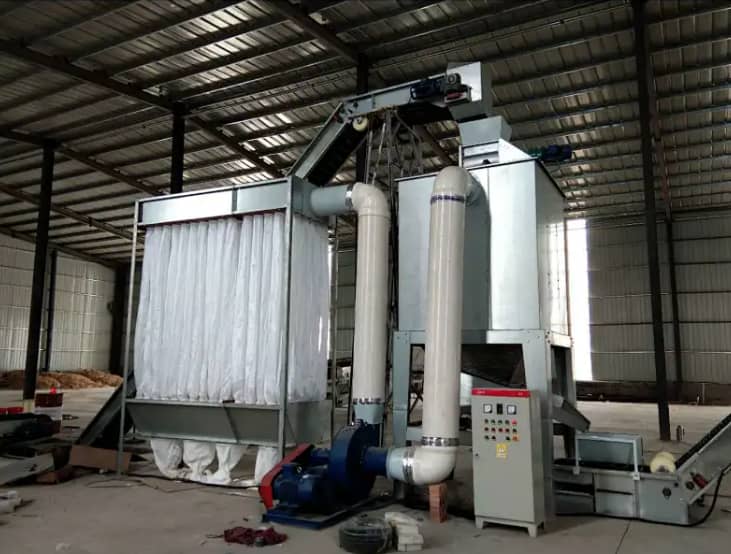

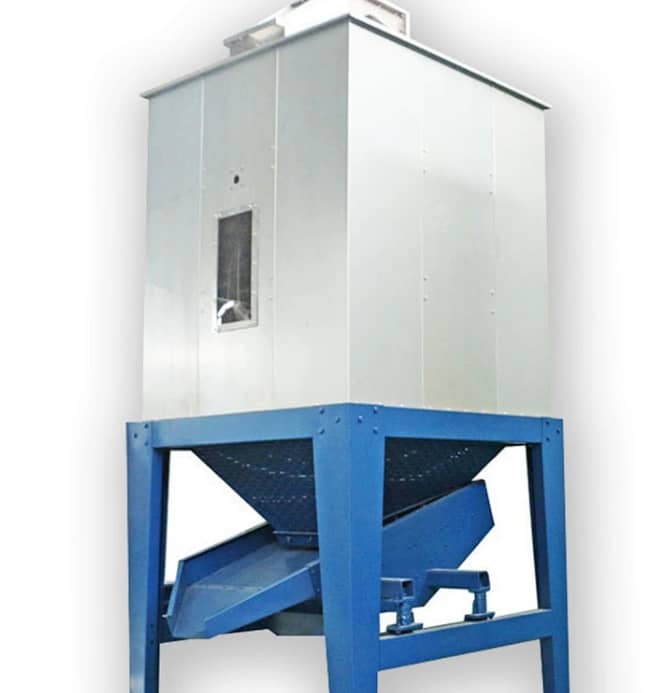

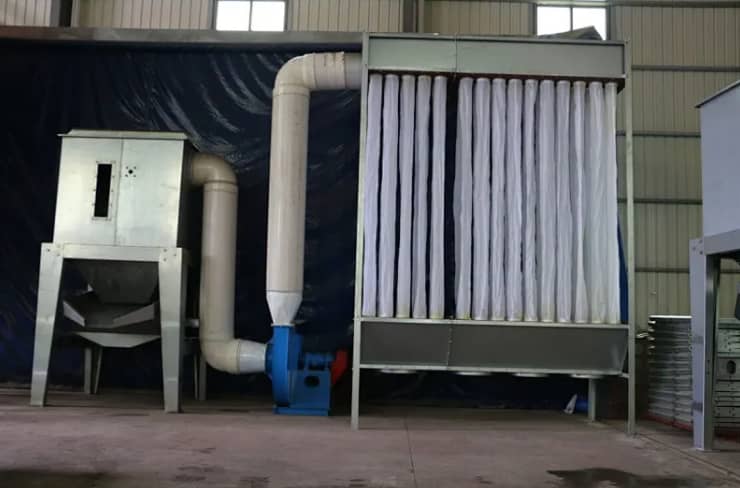

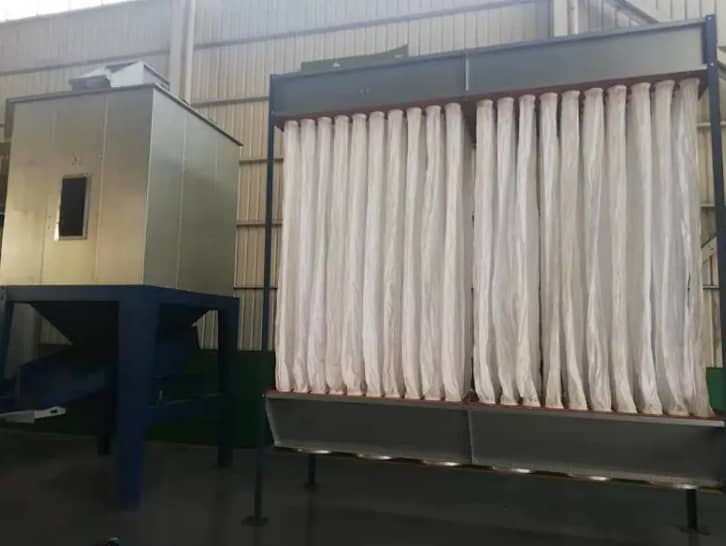

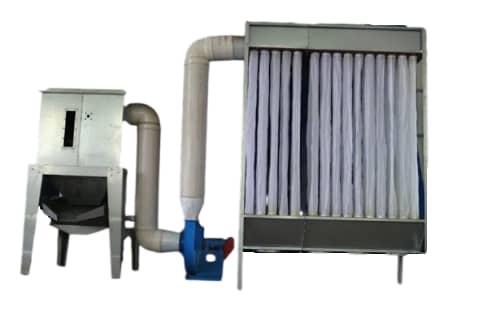

Our company utilizes the SKLN series counter - flow pellet cooler. Let's take a look at its main components, which include the upper housing, middle bin, cooling sieve, vibrating screen, frame, observation window, bag dust collector, fan blower and other parts. This cooler is mainly used to cool the high - temperature pellets after pelleting. By reducing the temperature and humidity of the pellets, it makes them easier to transport and store.
When the pellets come out of the pellet machine, their temperature can be close to 70 degrees Celsius. High - temperature pellets are very easy to break and produce water vapor. However, the temperature of the cooled pellets is close to the atmospheric temperature, allowing them to be directly packaged. Therefore, it is an essential part of large - scale pellet production lines, facilitating the pellets to enter the next section (the packaging section).
Parameters of pellet cooler
| Model | Calorific T/H | Power(kw) | Fan power(kw) |
| SKLN1.2 | 0.8-1.2 | 1.1+1.5+5.5+0.25 | 5.5 |
| SKLN1.5 | 1-2 | 1.1+0.18+5.5 | 5.5 |
| SKLN2.5 | 2-3 | 2.2+0.18+11 | 11 |
| SKLN-4 | 4-6 | 2.2+22+0.37+0.37 | 22 |
| SKLN-6 | 7-10 | 3+37+0.55+0.55 | 37 |
| SKLN-8 | 10-15 | 3+55+0.55+0.55 | 55 |
