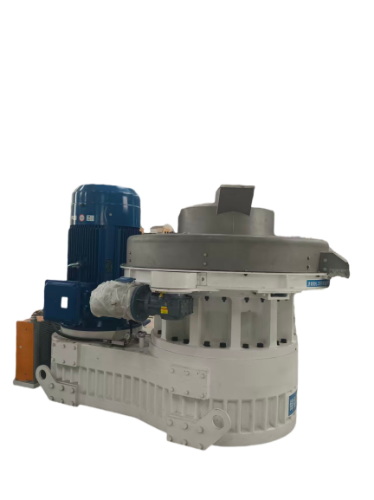

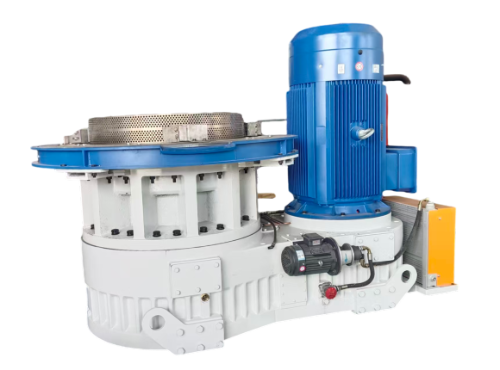

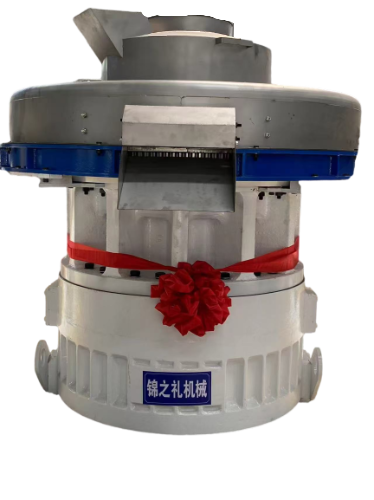

Biomass Peanut Shell Pellet Machine
Product Specifications & Commercial Details
Basic Information
Model: JFC850
Power: 355 KW
Brand: Golden Equation
Place of Origin: Shandong, China
Condition: Brand New
Capacity & Performance
Capacity: 4.5–5 tons/hour
Suitable Raw Materials: Grass, Rice Husk, Biomass, Straw, Cotton Stalks, etc.
Key Selling Points: Easy to Operate, Patented Product, High Rigidity, Energy Saving
Certification & Support
Certificates & Approvals: CE, ISO, SGS
Mechanical Test Report: Available upon request
Factory Inspection Video: Provided
Warranty & After-Sales Service
Warranty Period: 1 Year
Warranty Coverage for Core Components: Bearing, Motor, Gear, Gearbox, etc. (subject to agreement)
Post-Warranty Service: Video Technical Support, Online Remote Assistance
Supply Chain & Logistics
Packaging: Sturdy packaging suitable for sea or air freight
Shipping Methods: Sea, Air
Common Incoterms: FOB, CFR, CIF, EXW
Port of Loading: Qingdao Port
HS Code: 84793000
Payment Terms: L/C (Letter of Credit), T/T (Wire Transfer)
Applicable Industries
Manufacturing Plants, Farms, Energy & Mining
Vertical Biomass Peanut Shell Pellet Machine is by-product from wood sawing process. Actually, sawdust doesn`t have much application because of its low burning efficient. However, by pressing the saw dust into pellets, it becomes a kind of high quality bio fuel product – sawdust pellets or wood pellets.
Vertical Ring Die Rice Husk Wood Pellet Mill Strengthen the transmission system
1.Deceleration structure :transmission with parallel shaft three hardened teeth helical slowdown,gear modulus increase,gear widening,strengthening,transmission strength is 3-5 times the conventional reducer.
2.Power input:the use of efficient energy-saving motor,plug directly connected,coaxial high,high-speed shaft with parallel shaft structure,gear shaft are two support rotation,high rigidity,smooth and reliable transmission,to abandon the greater power.
3.Power output:the deice output and the spindle into one,to abandon the limited form of connection,the strength increased 2-3 times.
4.Main shaft strengthening:the shaft length is shortened,the stiffness is significantly improved,high stiffness of the shaft can reduce the wear of mold and rollers.
5.Flexible installation:the device outlet can be multi-angle rotation,equipment installation more flexible and diverse.
Vertical Ring Die Biomass Peanut Shell Pellet Machine produce process:
Model | Power(KW) | Size (MM) L*W*H | Capacity(T/H) | Weight(T) |
JFC850 | 355 KW | 2870*1830*2190 | 4-5 | 13.5 |
Core Selling Points
1. Durability Advantages
Upgraded Body Material: Features a 3mm thick 304 stainless steel discharge body and a new 304 stainless steel feeding hopper, offering corrosion resistance, impact deformation protection, and extended service life.
Enhanced Core Components: Solid spline integrated main shaft undergoes quenching treatment and is paired with four sets of high-speed machine tool bearings and specialized pellet mill oil, improving wear resistance and prolonging the lifespan of core components.
Sealing & After-Sales Support: The bearing chamber adopts dual oil seal protection (one more layer than similar models) and comes with a commitment to "free replacement within two years in case of cracking," effectively reducing long-term maintenance costs.
2. Production Performance Advantages
Wide Material Compatibility: Supports materials with ≤25% moisture content, compatible with 18 types of raw materials. With a pellet clearance of up to 16mm, it minimizes clogging risks and broadens application scenarios.
Stable and Efficient Output: Daily production capacity of 4.5–5 tons. Designed with decelerated transmission and Shandong series gears for stable power output and guaranteed pelletizing efficiency.

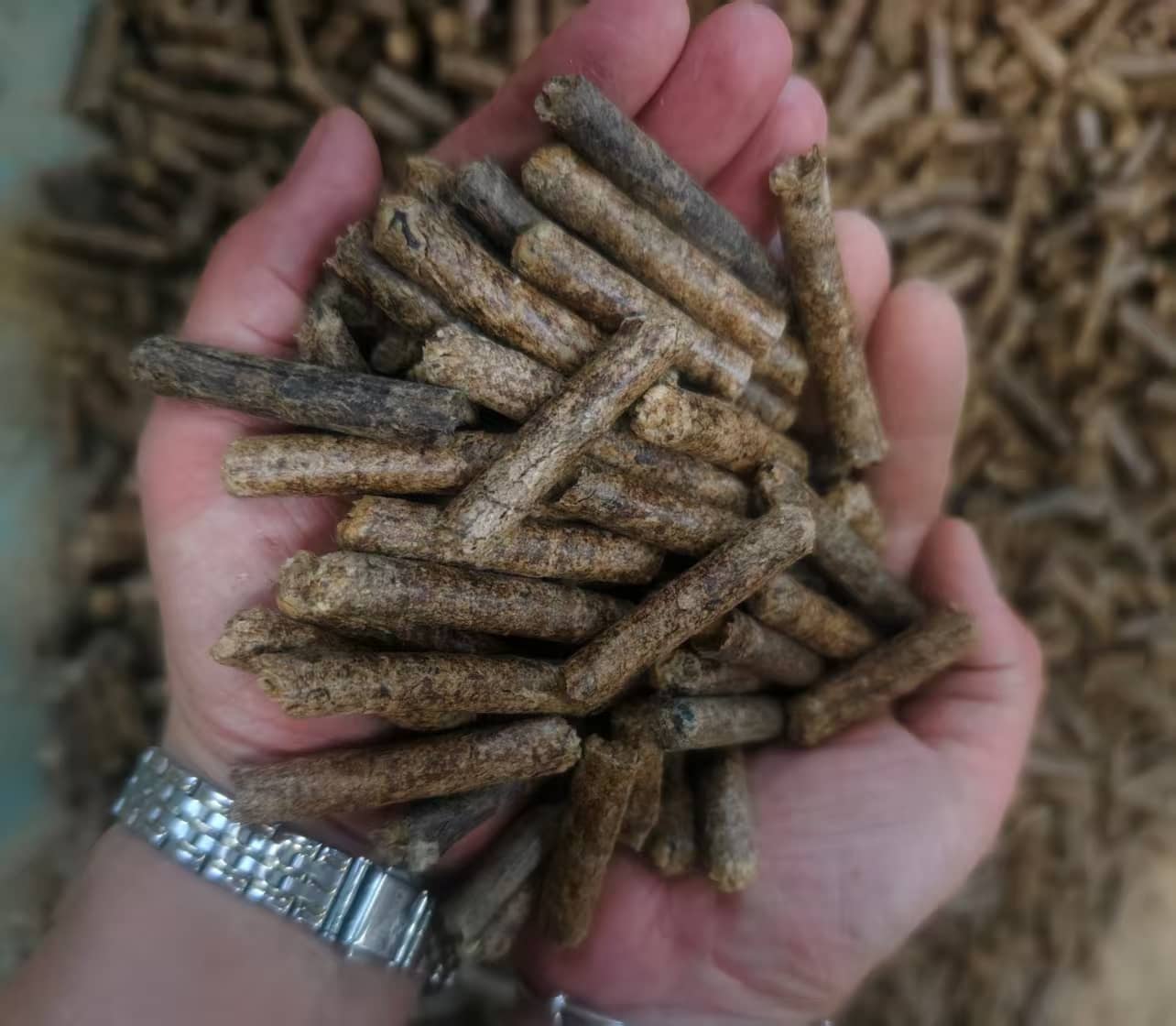

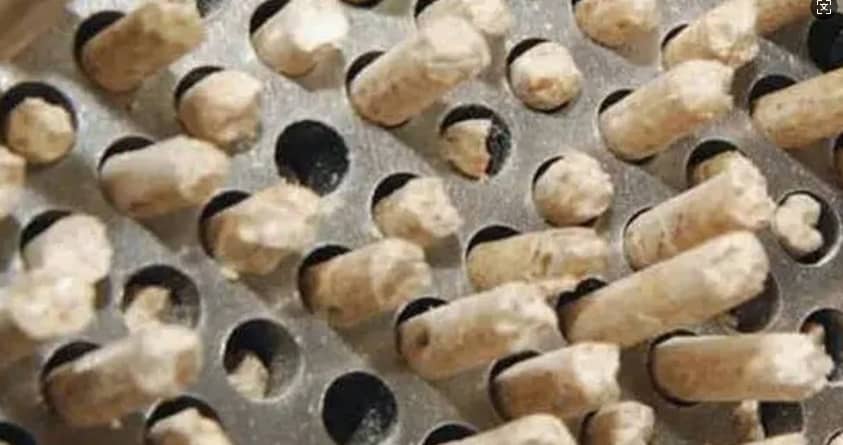

Excellent Pellet Quality: Equipped with a double-layer insulated stainless steel mold and self-developed wear-resistant roller shells, achieving a pellet density of 1.2–1.3 t/m³ and high pellet uniformity. The roller shells can withstand over 2,000 tons of material processing with low wear rates.
3. Operation & Configuration Advantages
Premium Reliable Configuration: The motor is made of high-quality GB40Cr alloy (treated with quenching, tempering, carburizing, etc.), paired with a 355kW Dahong/Shandong Guoda motor, ensuring strong power output and low failure rates.

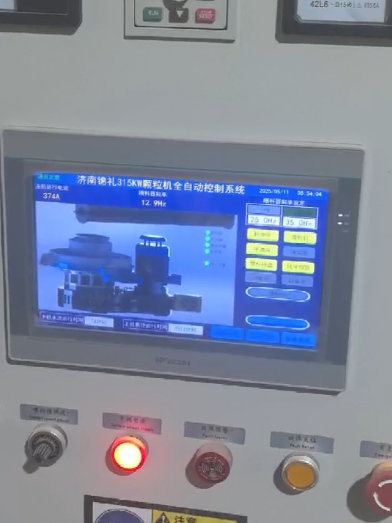

Intelligent Operation: Features a large-screen PLC touch panel and a mobile app for remote monitoring, enabling real-time equipment status checks and lubrication time adjustments. This makes operation and maintenance more convenient and efficient.
FAQ:
Q: General questions to design the production line for you?
A: 1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And
please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines
arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines
and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
