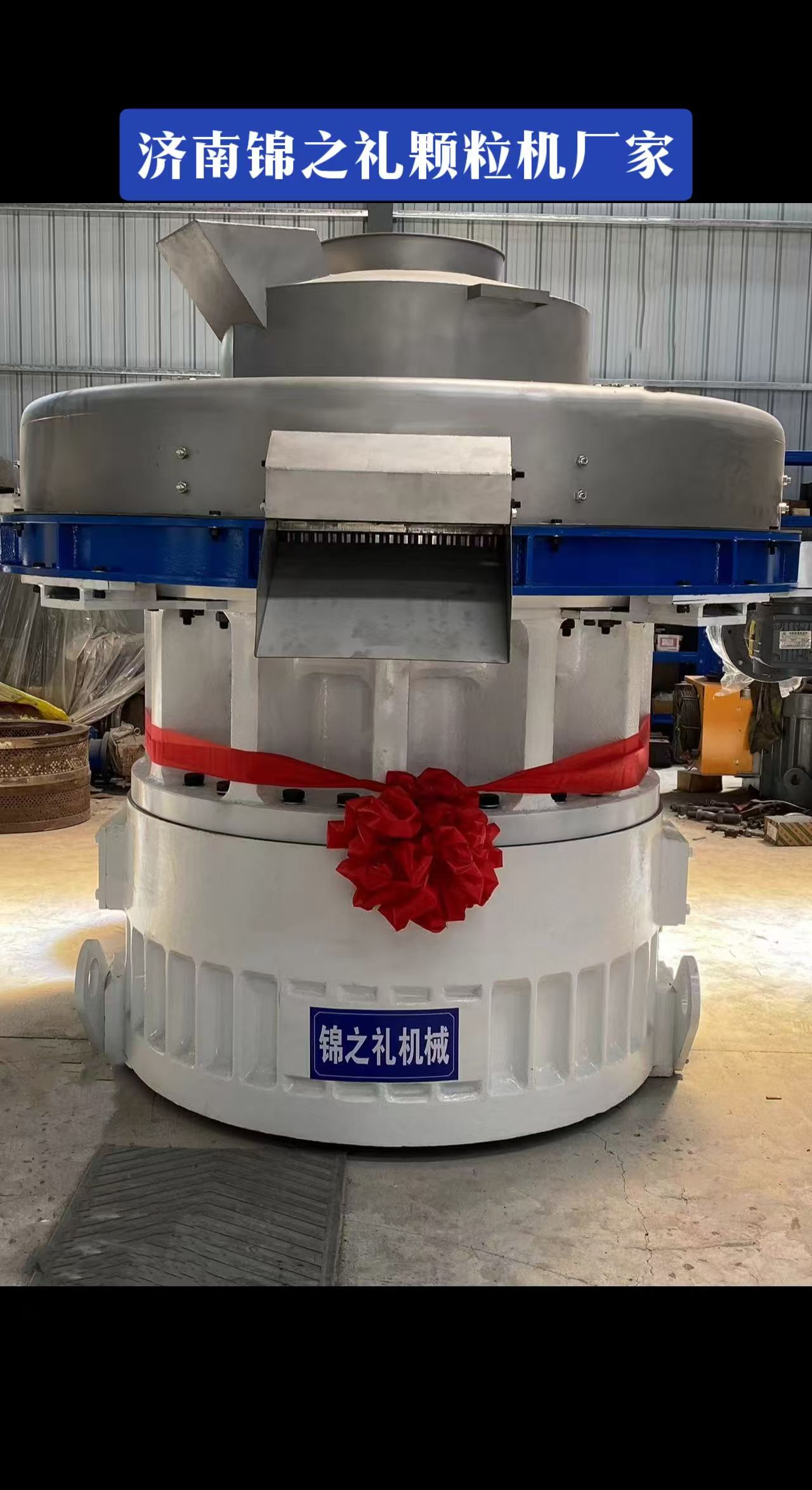

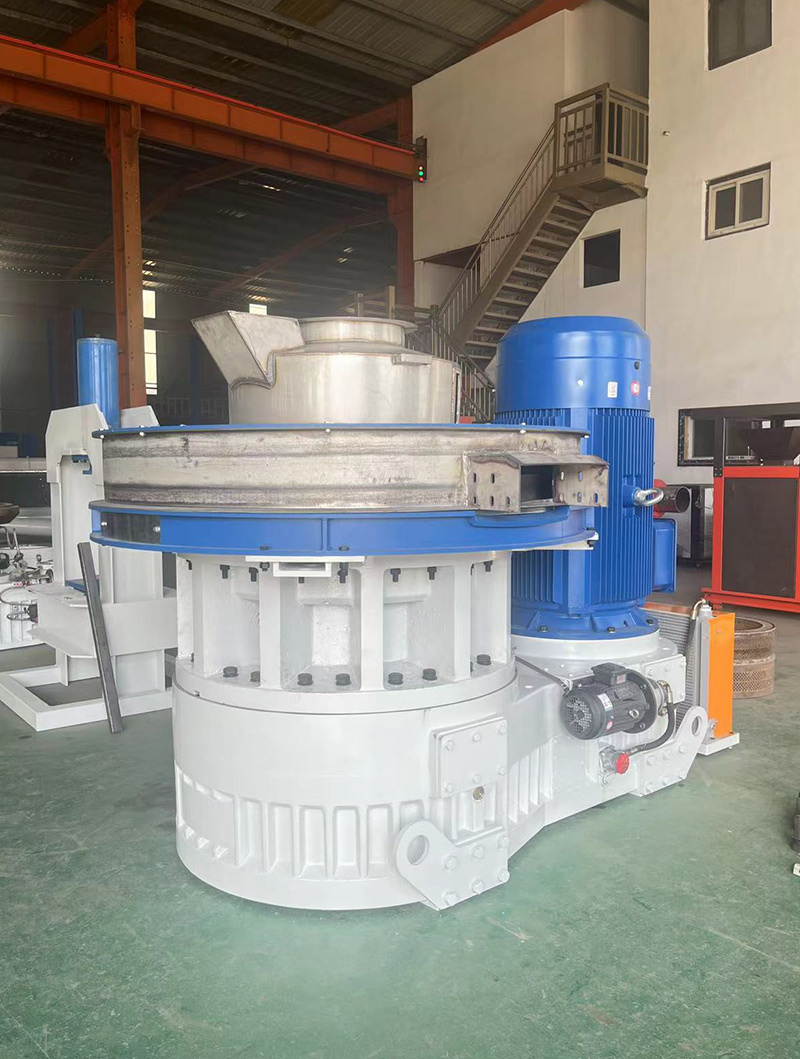

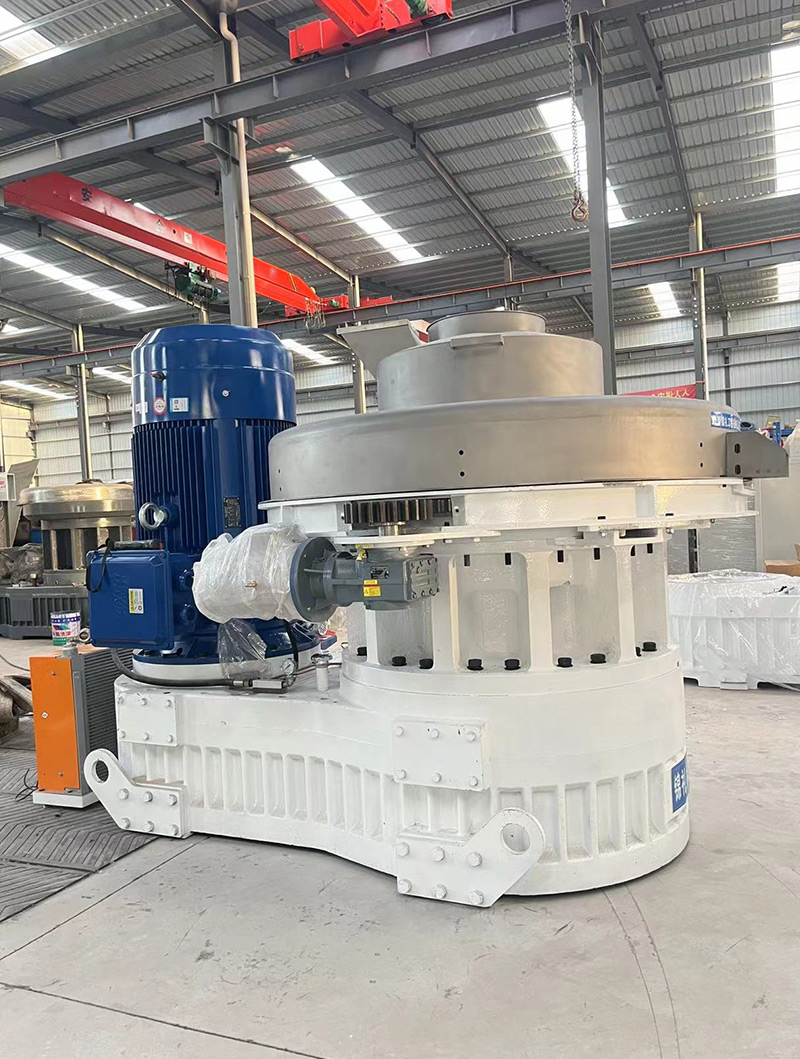

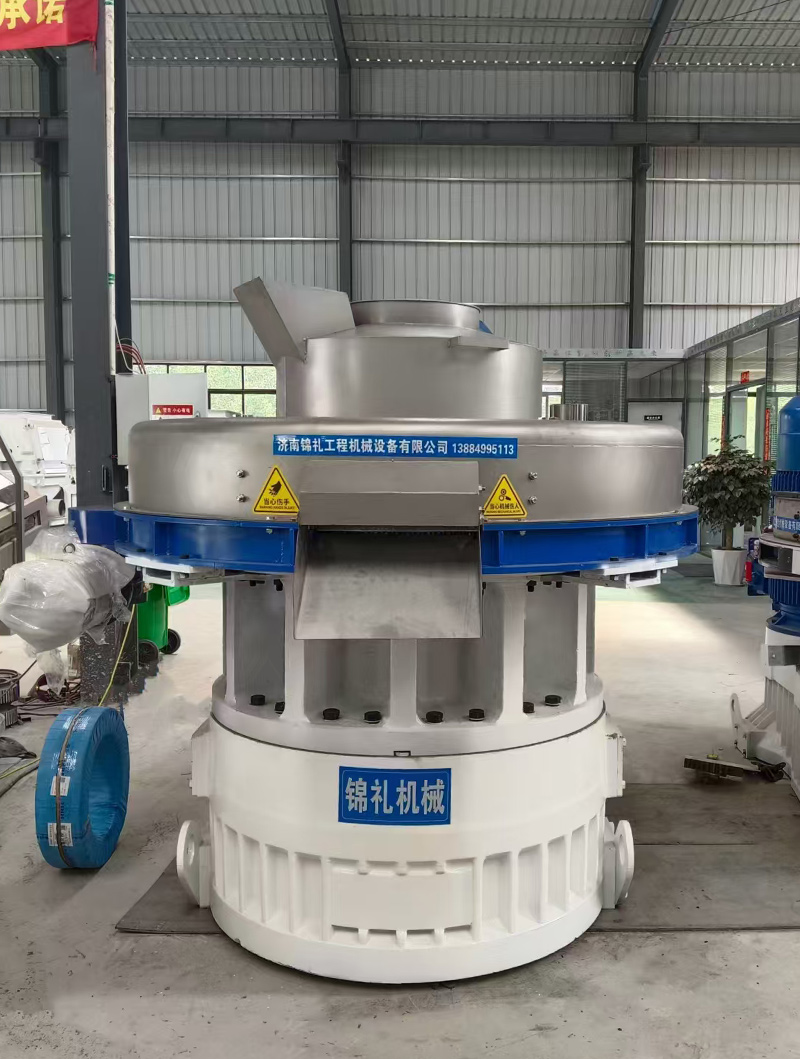

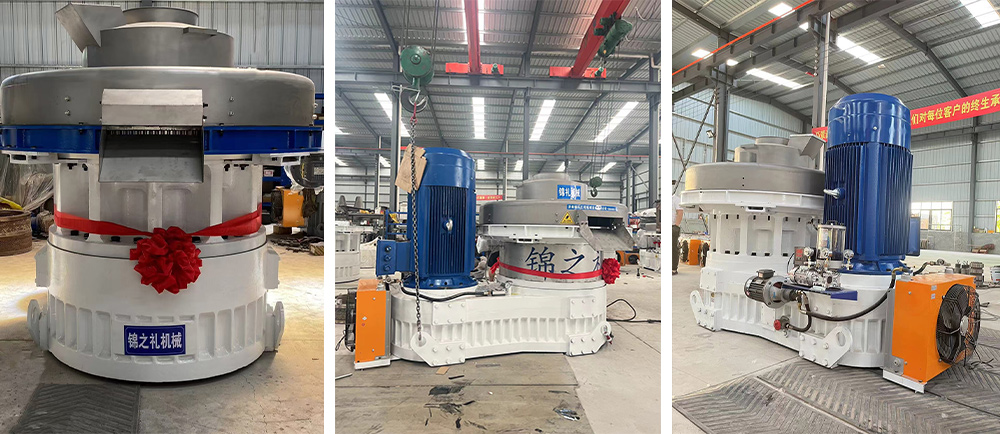

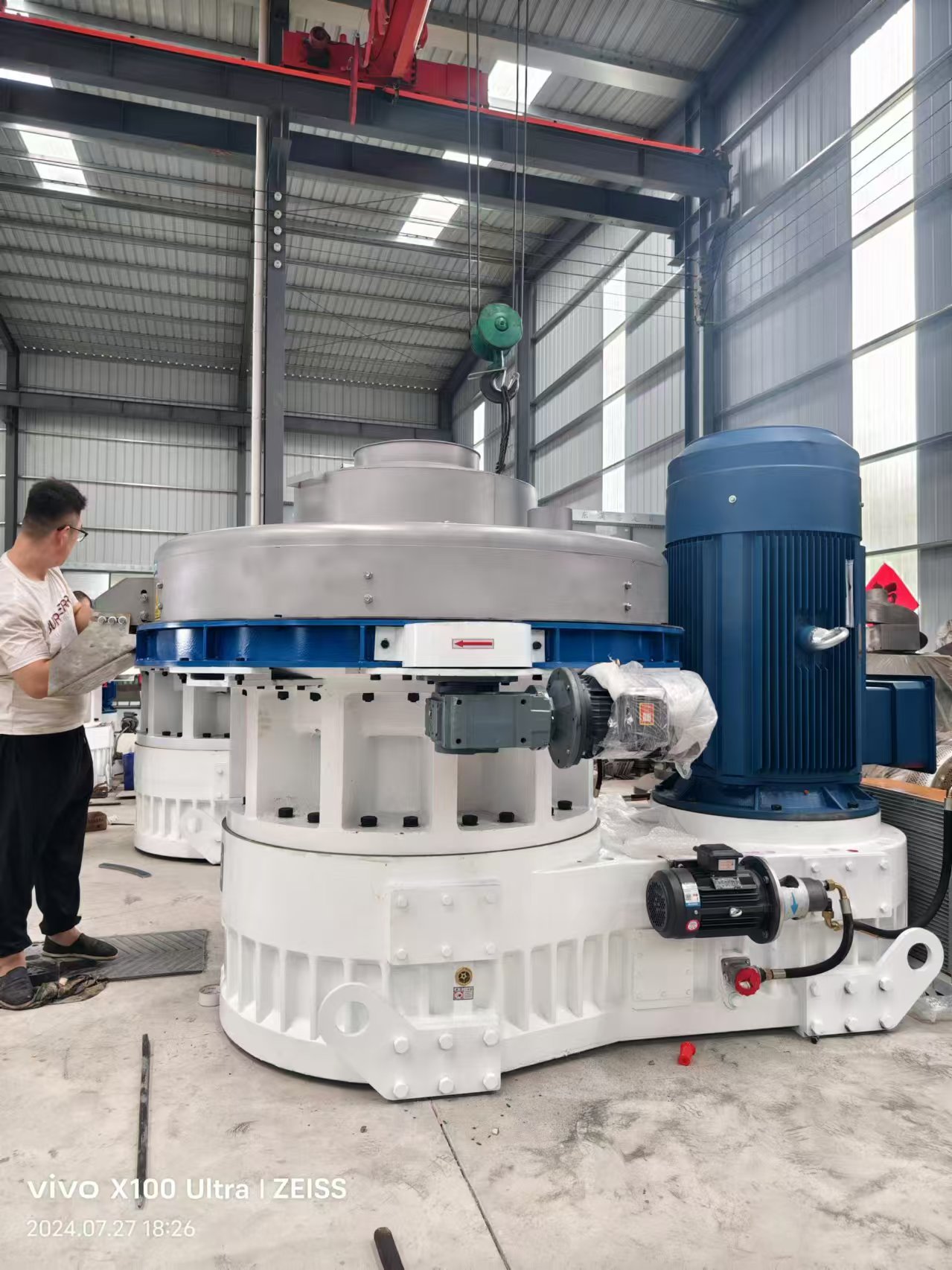

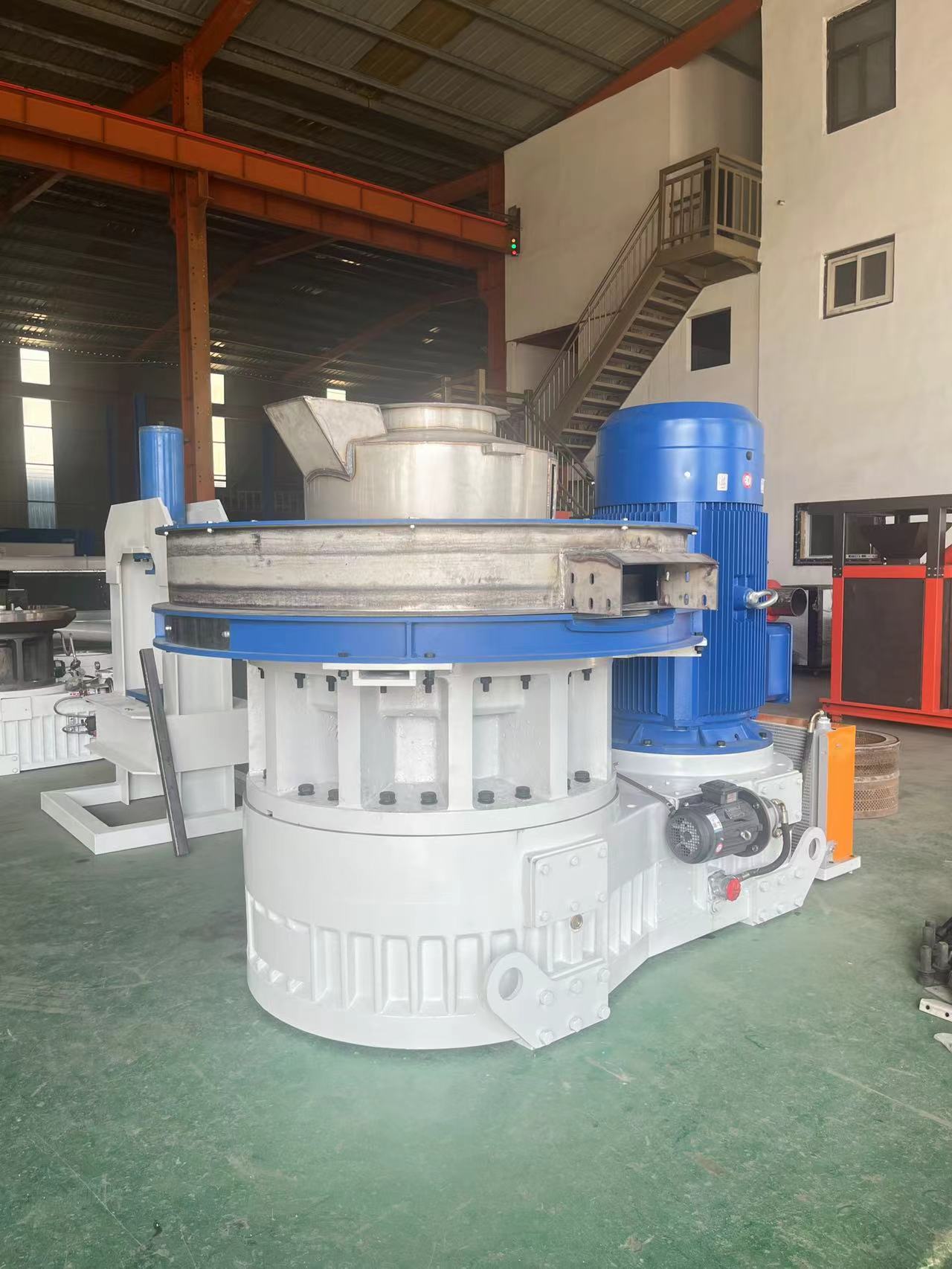

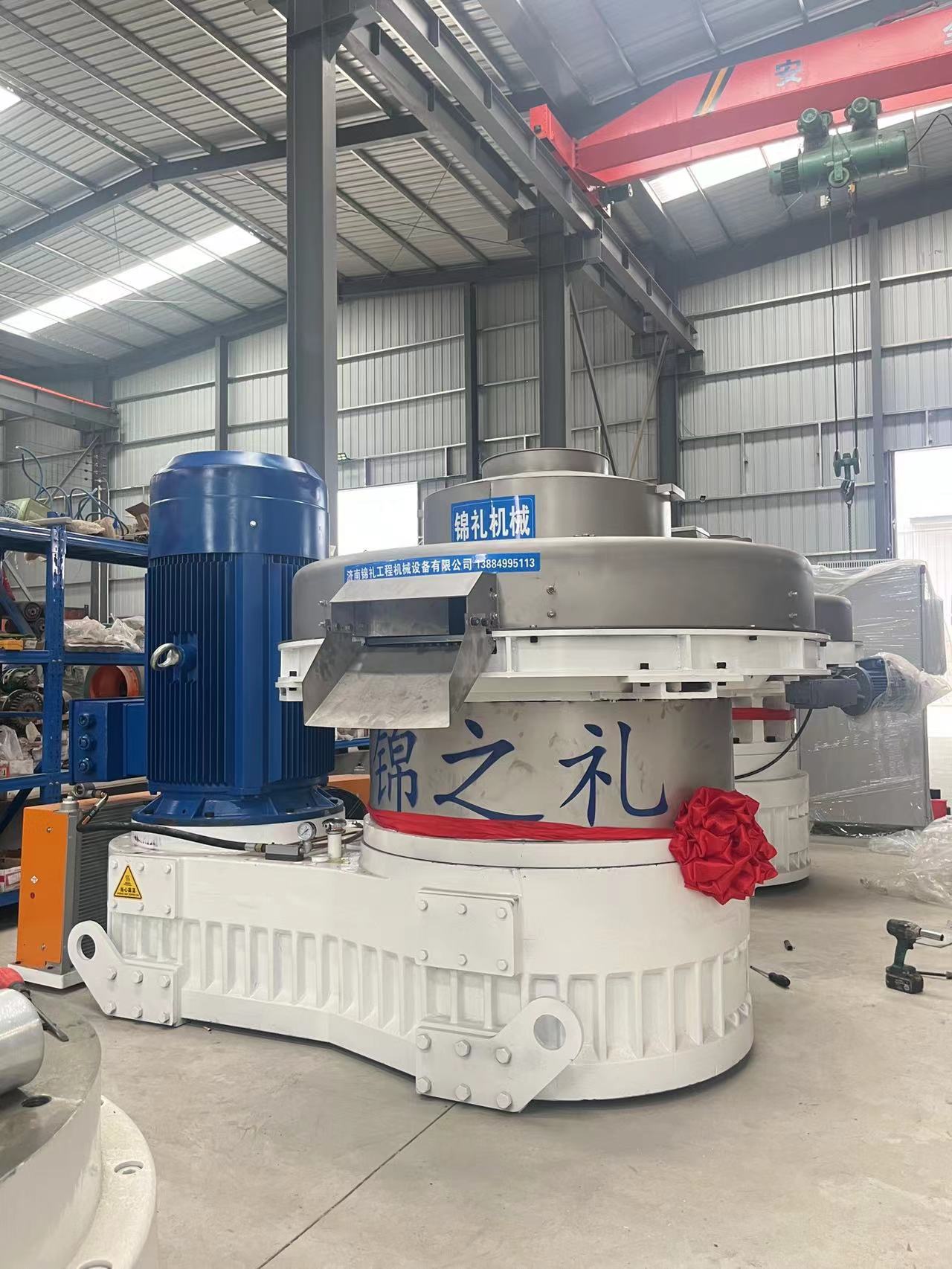

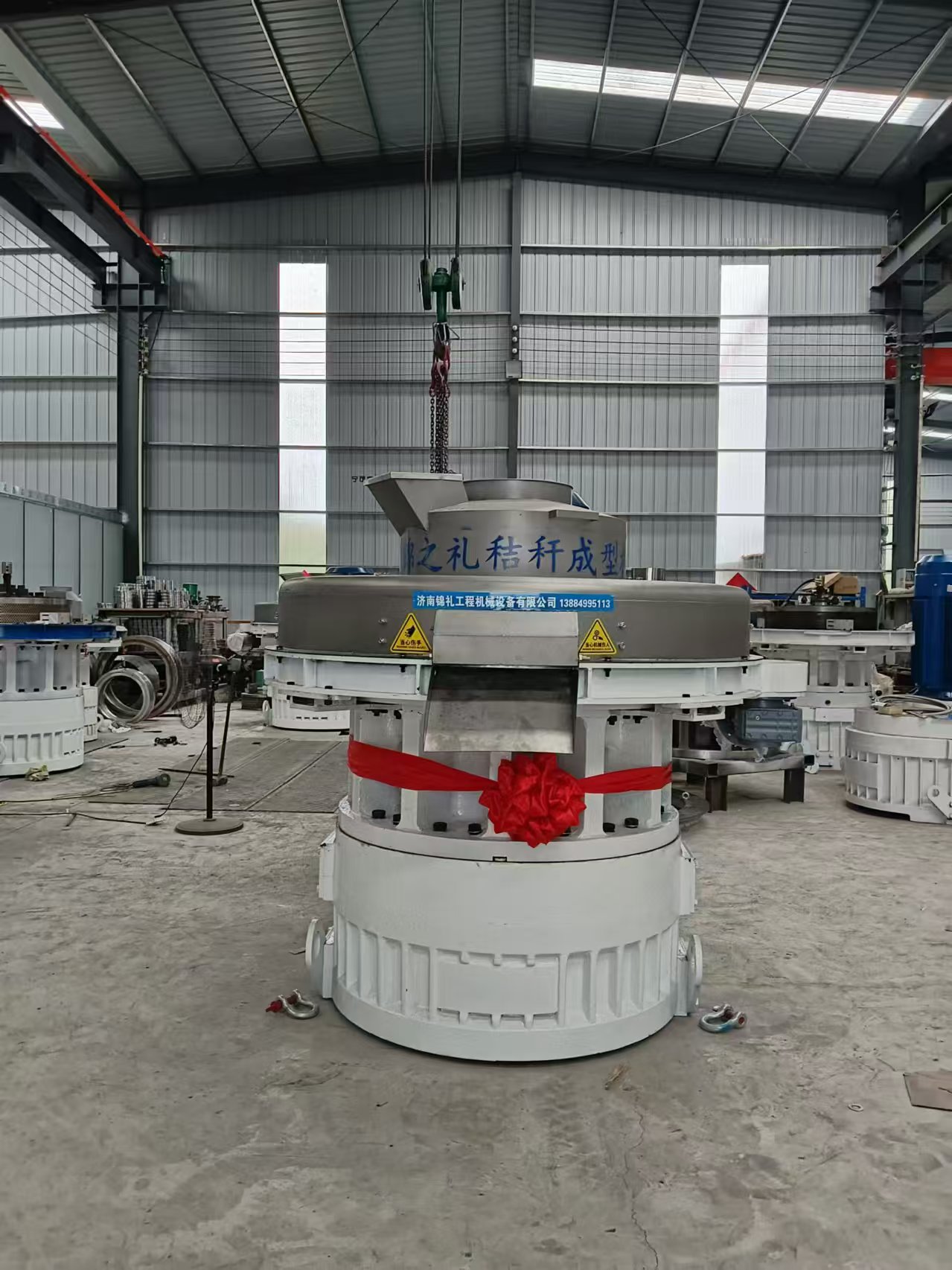

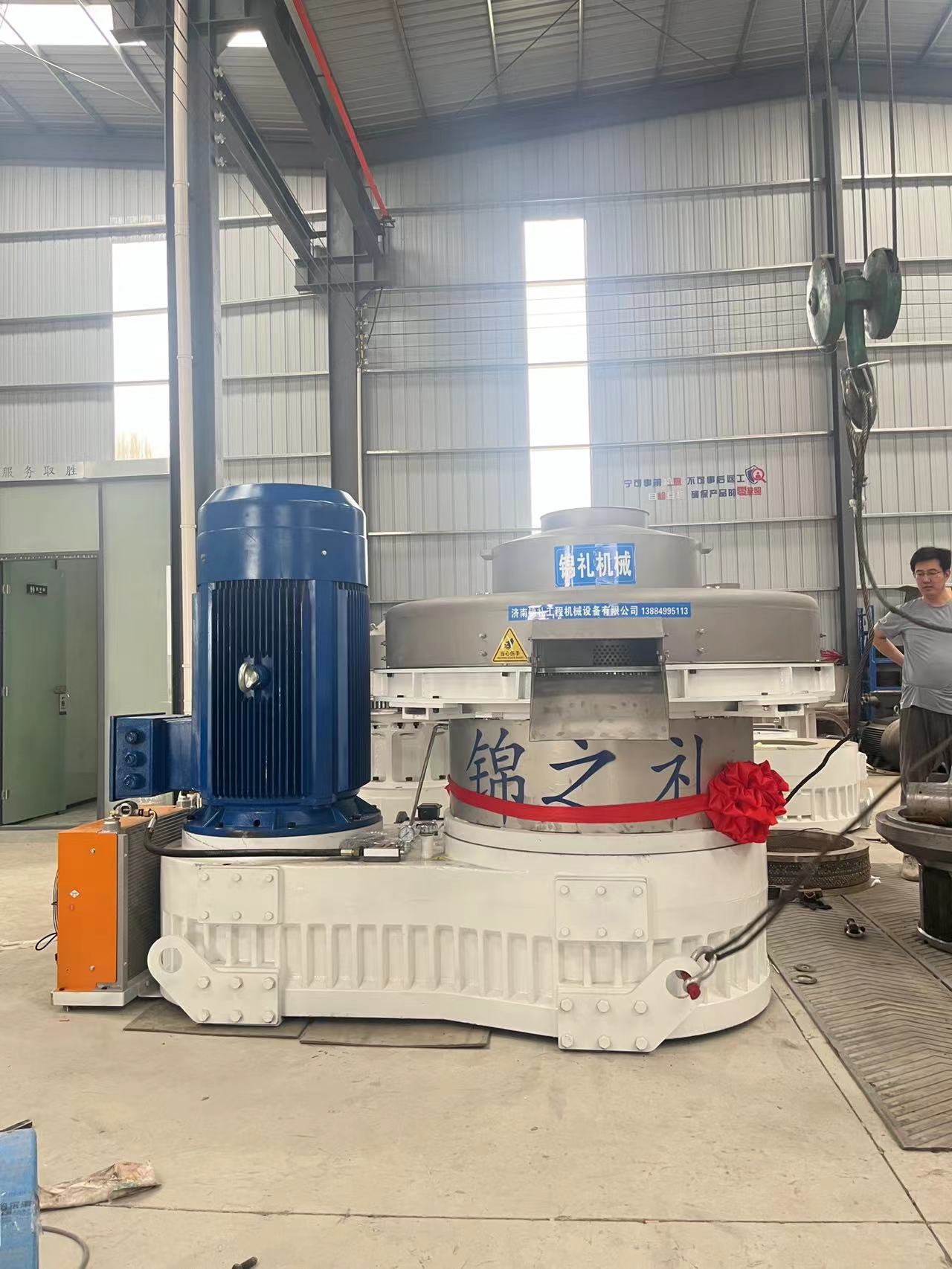

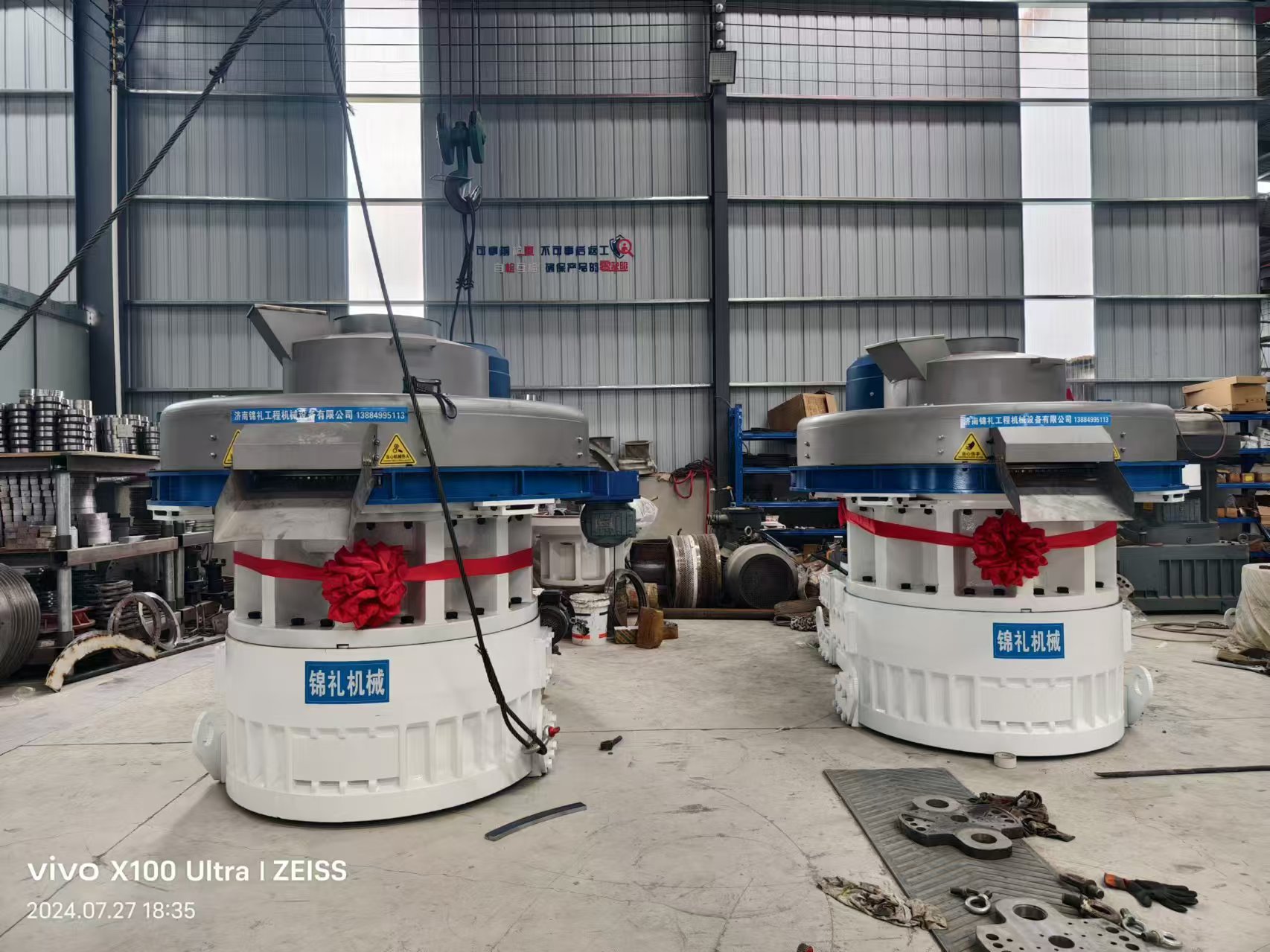

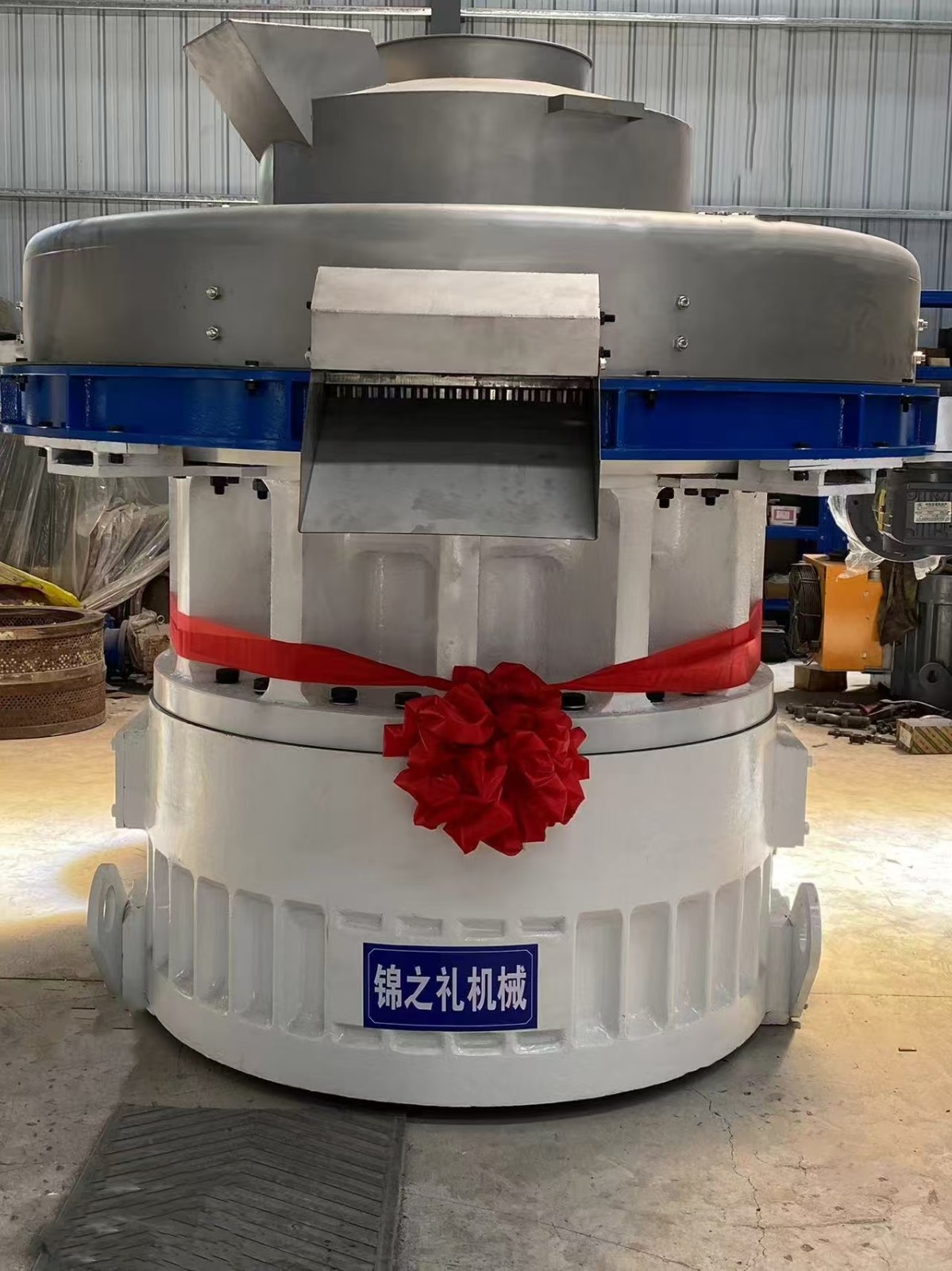

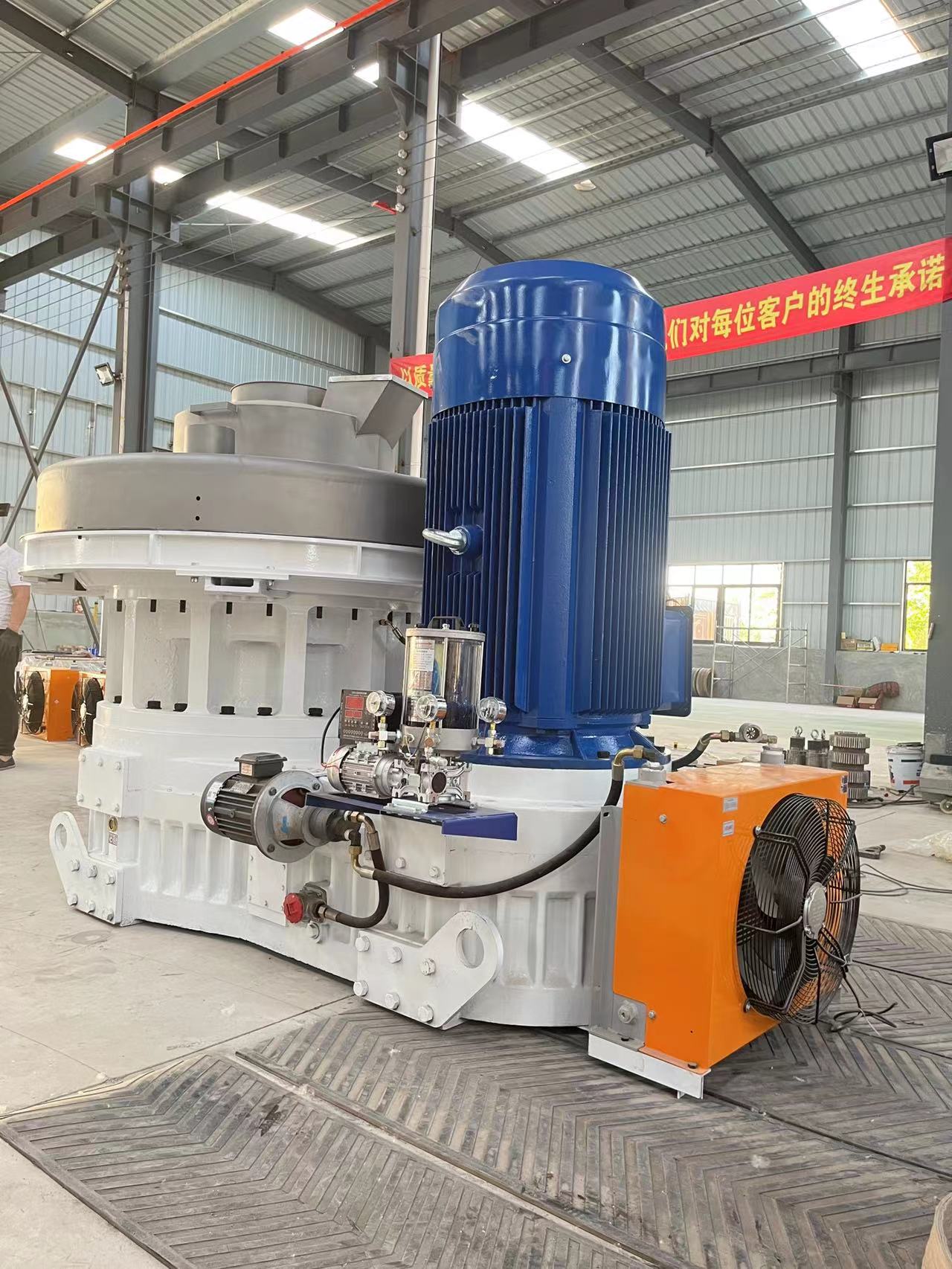

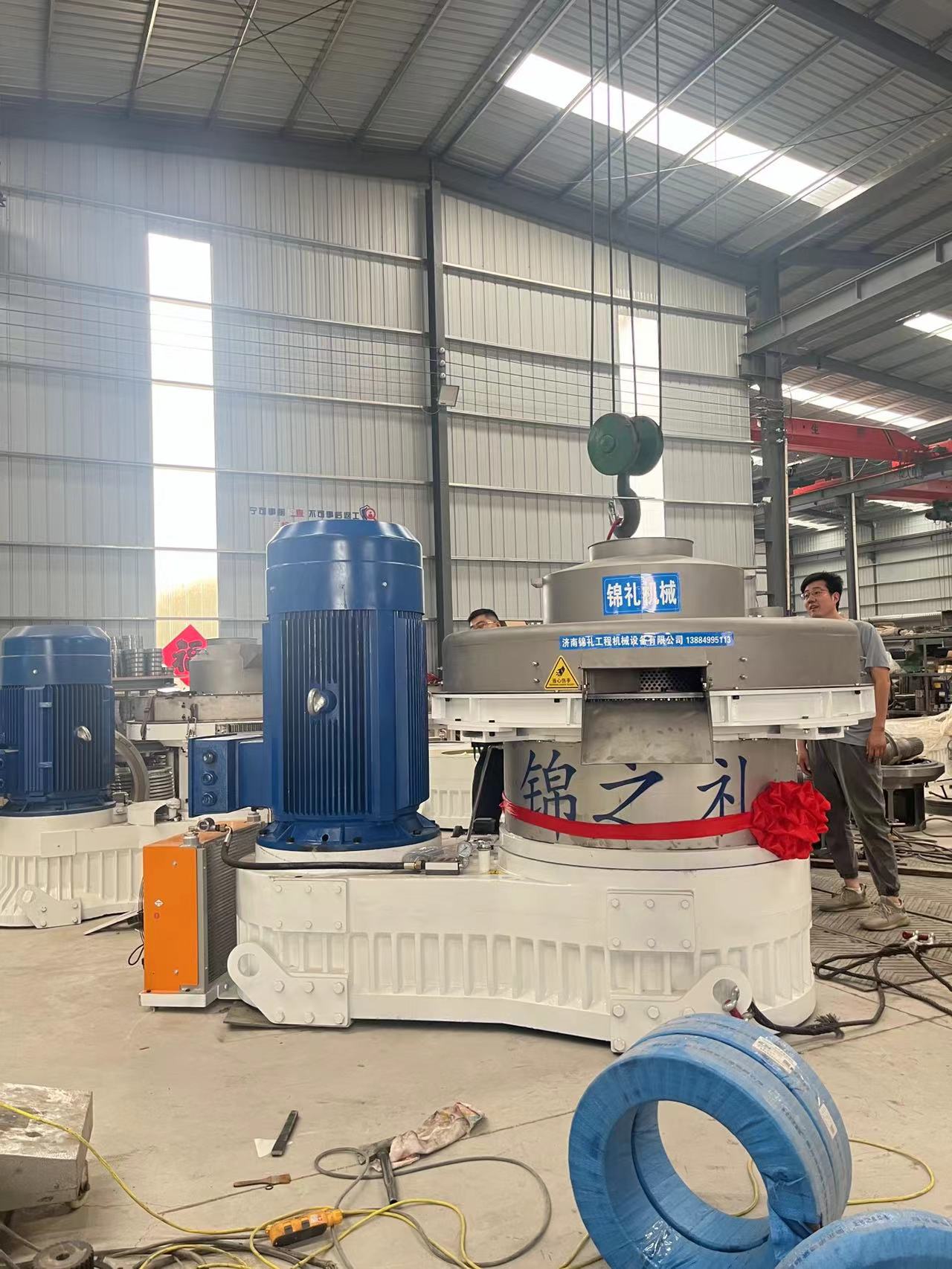

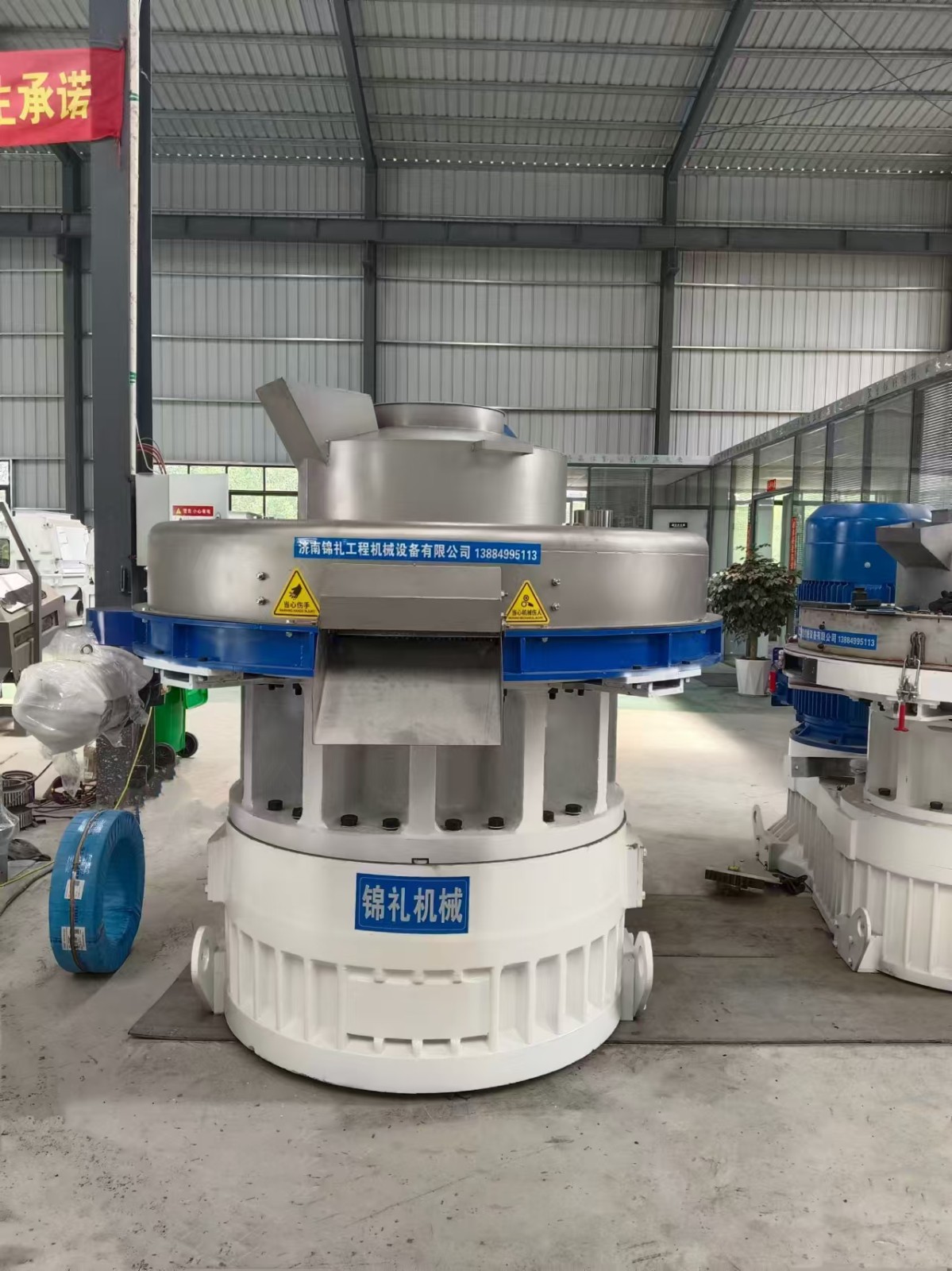

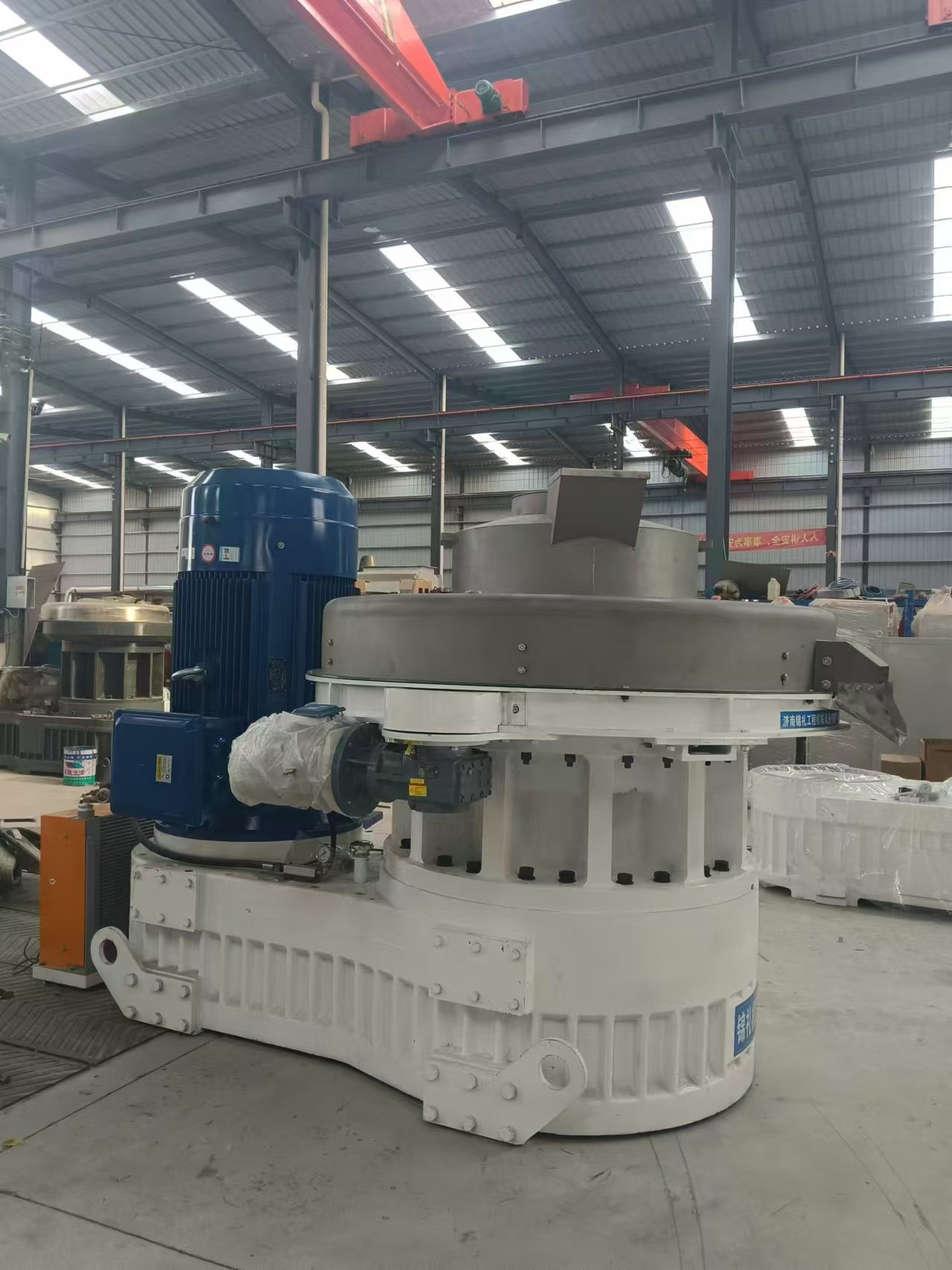

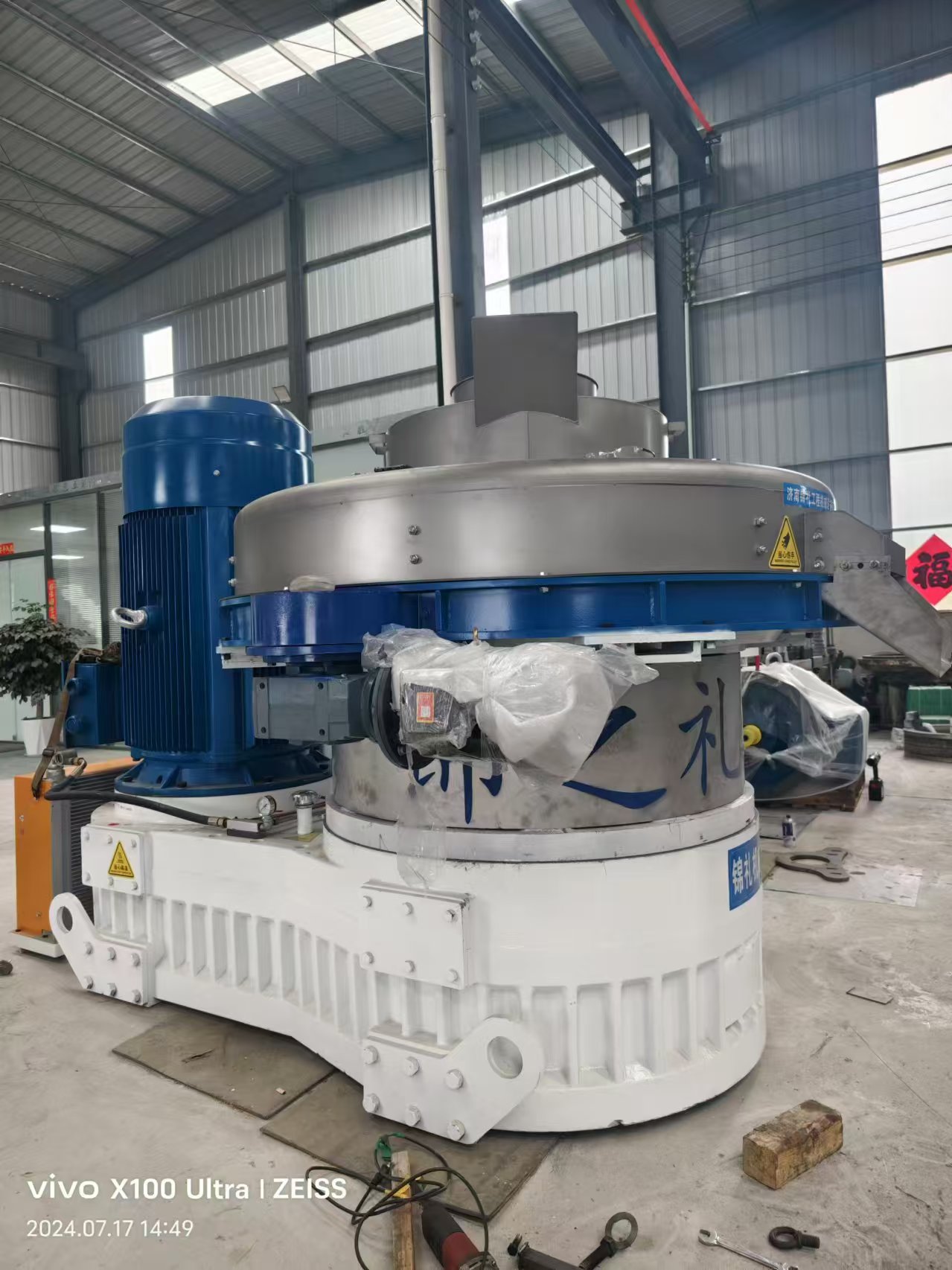

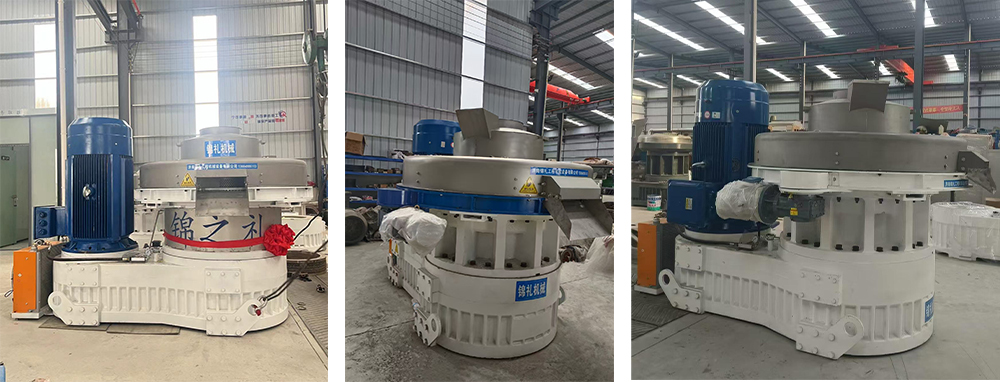

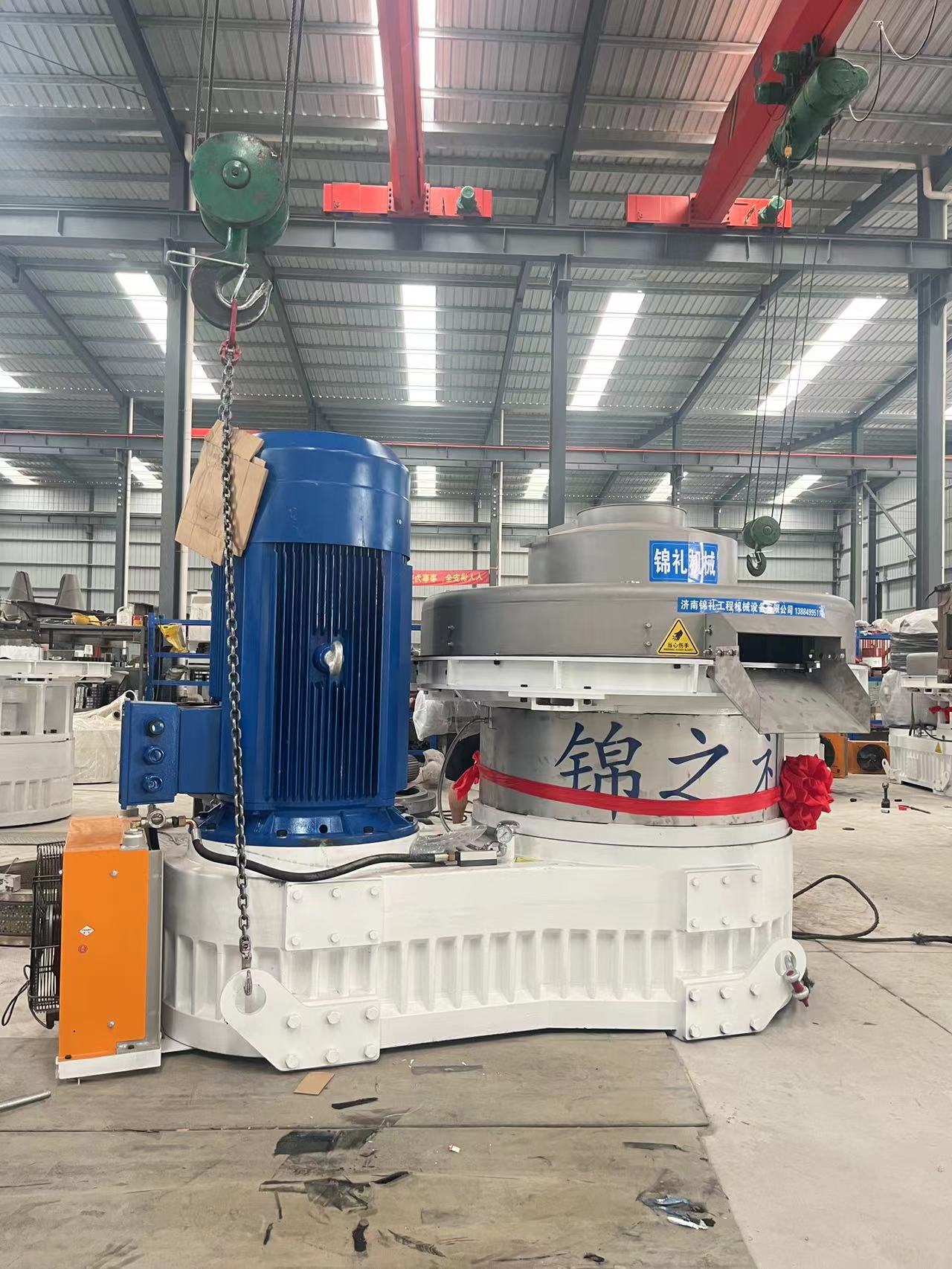

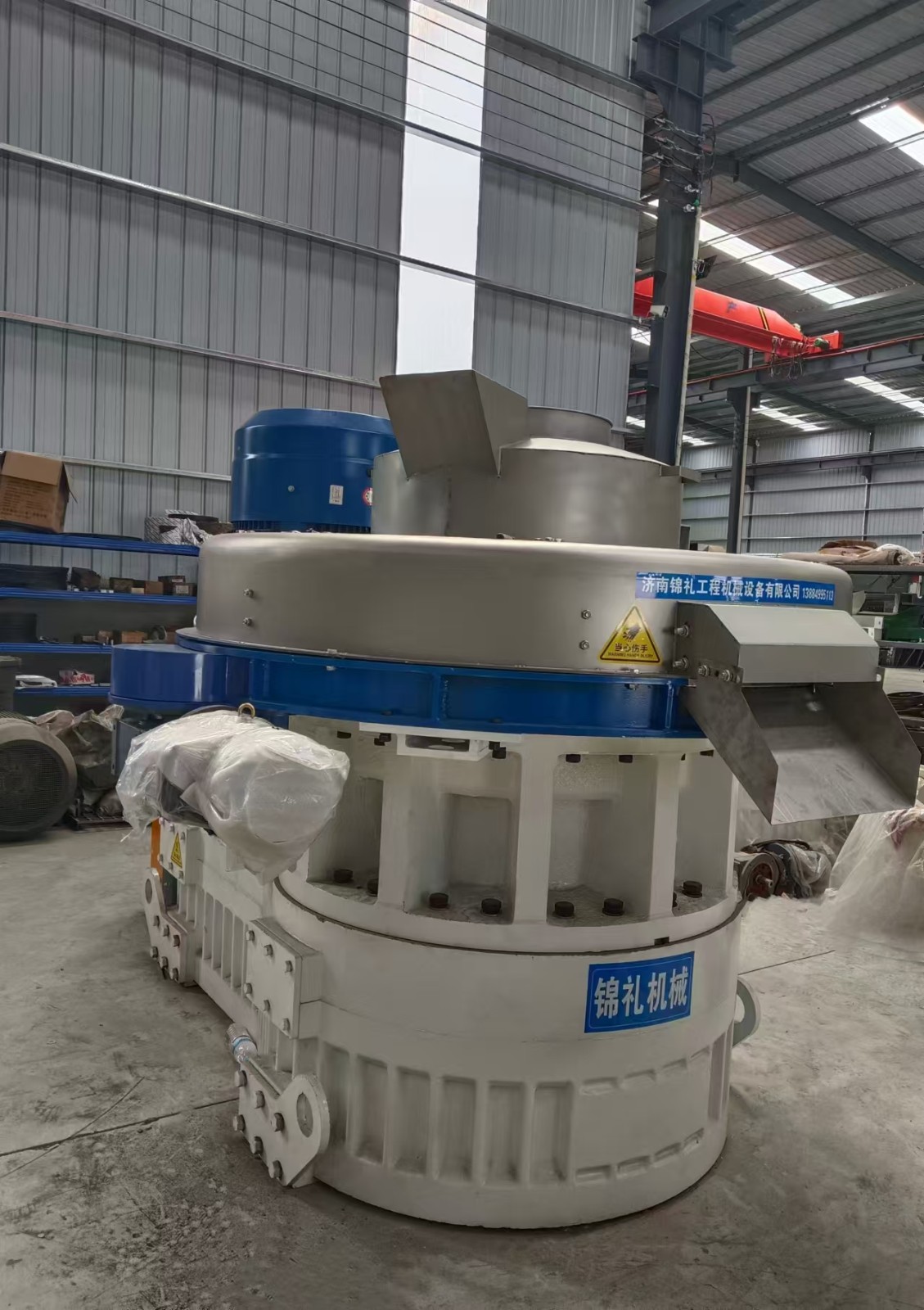

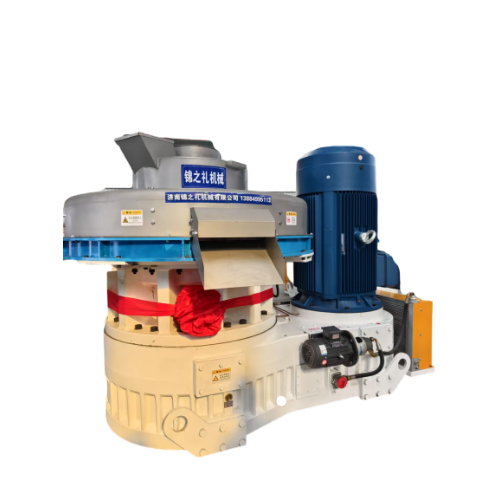

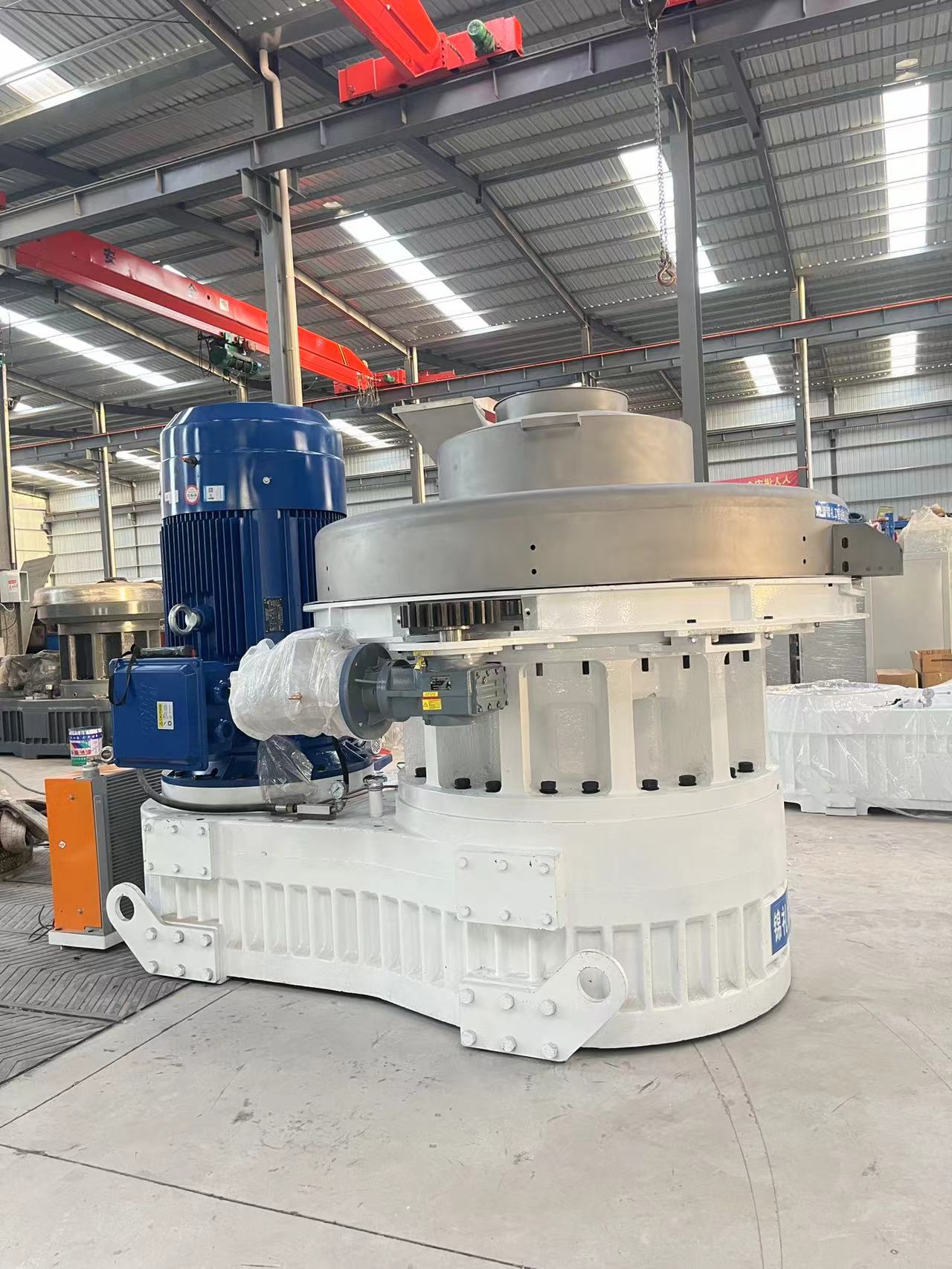

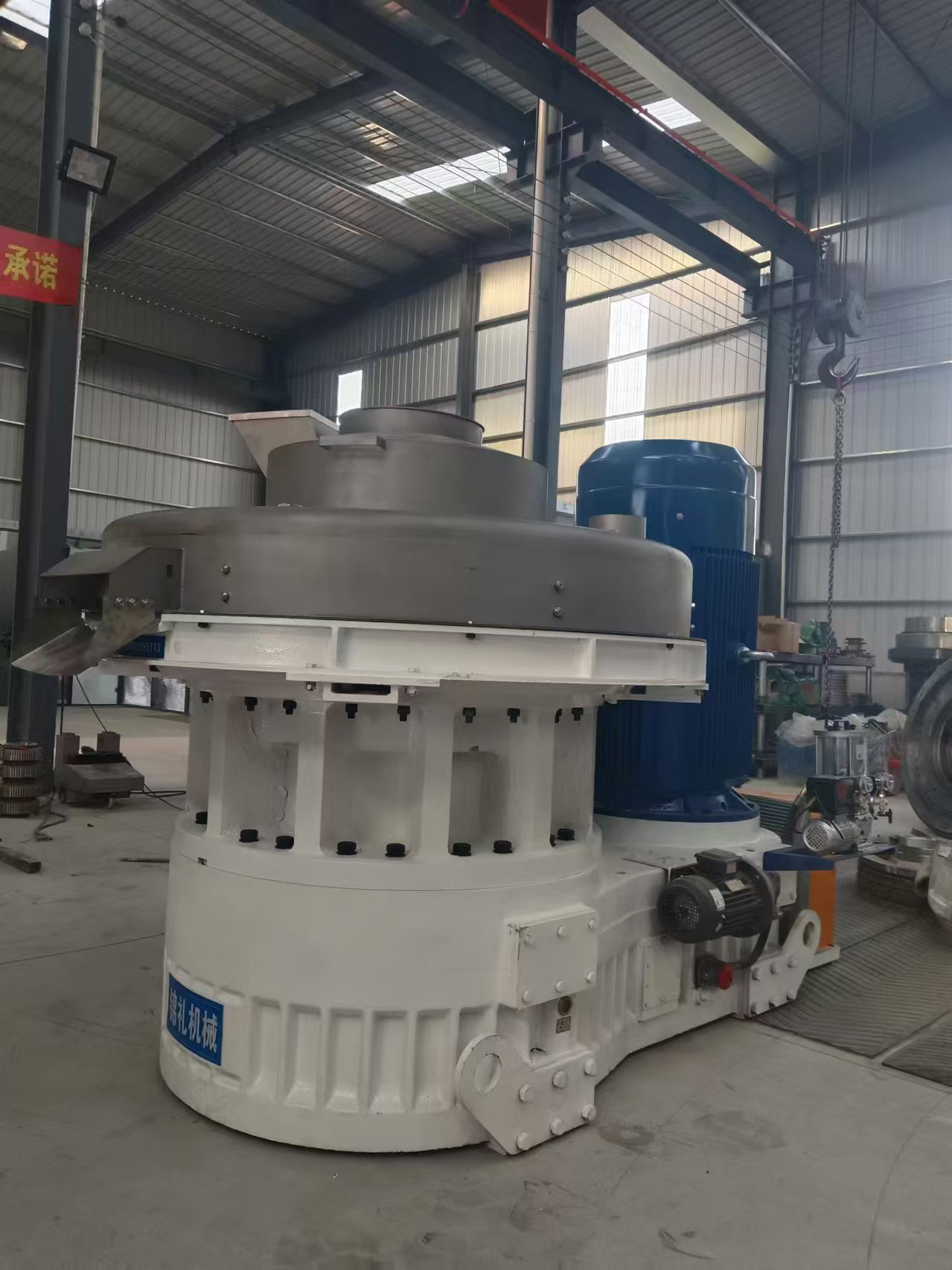

Biomass Pellet Machine
1. High production efficiency: the motor is directly connected to the gearbox of the reducer, increasing the kinetic energy conversion rate.
2. Long service life: the three-stage gear reducer is adopted to increase the load capacity, and the press wheel adopts the super wear-resistant alloy welding process, replacing the past surface carburisation treatment, and at the same time realising the protection of the mould.
3. Smooth operation: the gearbox of the reducer comes with a lubrication and cooling system, the machine can be achieved without stopping the lubricating oil cooling.
4. Not easy to be damaged: new toggle system, rotary components external, completely solved the toggle system is easy to be eroded by high-temperature steam problem. Wear-resistant stainless steel material, vacuum furnace quenching, mould hardness uniformity, no breakage, super wear-resistant.
The introduction of product
Biomass pellet machine features a direct connection between the motor and the gearbox, which enhances energy conversion efficiency and boosts overall production performance. The gearbox is a core component, employing a three-stage gear reduction to increase load capacity and ensure an exceptionally long service life. Additionally, it is equipped with a built-in lubrication cooling system that maintains optimal oil temperature without stopping the machine, supporting continuous, reliable operation.
The new material handling system addresses previous issues with high-temperature steam erosion by placing the rotating components externally. The core components, including the molds and press rollers, are designed for superior durability. The molds are crafted from wear-resistant stainless steel and subjected to vacuum furnace quenching for uniform hardness and exceptional wear resistance. The press rollers utilize a highly durable alloy welding process, replacing the older carbon diffusion treatment, which extends their lifespan and provides better protection for the molds.
Product features
1.The motor is directly connected to the reducer's gearbox, which enhances the kinetic energy conversion rate and boosts overall production efficiency.
2.The three-stage gear reducer increases load capacity, while the press wheel uses a super wear-resistant alloy welding process instead of the previous surface carburization treatment. This design extends the press wheel's service life and offers better protection for the mold.
3.The gearbox features a built-in lubrication and cooling system, allowing for effective cooling of the lubricating oil without needing to stop the machine, ensuring smooth operation.
4.The new toggle system, with external rotary components, addresses the issue of high-temperature steam erosion, ensuring greater durability. The molds are made from wear-resistant stainless steel and undergo vacuum furnace quenching, resulting in uniform hardness and exceptional wear resistance, with no breakage.
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL760 | 160 | 6-12 | 2-2.5 | 2350*1400*1750 | 6T | |
JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |

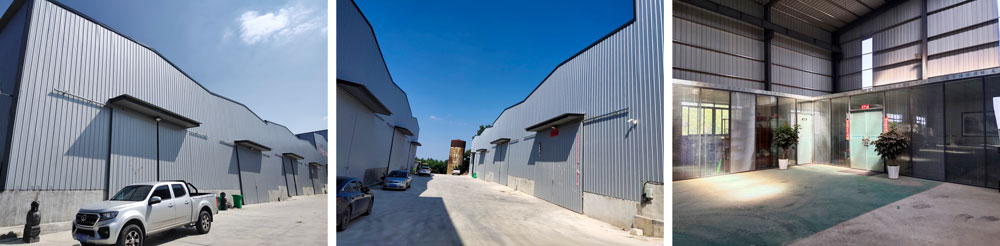

Company Profile
