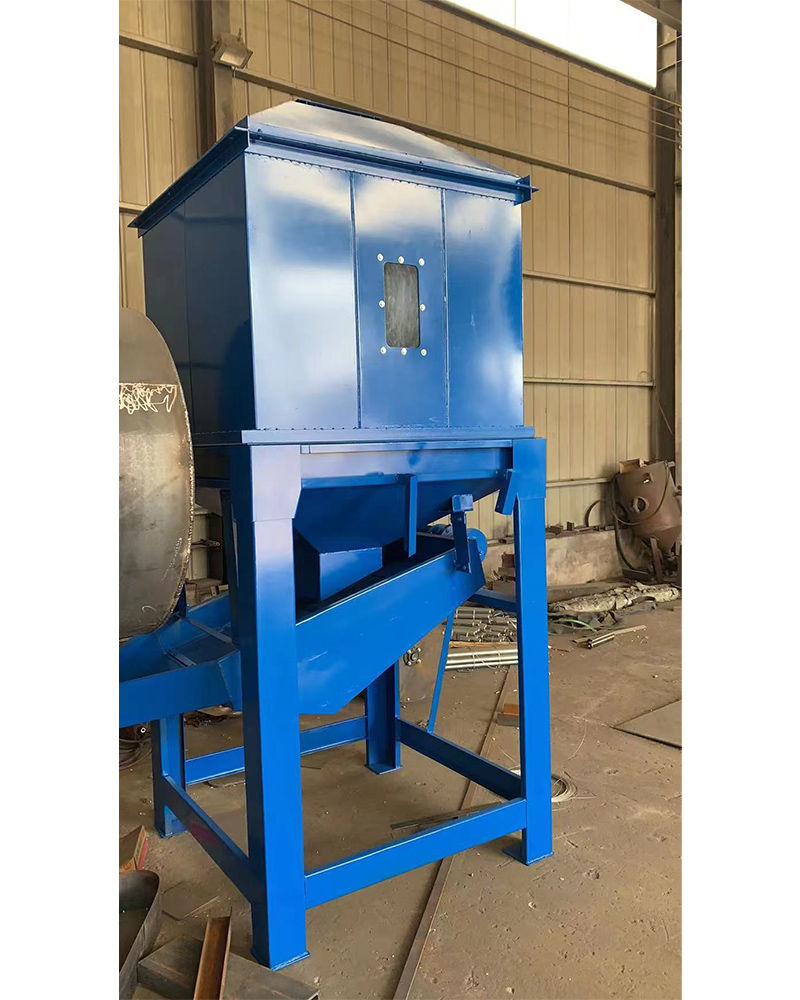

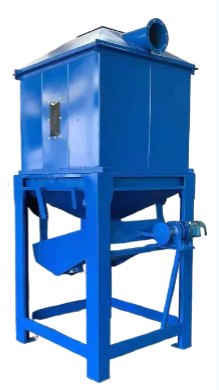

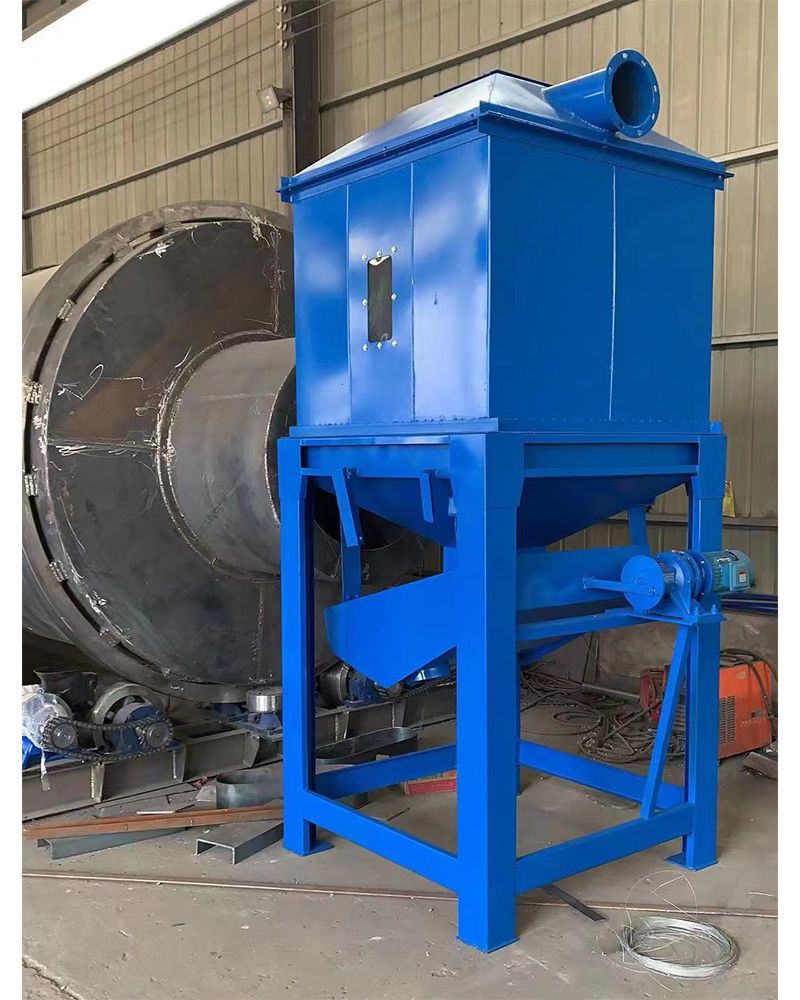

SKLN-1.5 Counterflow Coolers

The introduction of product

1. Components
   The counterflow cooler includes an upper casing for enclosure, an intermediate bin for holding, a cooling net for heat - transfer, a vibrating screen for separation or even distribution, a supporting frame, an observation window for monitoring, a dust - catching bag, and a fan for driving airflow.

2. Function in Production
   It cools high - temp (about 70°C) granulated particles. High - temp particles are prone to break and generate water vapor. Cooling them reduces temperature and humidity, facilitating transport, storage, and custody. Cooled particles can be directly packaged, making it essential for the production line to move pellets to the packing section.

   Advantages over Old Models
   Made of thick galvanized sheets, the new cooler has high density. This makes it resistant to deformation and corrosion, resulting in a long service life compared to old - style coolers.

Product Features

The machine is equipped with an exclusive cooling mechanism where the cooling air and particles move in opposite directions. This enables the material to be cooled gradually from the top downwards. It overcomes the drawbacks of common vertical coolers such as particle surface cracking due to sudden cooling, the difficulty of dissipating water and heat in the core during the cooling process, and brittleness.

1. The counterflow cooler is installed in a modular structure, which is convenient for transportation and installation.

2. The counterflow cooler uses a special vibration - type mechanism to ensure smooth material discharge.

3. The countercurrent cooler is equipped with a material leveler that can monitor the material position in the silo in real - time.

4. The countercurrent cooler applies the countercurrent cooling principle to ensure the particles are cooled uniformly and thoroughly.

Parameter
