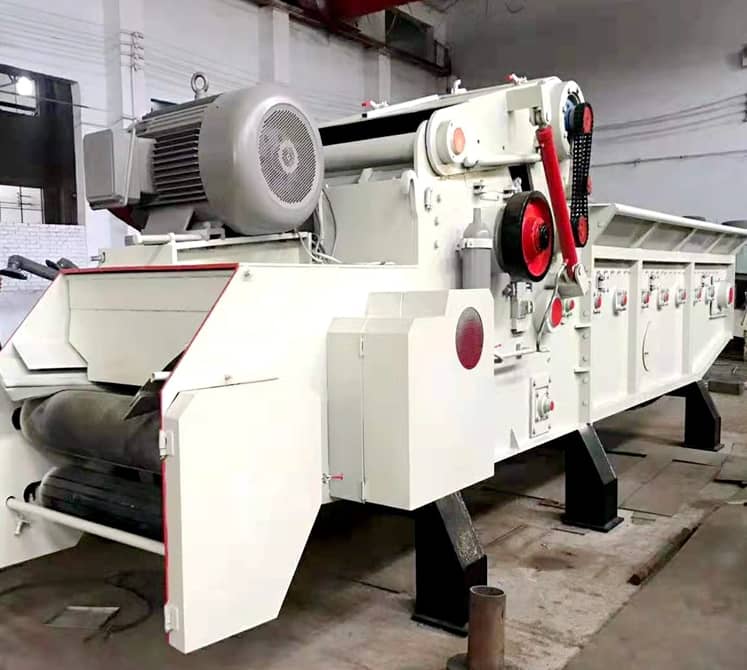

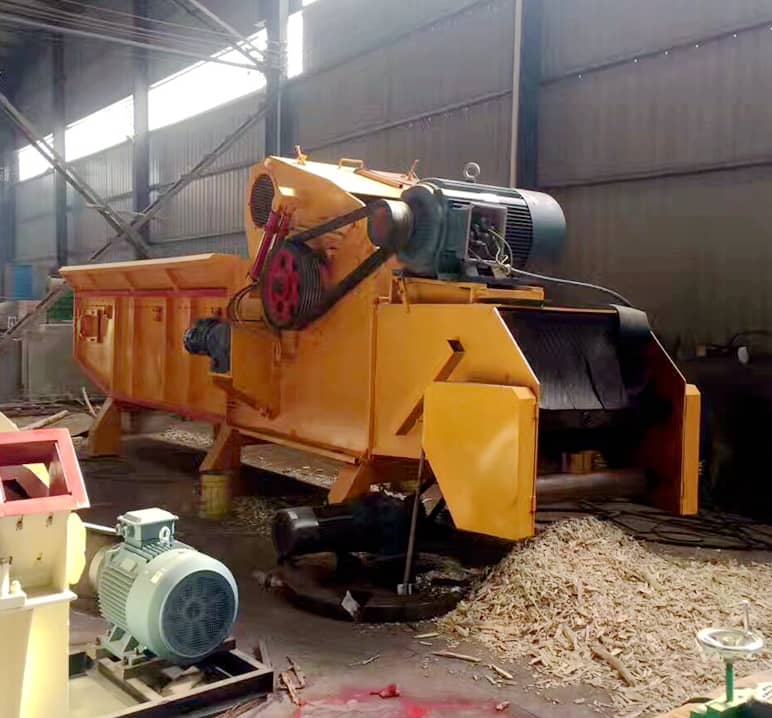

Biomass Pulverizer

Locking Sets

We use four-piece tightening sets instead of two-piece ones wherever possible, significantly improving durability and reducing the need for frequent replacements.

Hydraulic Oil Jacks

Two high-standard hydraulic oil jacks and a safety lever are installed at the forced feeding section to ensure safe hammer head replacement and maintenance.

Bearings

Only national-standard bearings from Shandong are used — no unbranded or low-quality products.

Knife Roller Speed

Our knife roller runs at 888–926 RPM, compared to 600 RPM from most competitors.

This ensures greater crushing power, reduced labor time, and energy efficiency, proving the high durability of our components.

Contact Now E-Mail Telephone WhatsApp

Product Details

Advantages

Energy - Efficient: Optimized transmission system reduces power consumption while ensuring high - efficiency pelletizing, helping to lower your production costs.

Easy Upkeep: Designed for convenient maintenance. Quick - access lubrication points and modular components make routine maintenance and part replacement straightforward.

Safe Operation: Equipped with safety devices like overload protection and emergency stop switches to safeguard the safety of operators during operation.

Whether you are engaged in biomass fuel production, renewable energy development, or agricultural waste utilization, our biomass pellet machine will be a dependable and efficient tool to enhance your productivity. Contact us now to get the best price and comprehensive technical support!

Machine Features

Adjustable Knife Roller Speed
Modular components allow customized adjustment of knife roller speed, enabling precise control over discharge particle size and production capacity to meet diverse operational needs.
Hydraulic Forced Feeding System

Hydraulic-driven cylinder piston adjusts the swing device to automatically adapt to material height variations.
Intelligent pressure adjustment of the upper feeding roller based on raw material types ensures smooth feeding and broad material compatibility.

Quick-Release Maintenance Design
Hydraulic-powered quick-opening machine cover facilitates effortless access for inspecting and replacing flying knives, screens, and other components—reducing maintenance downtime by 50%.

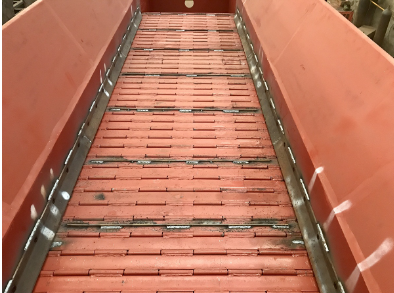

High-Manganese Steel Chain Plate Conveyor

10mm-thick manganese steel construction (austenitic carbide structure with water-toughened treatment):
✔ 22,000-hour service life (11x longer than traditional belt conveyors)
✔ Self-hardening surface under impact for continuous wear resistance
✔ High-friction design eliminates feeding delays and blockages

Optimized Chain Plate Length
Precision-calibrated chain length matches operational parameters to maximize throughput efficiency and minimize energy consumption.
Dual Control Operation

Fixed control panel with intuitive interface
IP65-rated wireless remote for safe operation within 15m range

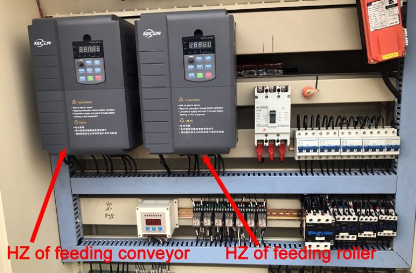

Intelligent Frequency Conversion Control

Auto-adaptive feeding speed based on:
➤ Material hardness and moisture content
➤ Real-time main motor load monitoring
Energy-saving mode reduces power consumption by 30% during no-load operation.

Multi-Level Overload Protection

Soft-start motor with automatic circuit breaker
Emergency stop interlock system
Thermal protection for all drive components

Auto-Blockage Recovery System

Dual-directional feeding mechanism reverses automatically during blockages
PLC-controlled speed adjustment:
▶ Increases feeding at <60% load
▶ Reduces speed at >85% load

Wireless remote control for real-time operation.

Integrated Magnetic Separator
Industrial-grade electromagnetic unit removes ferrous impurities (nails, screws) from processed materials—ideal for construction waste and pallet recycling applications.

Key Advantages

CE-certified hydraulic system for EU compliance
Wear parts with 18-month warranty
Optional dust collection kit for environmental standards
Contact us for tailored solutions based on your material processing requirements!
