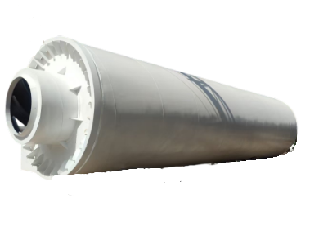

Golden Equation Single - Cylinder Dryer
Features:
The design of the lifting plate in the cylinder is multi - angle, so that the material forms a curtain in the cylinder.
The material and hot air contact surface is large, the thermal efficiency is high, and the drying effect is good.
The structure design is reasonable, which is conducive to maintenance.
The material has a wide range of applications, and can be used for the drying of powder, wood chips, silk materials, etc.
Product introduction:
The rotary dryer primarily consists of a cylinder body, a roller ring, a base retaining roller, and a tail dust - removing device. Inside the cylinder body, the hot air and the material come into contact. The material is arranged in a way that enables full contact with the hot air, thereby attaining the drying effect.
The Single - Cylinder Dryer series products are mainly applied to dry powdery, granular, small - lump and other wet materials. They are extensively used across the energy, fertiliser, chemical, and pharmaceutical industries.
Usage in Biomass Granulation
In the biomass granulation process, if the raw material moisture does not meet the granulation requirements, it needs to be dried. Drum dryer is widely used drying equipment, can dry wood chips, straw, rice and other materials. The equipment is simple to operate and stable in operation.
Working Principle
1.The hot air enters into the dryer cylinder from the hot air furnace.
2.The material enters from the inlet.
3.The material is lifted up by the lifting board in the dryer.
4.Then the hot air contacts with the material and takes away the water in the material.
5.The material comes out from the discharge port, and the hot air is drawn away from the upper end.
6.The travelling of the material mainly relies on the propelling effect of the lifting board.Equipment ConfigurationDrum dryer itself can not work.
Generally also need to be equipped with a heat source (hot air furnace), fans, shakelong, and sometimes dust removal equipment.
Component Composition：The drum dryer itself consists of cylinder, inlet, outlet, toothed ring and aperture.
Product features
1. The drum dryer has a large drying capacity, capable of handling large quantities of wet materials, enhancing work efficiency.
2. The drum dryer operates smoothly, reducing the failure rate and ensuring continuous operation.
3. The drum dryer features low energy consumption, saving energy and reducing production costs.
4. The drum dryer offers convenient operation, simplifying the process and making it easy to use and maintain.
5. The drum dryer delivers high output, ensuring high production efficiency and meeting the needs of large-scale production.
Parameter
Type | Model | Configuration | Evaporation（T/H） |
Single-cylinder dryer | HYHGφ1.5-12m | Main machine（7.5kw）；Fan（15kw）；Shaklon（φ1400）；Electric control cabinet； | 0.5-0.75 |
HYHGφ1.5-15m | Main machine（11kw）；Fan（18.5kw）；Shaklon（φ1500）；Electric control cabinet； | 0.5-0.75 | |
HYHGφ1.6-18m | Main machine（15kw）；Fan（22kw）；Shaklon（φ1600）；Electric control cabinet； | 0.7-1 | |
HYHGφ1.8-15m | Main machine（15kw）；Fan（22kw）；Shaklon（φ1600）；Electric control cabinet； | 1-1.3 | |
HYHGφ1.8-18m | Main machine（15kw）；Fan（22kw）；Shaklon（φ1600）；Electric control cabinet； | 1-1.3 | |
HYHGφ2.0-20m | Main machine（18.5kw）；Fan（30kw）；Shaklon（φ1800）；Electric control cabinet； | 1.4-2.0 | |
HYHGφ2.0-24m | Main machine（18.5kw）；Fan（30kw）；Shaklon（φ1800）；Electric control cabinet； | 1.4-2.0 | |
HYHGφ2.2-24m | Main machine（18.5kw）；Fan（30kw）；Shaklon（φ1800）；Electric control cabinet； | 1.7-2.5 | |
HYHGφ2.4-24m | Main machine（22kw）；Fan（37kw）；Shaklon（2-φ1500）；Electric control cabinet； | 2.2-3 | |
HYHGφ2.8-24m | Main machine（30kw）；Fan（55kw）；Shaklon（4-φ1200）；Electric control cabinet； | 2.5-3.6 | |
HYHGφ2.2-8-Ⅲ | Main machine（12kw）；Fan（45kw）；Shaklon（2-φ1200）；Electric control cabinet； | 1.3-1.8 | |
HYHGφ2.4-9-Ⅲ | Main machine（12kw）；Fan（45kw）；Shaklon（2-φ1200）；Electric control cabinet； | 1.6-2.5 | |
HYHGφ2.6-12-Ⅲ | Main machine（22kw）；Fan（55kw）；Shaklon（2-φ1400）；Electric control cabinet； | 2.0-2.8 | |
HYHGφ2.8-12-Ⅲ | Main machine（22kw）；Fan（55kw）；Shaklon（2-φ1400）；Electric control cabinet； | 2.1-3.0 | |
HYHGφ3.0-12-Ⅲ | Main machine（30kw）；Fan（75kw）；Shaklon（2-φ1500）；Electric control cabinet； | 2.4-3.5 | |
HYHGφ3.2-12-Ⅲ | Main machine（30kw）；Fan（90kw）；Shaklon（2-φ1500）；Electric control cabinet； | 3.0-5.0 |
