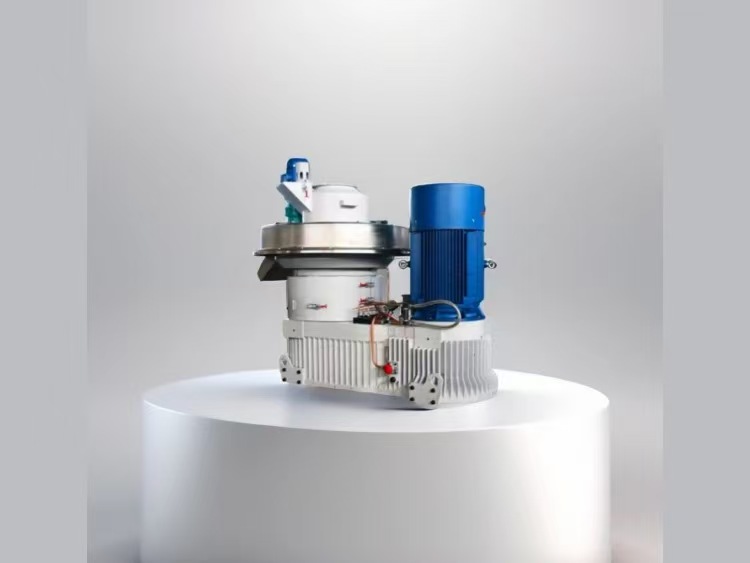

Versatile Type 850 Bagasse Pellet Machine
High Automation
This machine features high automation, eliminating the need for constant supervision. During operation, you can monitor the temperature of key components and the equipment's current via the control panel, tablet, or mobile app.
Flexible Lubrication Mode
Easily switch between independent and non-independent lubrication modes.

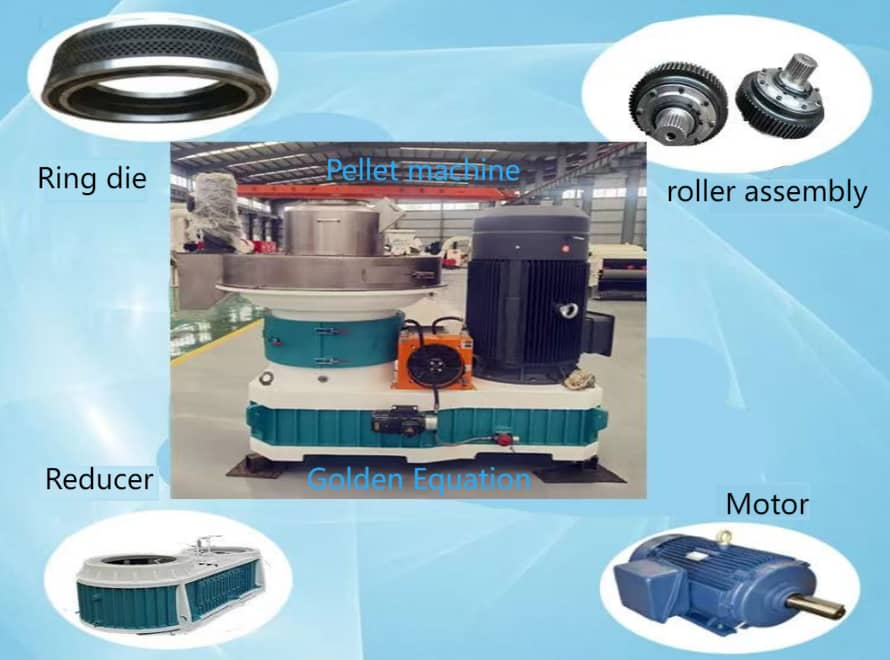

Upgraded Drive System
The reducer's drive has been enhanced. The gearbox employs a self-developed large gear with a three-level drive system. By increasing the module, the gears are made stronger.
Superior Die Performance
The die, crafted from stainless steel, offers excellent wear resistance and high production capacity. Our biomass pellet machine's die is made of integral carburized stainless steel, highly wear-resistant and stable. With an enlarged discharge area, it boosts production capacity and reduces costs.
Applicable Materials
This biomass pellet machine can process a wide range of materials. It can compress forestry materials, including trees, bark, branches, wood chips, and agricultural raw materials like crop straws. Additionally, it can handle various solid wastes, such as engineering construction formwork, fruit shell residues, and industrial sludge, turning them into biomass pellet fuel. This not only promotes energy conservation and emission reduction but also plays a vital role in building a sustainable ecological environment.
Product Features
1.Improved Kinetic Energy Conversion
The motor directly connects to the reducer's gearbox. This direct - drive design significantly increases kinetic energy conversion efficiency, greatly enhancing overall production output.
2.Heavy - Duty Press Wheel and Strong Load - Bearing
A three - stage gear reducer boosts the machine’s load - bearing capacity. The press wheel now uses super - wear - resistant alloy welding instead of surface carburization, extending its lifespan and protecting the mold for stable, long - term operation.
3.Efficient Lubrication and Cooling
The gearbox’s integrated lubrication - cooling system cools lubricating oil without halting the machine, ensuring seamless, continuous operation and reducing downtime.
4.Reliable Toggle and Durable Molds
The new external rotary toggle system resists high - temperature steam erosion, enhancing durability. Molds made of wear - resistant stainless steel and vacuum - furnace quenched have consistent hardness, superior wear resistance, and breakage resistance, ensuring reliable performance.
Product Attributes
Model No.：GE850 | Brand:GOLDEN EQUATION |
Energy Saving:Energy Saving | Automatic Grade:Semiautomatic |
control mode：Manual control | Warranty：1Year |
Customized：Customized | Spare Parts：Roller Shell+Mould |
Moisture:13%-15% | Application:Press Wood Sawdust Into Pellets |
Motor:Chinese Famous Brand | Pellet Diameter:6-12mm Customizable |
After-sale Service:Engineers are available and they are eligible to apply for visas. | |
