Wood Pellet Machine
Supply Ability & Additional Information
Packaging： shipping by container
Productivity: 2.5-3.5 T/H
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 50 set per month
Port: Qingdao, Shanghai, etc.
Payment Type: L/C,T/T,D/P,Western Union
Incoterms: FOB,CFR,CIF,EXW
Packaging & Delivery
Selling Units: Set/Sets
Package Type: shipping by container
Container types: 40HQ/40FR (flat rack container), with support for oversized cargo transportation.
Compliance Documents:
Applicable Materials for Type 850 Bagasse Pellet Machine
The Type 850 Bagasse Pellet Machine is great at processing sawdust. As a common woodworking by - product, sawdust can be efficiently made into high - quality biomass pellets by this machine.
Its advanced design and strong compression let it handle large amounts of sawdust, turning it into dense, uniform pellets used in heating, power generation, and industrial boilers.
Besides sawdust, it can process other fibrous materials like bagasse from sugarcane and various agri - forestry by - products. This wide applicability makes it a valuable tool for industries turning waste into energy, helping with conservation and a greener environment.
Product Features
Enhanced Kinetic Energy Conversion
Direct motor - gearbox connection boosts energy conversion, enhancing production efficiency.
Robust Load - Bearing & Durable Press Wheel
Three - stage reducer increases load capacity. Super - wear - resistant alloy - welded press wheel extends life and protects mold.
Efficient Lubrication & Cooling
Built - in system cools oil during operation for uninterrupted performance.
Reliable Toggle System & High - Quality Molds
External rotary toggle resists steam erosion. Vacuum - quenched, wear - resistant stainless steel molds ensure consistent performance.
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL2-850 | 250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T | |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |
1. Product Overview

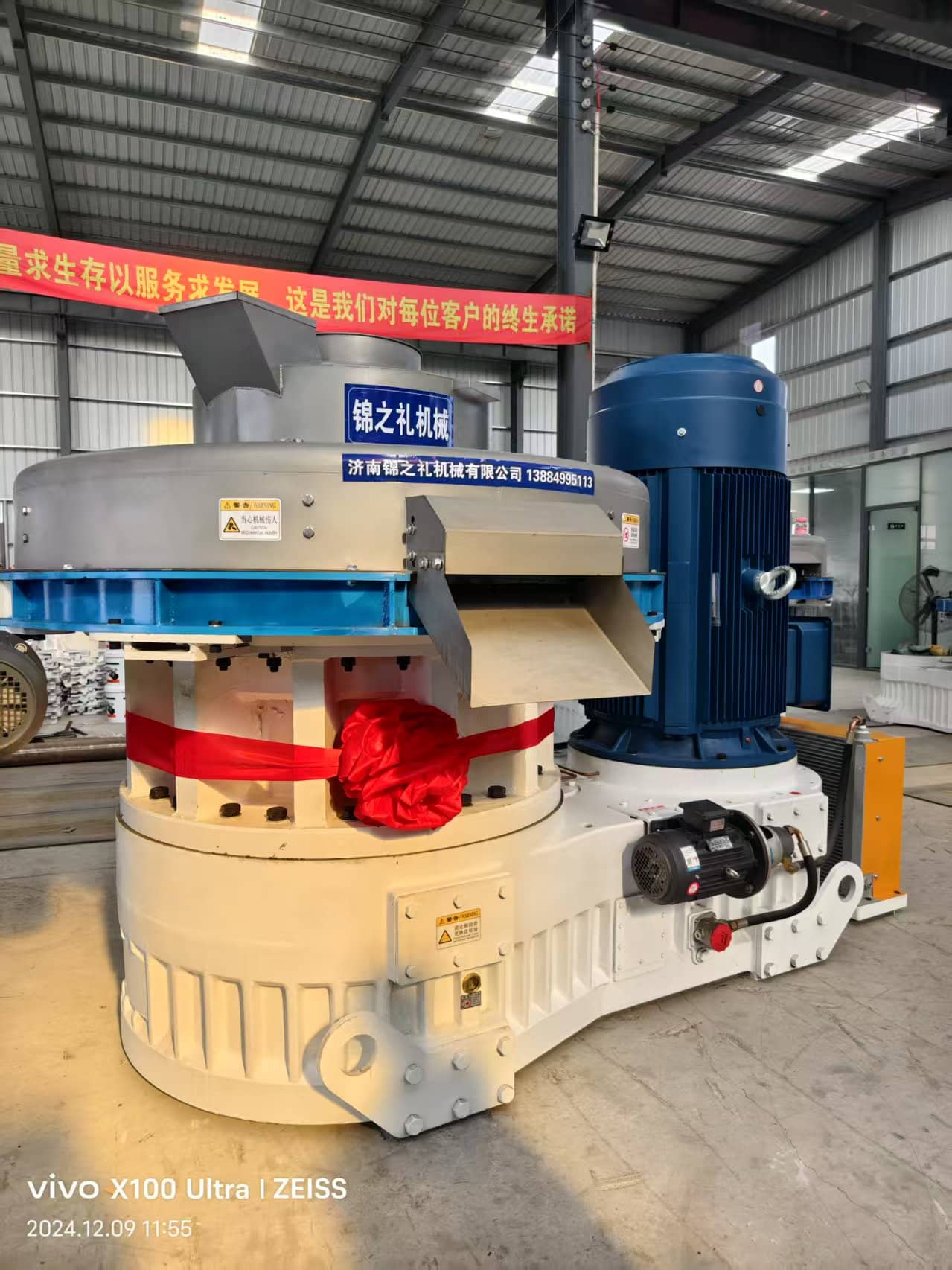

The 850 Type Wood Pellet Machine is a high - performance biomass granulation equipment designed to transform a variety of biomass materials into high - density pellets. With a production capacity ranging from 3 to 5 tons per hour (T/H), it is suitable for both small - scale enterprises and large - scale industrial production.
2.Product Features
Efficient Kinetic Energy Transfer：The motor directly connects to the reducer's gearbox. This setup boosts kinetic energy conversion, significantly enhancing production efficiency.
Sturdy Press Wheel with Longevity：A three - stage gear reducer increases load - bearing capacity. The press wheel, now using super - wear - resistant alloy welding instead of surface carburization, lasts longer and better protects the mold for stable operation.
Smooth Lubrication and Cooling：The gearbox has a built - in lubrication and cooling system. It cools the oil during operation, ensuring continuous and trouble - free running.
Durable Toggle and High - Quality Molds：The new external rotary toggle system resists high - temperature steam erosion. Molds made of wear - resistant stainless steel, vacuum - furnace quenched, are hard, wear - resistant, and less likely to break, ensuring reliable performance.
Product Attributes
Model No.GE850 | Brand:GOLDEN EQUATION |
Energy Saving:Energy Saving | Automatic Grade:Semiautomatic |
control mode：Manual control | Warranty：1Year |
Customized：Customized | Spare Parts：Roller Shell+Mould |
Moisture:13%-15% | Application:Press Wood Sawdust Into Pellets |
Motor:Chinese Famous Brand | Pellet Diameter:6-12mm Customizable |
After-sale Service:Engineers are available and they are eligible to apply for visas. | |
3. Working Principle
The working process of the 850 Type Wood Pellet Machine is as follows:
Feeding
The prepared biomass materials are fed into the machine through a feeding system. The feeding system is designed to ensure a continuous and stable feed rate, which is crucial for the smooth operation of the granulation process.
Compression and Granulation
Inside the machine, the materials are first pre - pressed and then forced through the holes of the ring die by the rotating rollers. The high pressure during this process compresses the biomass materials into dense pellets. The diameter of the pellets can be adjusted according to individual needs, usually available in sizes such as 6mm, 8mm, and 10mm.
Discharging
The formed pellets are discharged from the machine and then can be further processed, such as cooling, screening, and packaging.
Die: stainless steel，with high wear resistance and high capacity. Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.
