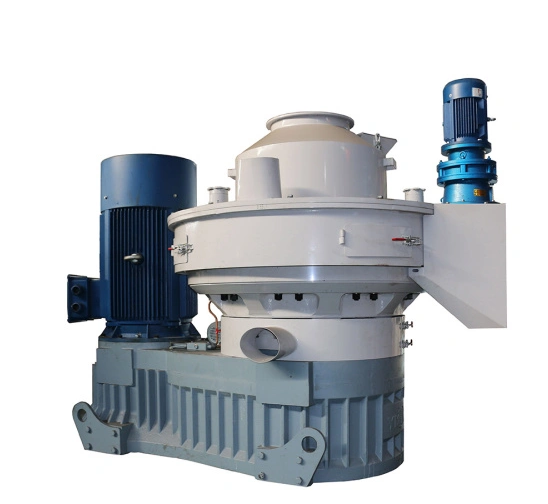

Custom - made Type 560 Bagasse Pellet Machine

Superior Production Efficiency: The motor is directly coupled to the reducer's gearbox, which significantly boosts the kinetic energy conversion rate, ensuring faster and more productive operations.

Extended Durability: By employing a three - stage gear reducer, the machine's load - bearing capacity is enhanced. The press wheel utilizes a super wear - resistant alloy welding technique, replacing the previous surface carburization method. This not only improves the wheel's durability but also safeguards the mold, resulting in a longer service life.

Smooth and Reliable Operation: The reducer's gearbox is equipped with an integrated lubrication and cooling system. This allows for continuous lubricant cooling without the need to halt the machine, ensuring consistent and trouble - free operation.

Enhanced Resistance to Damage: Thanks to the innovative toggle system, with its rotary components placed externally, the issue of the toggle system being easily corroded by high - temperature steam is completely resolved. Constructed from wear - resistant stainless steel and processed through vacuum furnace quenching, the mold features uniform hardness, preventing breakage and offering exceptional wear resistance.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Attributes

Model No.：GE560	Brand: GOLDEN EQUATION
Energy Saving:Energy Saving	Automatic Grade:Semiautomatic
control mode：Manual control	Warranty：1Year
Customized：Customized	Spare Parts：Roller Shell + Mould
Moisture:13%-15%	Application: Press Wood Sawdust Into Pellets
Motor:Chinese Famous Brand	Pellet Diameter:6-12mm Customizable
After-sale Service:Engineers are available and they are eligible to apply for visas.

Product Features

High Efficiency: Direct motor - reducer connection maximizes kinetic energy conversion, increasing production efficiency.
Enhanced Durability: Three - stage gear reducer boosts load - bearing. Super wear - resistant alloy welding on the press wheel replaces carburization, extending its life and protecting the mold.
Smooth Operation: Integrated gearbox lubrication and cooling system allows continuous oil cooling without shutdown, ensuring seamless operation.
Long - lasting Design: Novel toggle system with external rotary parts resists high - temperature steam corrosion. Wear - resistant stainless - steel molds, vacuum - furnace quenched, are hard, wear - proof, and unbreakable.

Parameter

Category	Model	Power(KW)	Pellet size(mm）	Output(t/h)	Overall Dimension(mm)	Machine Weight(T)
Vertical ring mould	JL560	132	6-12	1.5-2	220012801640	5T-5.5T
Vertical ring mould	JL560	160	6-12	1.5-2	220012801640	5T-5.5T

The discharging output varies due to different feeding at the front - end. For details, please leave a message for consultation.
