Bagasse Pellet Machine

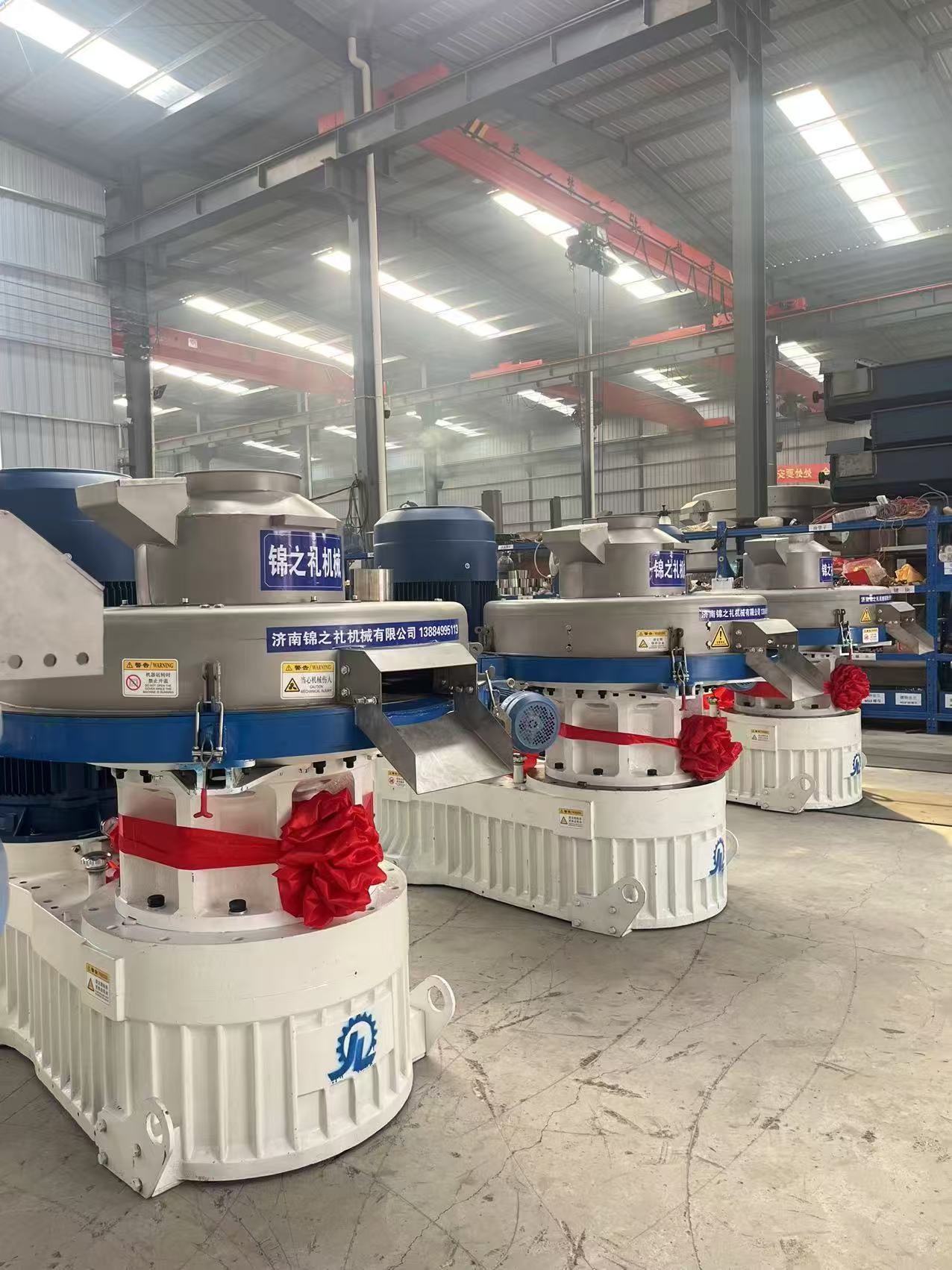

Type 560 Bagasse Pellet Machine
Boosted Production Efficiency
The direct connection of the motor to the reducer's gearbox in the Type 560 Bagasse Pellet Machine elevates the kinetic energy conversion rate, resulting in high production efficiency.
Prolonged Service Life
With the employment of a three - stage gear reducer, the load - bearing capacity is augmented. The press wheel now utilizes a super wear - resistant alloy welding process, substituting the previous surface carburisation treatment. This not only extends the lifespan of the press wheel but also safeguards the mould, thus ensuring a long service life.
Smooth Operational Performance
The gearbox of the reducer is furnished with a lubrication and cooling system. This enables the cooling of the lubricating oil without halting the machine, ensuring smooth operation.
Enhanced Durability
The novel toggle system, featuring external rotary components, thoroughly addresses the issue of the toggle system being prone to corrosion by high - temperature steam. The moulds, crafted from wear - resistant stainless steel and treated by vacuum furnace quenching, possess uniform hardness, are highly resistant to breakage, and are extremely wear - resistant, making the machine less likely to be damaged.
Type 560 Bagasse Pellet Machine: Top - Notch Performance
1. High - efficiency Production
In our Type 560 Bagasse Pellet Machine, the motor directly connects to the reducer's gearbox. This setup boosts kinetic energy conversion, enhancing overall production efficiency. It helps you churn out bagasse pellets quickly, meeting production demands and increasing profits.
2. Long - lasting Performance
Equipped with a three - stage gear reducer, the machine has a high load - bearing capacity. The press wheel now uses a super wear - resistant alloy welding process instead of surface carburization. This extends the press wheel's lifespan and better protects the mold, reducing maintenance and replacement costs.
3. Smooth Operation
The gearbox's integrated lubrication and cooling system allows for continuous oil cooling without stopping the machine. This ensures smooth operation, improves pellet quality, and minimizes component wear, providing a seamless production process.
4. Exceptional Durability
The new toggle system with external rotary components solves the high - temperature steam corrosion problem. The molds, made of wear - resistant stainless steel and vacuum - furnace - quenched, have uniform hardness and are highly resistant to breakage. The machine can endure tough working conditions for a long time.
Choose the Type 560 Bagasse Pellet Machine for efficient, durable, and high - performing pellet production. Reach out to us today to place your order!
Product Attributes
Model No.:GE560 | Brand: GOLDEN EQUATION |
Energy Saving:Energy Saving | Automatic Grade:Semiautomatic |
control mode：Manual control | Warranty：1Year |
Customized：Customized | Spare Parts：Roller Shell + Mould |
Moisture:13%-15% | Application: Press Wood Sawdust Into Pellets |
Motor:Chinese Famous Brand | Pellet Diameter:6-12mm Customizable |
After-sale Service:Engineers are available and they are eligible to apply for visas. | |
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL560 | 160 | 6-12 | 2-2.5 | 2200*1280*1640 | 5T-5.5T |
The discharging output varies due to different feeding at the front - end. For details, please leave a message for consultation.
