Type 560 Bagasse Pellet Machine for Sale

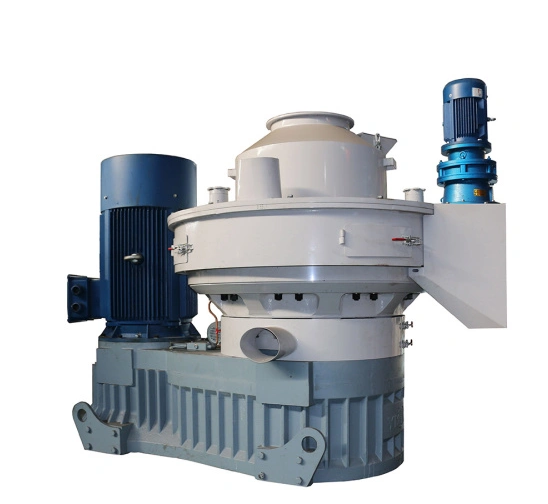

Type 560 Bagasse Pellet Machine
1. High production efficiency: the motor is directly connected to the gearbox of the reducer, increasing the kinetic energy conversion rate.
2. Long service life: the three-stage gear reducer is adopted to increase the load capacity, and the press wheel adopts the super wear-resistant alloy welding process, replacing the past surface carburisation treatment, and at the same time realising the protection of the mould.
3. Smooth operation: the gearbox of the reducer comes with a lubrication and cooling system, the machine can be achieved without stopping the lubricating oil cooling.
4. Not easy to be damaged: new toggle system, rotary components external, completely solved the toggle system is easy to be eroded by high-temperature steam problem. Wear-resistant stainless steel material, vacuum furnace quenching, mould hardness uniformity, no breakage, super wear-resistant.
Product Attributes
Model No.：GE560 | Brand: GOLDEN EQUATION |
Energy Saving:Energy Saving | Automatic Grade:Semiautomatic |
control mode：Manual control | Warranty：1Year |
Customized：Customized | Spare Parts：Roller Shell + Mould |
Moisture:13%-15% | Application: Press Wood Sawdust Into Pellets |
Motor:Chinese Famous Brand | Pellet Diameter:6-12mm Customizable |
After-sale Service:Engineers are available and they are eligible to apply for visas. | |
Product features
The direct connection between the motor and the reducer's gearbox improves the kinetic energy conversion rate and enhances the overall production efficiency.
With a three - stage gear reducer, the load - bearing capacity is increased. Moreover, instead of the previous surface carburization treatment, the press wheel adopts a super wear - resistant alloy welding process. This design not only prolongs the press wheel's service life but also provides better protection for the mold.
Thanks to the built - in lubrication and cooling system in the gearbox, the lubricating oil can be effectively cooled without machine shutdown, thus guaranteeing smooth operation.
The new toggle system, equipped with external rotary components, solves the problem of high - temperature steam erosion, ensuring higher durability. The molds, made of wear - resistant stainless steel and subjected to vacuum furnace quenching, have uniform hardness, excellent wear resistance, and are unbreakable.
Parameter
Category | Model | Power(KW) | Pellet size(mm） | Output(t/h) | Overall Dimension(mm) | Machine Weight(T) |
Vertical ring mould | JL560 | 132 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
| JL560 | 160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
The discharging output varies due to different feeding at the front - end. For details, please leave a message for consultation.
