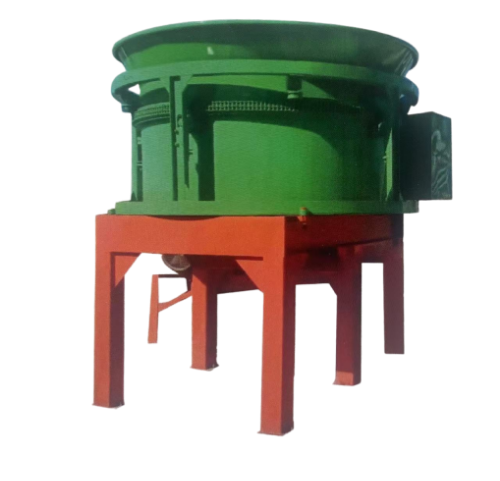

Product Introduction of Rotary Cutting Crusher
Overall Introduction
The Rotary Cutting Crusher is an excellent high - performance equipment meticulously designed to fulfill the material crushing needs of a wide range of industries. It shows outstanding performance when processing agricultural and biomass materials, striving to achieve efficient and accurate crushing operations.
The rotary cutting machine is a specialized piece of equipment for processing straw, logs, trays, stakes, etc. It functions like a professional wood crusher, capable of reducing bundles of straw into small particles. The equipment mainly consists of a base, gear drive, rotary box, and other components.
Crushing Scope
Its crushing ability covers a vast variety of materials. It can effectively handle different fibrous, scale - like substances such as thatch, corn stalks, and sorghum stalks. Through professional crushing methods, these materials are finely ground into a consistent powder, fully meeting various production needs. Precisely due to this, this equipment has become the preferred option for industries associated with crop straw processing and holds a vital position in key areas like straw - based fuel production and biomass power generation.
Feeding System
Large - diameter Feeding Design
The feeding port diameter is available in three practical sizes: 2000mm, 2500mm, and 3000mm. This innovative design greatly eases the feeding of piled or bundled materials. Whether it's a large quantity of straw in the field or tightly - packed forage bales, the equipment can smoothly accept them, effectively boosting feeding efficiency.
The feeding port is around 1 meter in height, allowing for a substantial single - feeding amount. It uses an intermittent feeding mode but can achieve continuous and unbroken crushing and spraying discharge. The unique rotating structure of the feeding port can deftly push the materials towards the crusher rotor, ensuring that the materials are continuously and steadily crushed into a powder. This significantly lessens the labor burden on workers during feeding and optimizes the entire crushing process, enhancing operational efficiency.
After crushing, the materials are forcefully ejected from the discharge port at high speed under the strong centrifugal force of the rotor. In most application situations, additional conveying equipment is unnecessary, further streamlining the production process and cutting down on operating costs.
Key Components
Disc Cutters and Hammer Blades
The disc cutters and hammer blades mounted on the crusher rotor are the core elements for the equipment's operation. During production, large - volume materials are first cut by the disc cutters for initial fragmentation, breaking them into smaller, more manageable pieces, which lays the groundwork for subsequent crushing.
Then, the hammer blades rapidly step in to further crush the pre - cut materials. Through this sequential and collaborative operation, the overall crushing efficiency is greatly enhanced, ensuring that the quality of the final output materials fully complies with high - standard requirements.
High - quality Material Selection
Core components like cutting knives and hammer blades are all made from high - quality alloy materials with excellent toughness and impact resistance. The disc cutters are carefully designed and manufactured using advanced techniques, featuring extremely high hardness and remarkable wear resistance. To further prolong the service life of the hammer blades, super - wear - resistant cemented carbide materials are specifically welded to their edges. This combination of high - quality materials and fine craftsmanship gives the equipment long - lasting, stable, and reliable performance.
Application Areas
The Rotary Cutting Crusher has extensive and significant application value across multiple industries. In production environments such as charcoal factories, straw coal factories, and biomass pellet processing plants, it is a crucial device for achieving efficient production. It can accurately crush raw materials into the desired form to meet production requirements, directly affecting product quality and production efficiency. Moreover, in fields related to general agricultural waste recycling and biomass power generation, which are essential for sustainable development, this equipment also plays an irreplaceable role, promoting the efficient conversion of resources and the production of clean energy, and contributing to environmental protection and sustainable growth.
After - sales Service
We offer comprehensive free technical support to customers. The entire machine comes with a one - year quality guarantee. During the warranty period, for quality issues not caused by human factors and excluding wear - and - tear parts, we will provide free maintenance and replacement services. Additionally, the equipment enjoys lifetime maintenance services (excluding auxiliary equipment, and charges will apply for the replacement of wear - and - tear parts and damage caused by human factors), ensuring that the equipment stays in good working condition throughout its service life and eliminating any concerns for customers.
