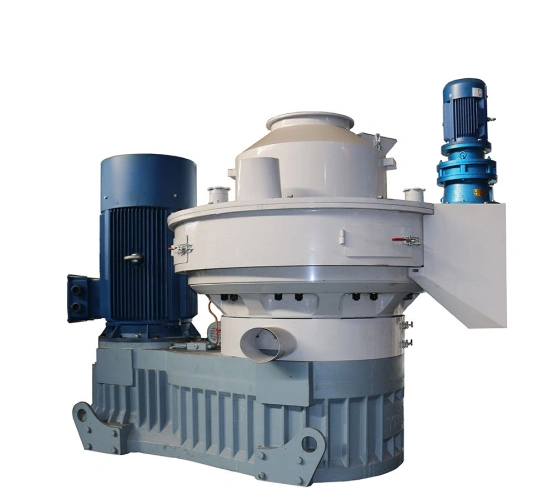

Generation Centrifugal Pellet Machine
• Reduction in agricultural waste
• Decrease in carbon emissions
• Cost-effective fuel alternative
• Demand from thermal power plants and industrial boilers
Applicable Materials
The biomass pellet machine has wide - ranging applications. It is capable of compressing forestry substances such as trees, bark, branches, and wood chips, along with agricultural crop straws. Additionally, it deals with waste efficiently. Items like discarded engineering formwork, fruit shell residues from food - processing operations, and industrial sludge can all be converted into biomass pellet fuel. This not only plays a role in energy conservation and emission reduction but also makes a positive contribution to maintaining a sustainable environment.
Model | POWER(KW) | Particle size(MM) | Output(T/H) | size(MM) | Weight(T) |
JL560 | 132/160 | 6-12 | 1.5-2 | 2200*1280*1640 | 5T-5.5T |
JL2-850 | 220/250 | 6-12 | 3.0-4.0 | 2800*1720*2130 | 10.7T |
JL2-850 | 280/315 | 6-12 | 4.0-5.0 | 2800*1720*2130 | 13.5T |
1.High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
2.Independent lubrication and non-independent lubrication can be switched.
3.Reducer drive strengthen.
The gearbox adopts independent research and development big gear with 3 level drive , module increased , gear strengths increased , The gears in gearbox quality assurance for five years!
4.Die: stainless steel，with high wear resistance and high capacity.
Diversified Real - time Monitoring
Monitor critical component temperatures and equipment current via control panel, tablet, or mobile APP for instant oversight and issue prevention.
Flexible Lubrication Modes
Switch between independent and non - independent lubrication to suit various working conditions.
Enhanced Reducer Drive
Self - developed large gears with 3 - stage transmission, increased module for stronger gears. 5 - year gear warranty ensures long - term reliability.
High - quality Wear - resistant Dies
Stainless steel dies with integral carburizing offer high wear resistance. Larger discharge area boosts capacity and cuts costs.
Optimized Cooling System
Bypass water - cooling for gearbox lubricant prevents overheating, extending bearing life and ensuring stable operation.
High - stability Gearbox Casting
2.5 - ton cast gearbox shell features good rigidity, excellent heat dissipation, and low thermal deformation for stable performance.
What We Offer:
✔️ Well-trained operators to handle your machines efficiently
✔️ On-site support from experienced engineers
✔️ Regular maintenance and troubleshooting services
✔️ Training programs for your existing staff
We ensure your plant runs seamlessly from Day 1. Let us take care of the operations while you focus on growing your business! DM us to know more about our manpower services.
