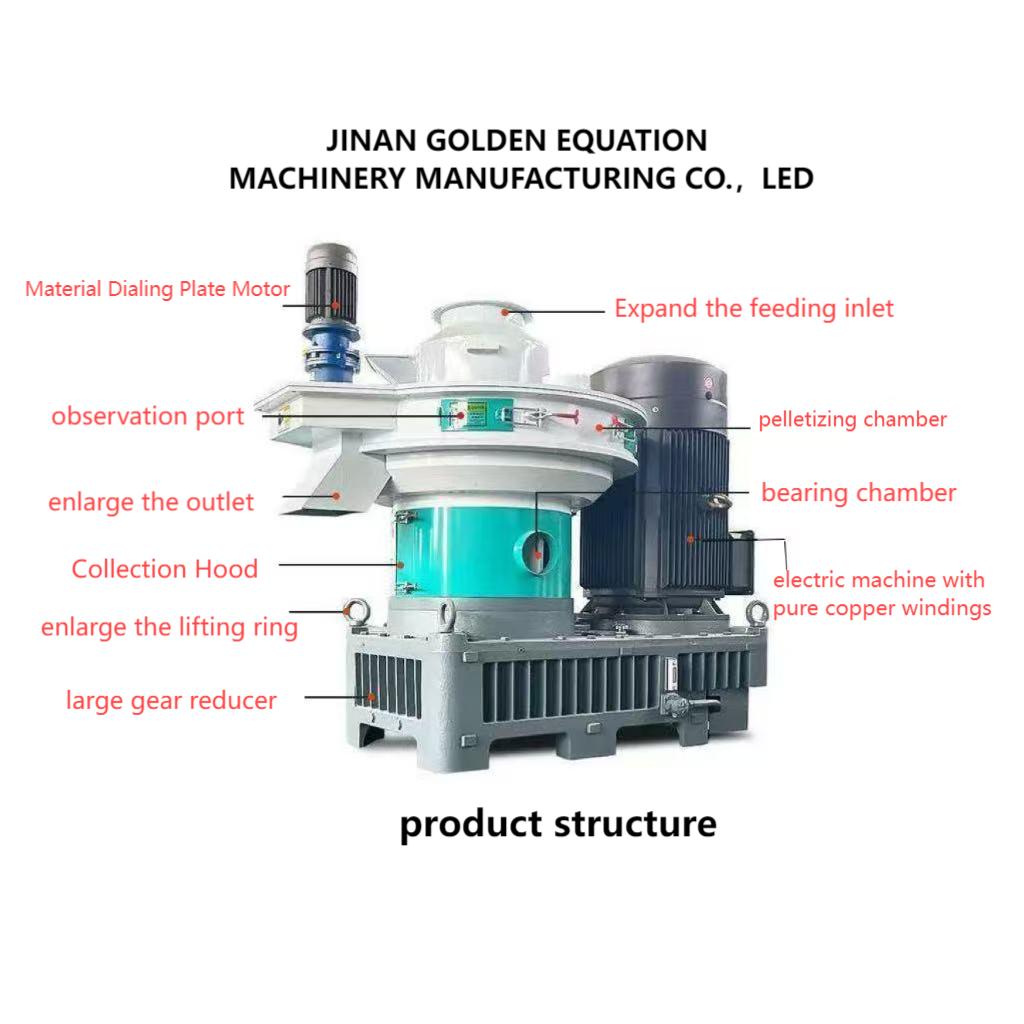

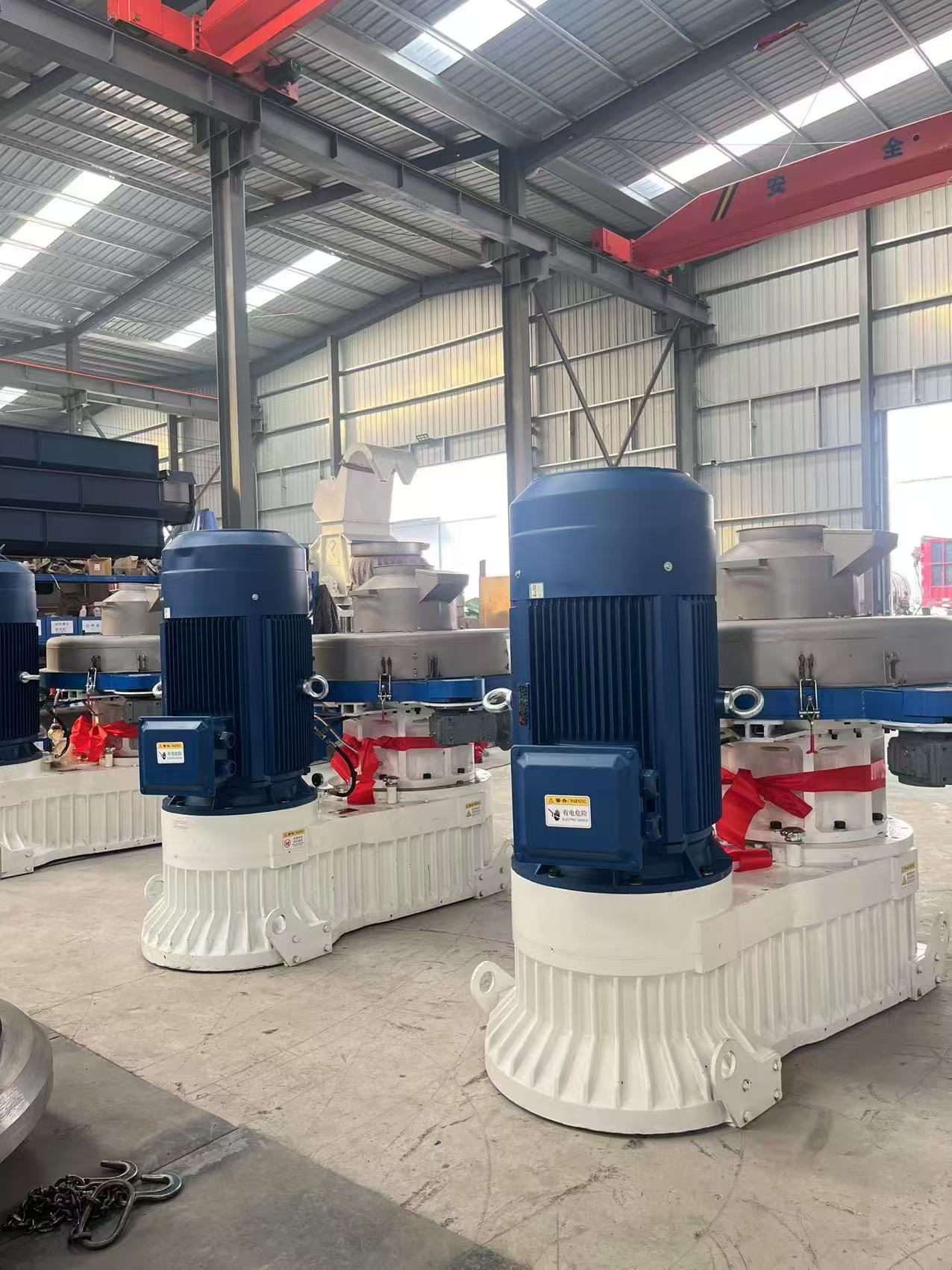

Bagasse Pellet Machine
1.High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
2.Independent lubrication and non-independent lubrication can be switched.
3.Reducer drive strengthen.
The gearbox adopts independent research and development big gear with 3 level drive , module increased , gear strengths increased , The gears in gearbox quality assurance for five years!
4.Die: stainless steel，with high wear resistance and high capacity.
Die of biomass pellet machine adopt integral carburizing stainless steel, high wear resistance, good stability, discharge area increase, enhance the capacity and reduce cost.
Raw material:
Bamboo Sawdust Shell Wood
Model | JL560 | JL850 | JL850 |
Power(kw) | 90/100 | 220/250 | 280/315 |
Capacity(t/h) | 1.5-2 | 3-4 | 3-4 |
Pellet Size(mm) | 6-12 | 6-12 | 6-12 |
Weight(t) | 5.5 | 10.7 | 12 |
Siemens Brand Motor:
Motor of biomass pellet machine use Siemens Brand. This kind of motor is frequency and has thick copper coil, it won’t be burned due to instantaneous current.
Parallel vertical installation reduce energy consumption los
The motor and main shaft of wood pellet machine supplier are parallel vertical installed , which can reduce energy consumption loss in the process of transmission, more output power, higher transformation of energy efficiency.
High automation, No need to take care.
In the process of operation, the control panel, tablet computer and mobile APP can be used to monitor the temperature of critical parts and the electric current of the equipment.
Monitor critical component temperatures and equipment current via control panel, tablet, or mobile APP for instant oversight and issue prevention.
Flexible Lubrication Modes
Switch between independent and non - independent lubrication to suit various working conditions.
Enhanced Reducer Drive
Self - developed large gears with 3 - stage transmission, increased module for stronger gears. 5 - year gear warranty ensures long - term reliability.
High - quality Wear - resistant Dies
Stainless steel dies with integral carburizing offer high wear resistance. Larger discharge area boosts capacity and cuts costs.
Optimized Cooling System
Bypass water - cooling for gearbox lubricant prevents overheating, extending bearing life and ensuring stable operation.
High - stability Gearbox Casting
2.5 - ton cast gearbox shell features good rigidity, excellent heat dissipation, and low thermal deformation for stable performance.
