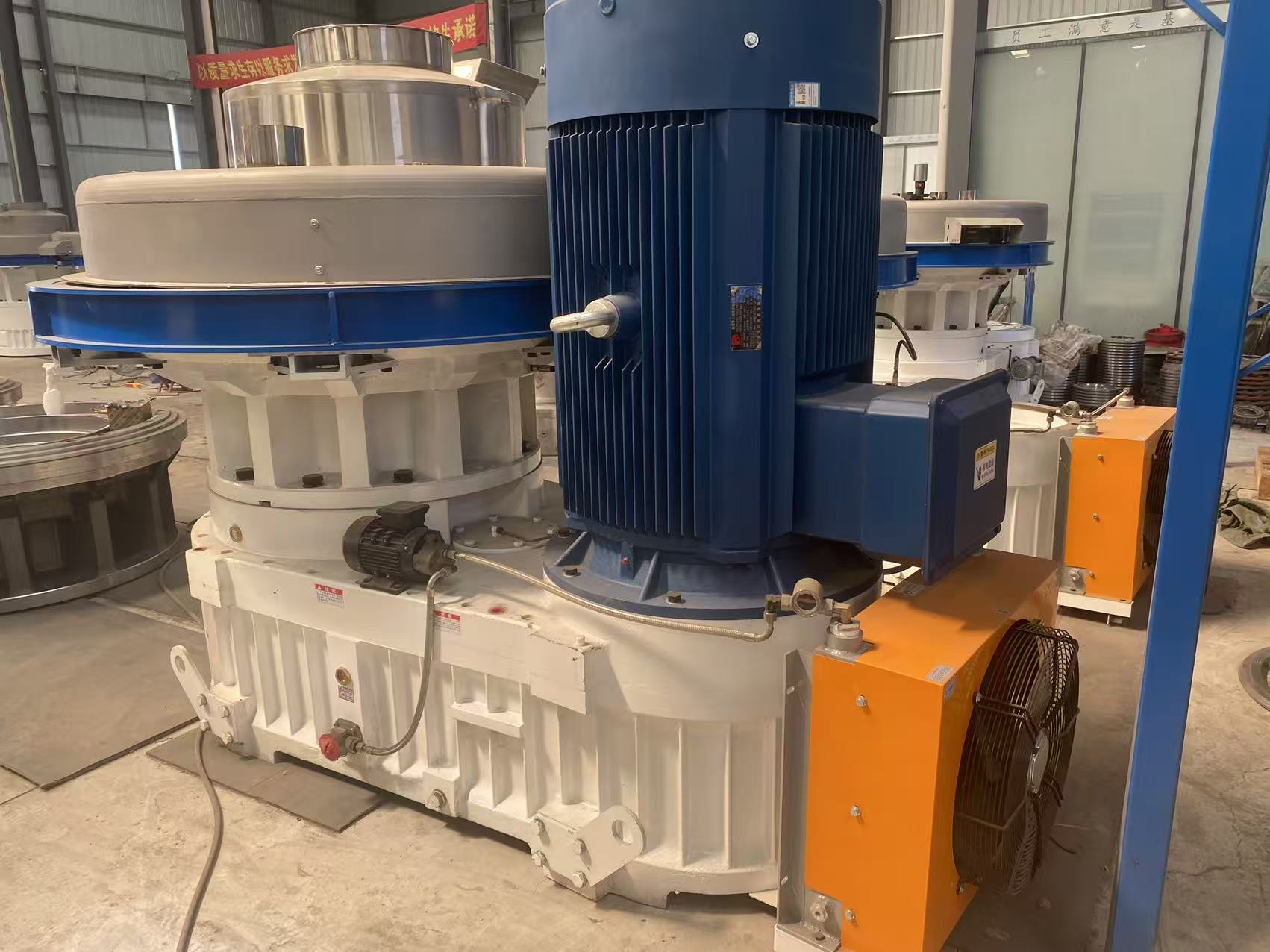

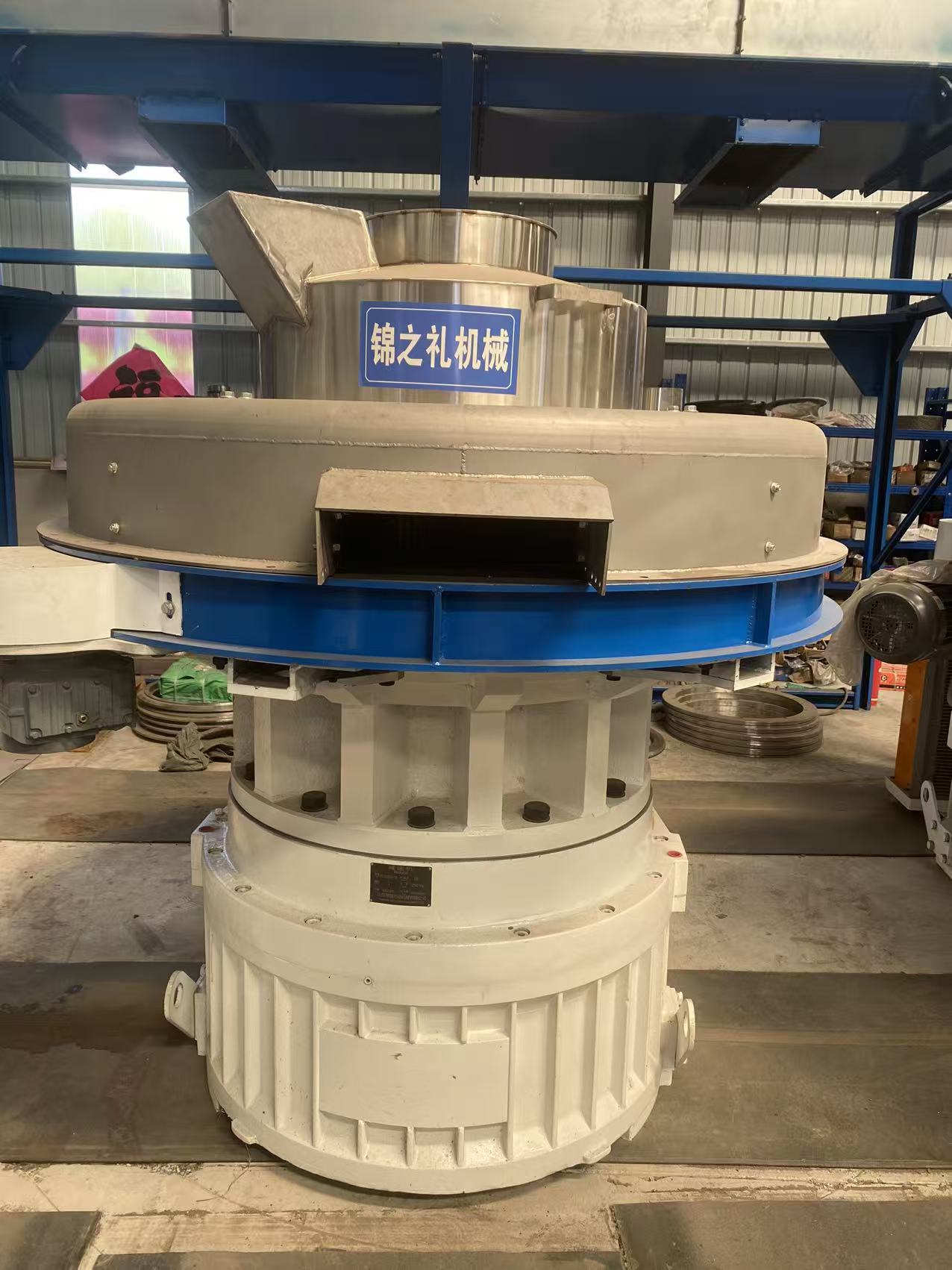

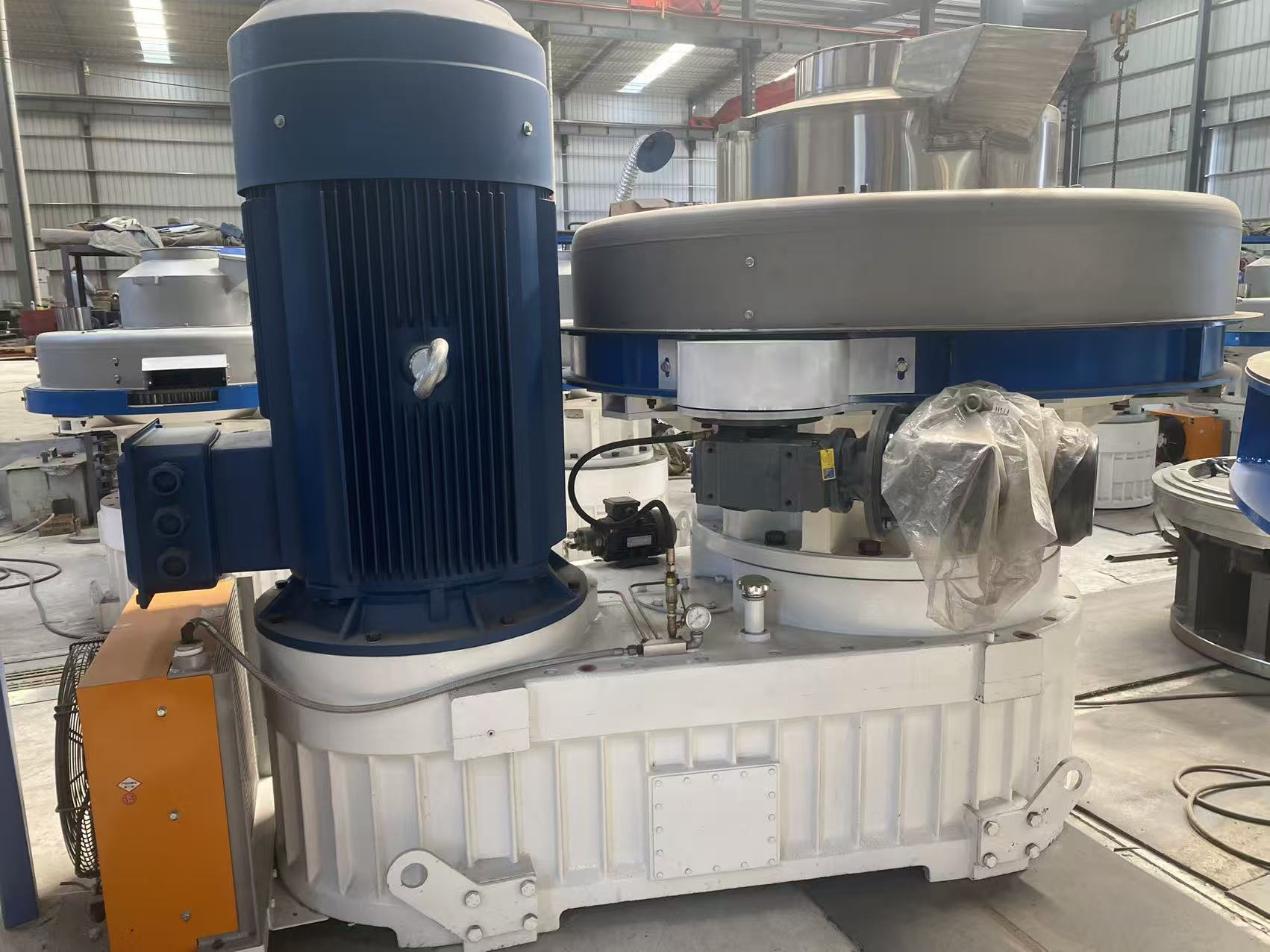

Wood Pellet Machine

Biomass pellet machine is a kind of pellet equipment commonly used in the biomass energy industry. Biomass pellet machine is a new type of fuel forming machine that crushes biomass materials such as tree branches and straws into rod-shaped pellets, replacing coal. Biomass pellet machine is divided into flat die machine and ring die machine. The vertical centrifugal high-efficiency ring die pellet machine produced by our company combines the advantages of traditional horizontal ring die and flat die pellet machine, and is especially suitable for biomass pelleting.

This machine is an upgraded version of the 850 model, featuring three heavy-duty rollers and a double-layer ring die for improved durability and pressing efficiency. Its enhanced gearbox aligns the motor spindle directly with the equipment spindle, increasing power transmission efficiency and significantly reducing maintenance downtime.

Product Attributes

Whether you're producing wood pellets or agricultural waste fuel pellets, our biomass pellet machine offers the perfect balance of performance, cost-effectiveness, and reliability. We provide multiple capacity options to meet both small-scale and industrial needs — helping you turn waste into energy while reducing environmental impact.

The main advantages of the biomass pellet machine:

Advantages of our biomass pellet machine

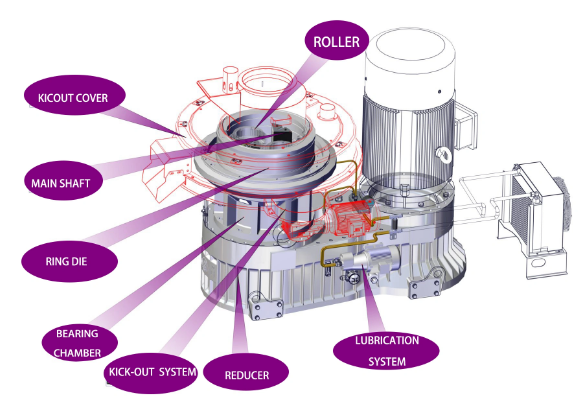

1. biomass pellet machine is mainly composed of pellet machine, lubricating oil pump, dust collector and electric control cabinet.
2. The power is 280KW and the capacity is 4-5 tons/hour. The motor is directly connected with the gear box to increase the conversion rate of kinetic energy and increase production efficiency.

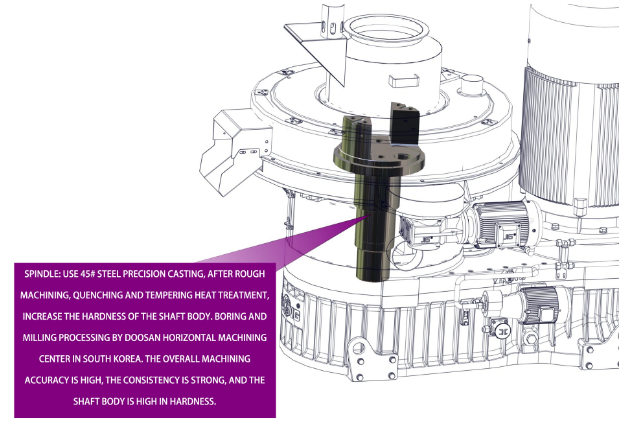

3. The positioning of the spindle frame plate and the spindle has been upgraded and improved, the pin positioning that is not easy to disassemble and easy to wear is removed, and the embedded positioning method of CNC machining is adopted, which is easy to disassemble and not easy to wear.

4. Improvement of kick-out system: The reducer of kick-out plate is replaced by a cycloidal pinwheel reducer to a hard-tooth surface reducer. The rotating components of the kick-out system are completely separated from the kick-out boot (the entire driving operation is outside), which completely solves the problem that the kick-out system is susceptible to high temperature steam. Moreover, in the kick-out boot of the pellet machine, except for the kick-out turntable, the rest of the non-moving parts that can contact the material and steam are all made of stainless steel, which fundamentally solves the corrosion problem of metal materials.

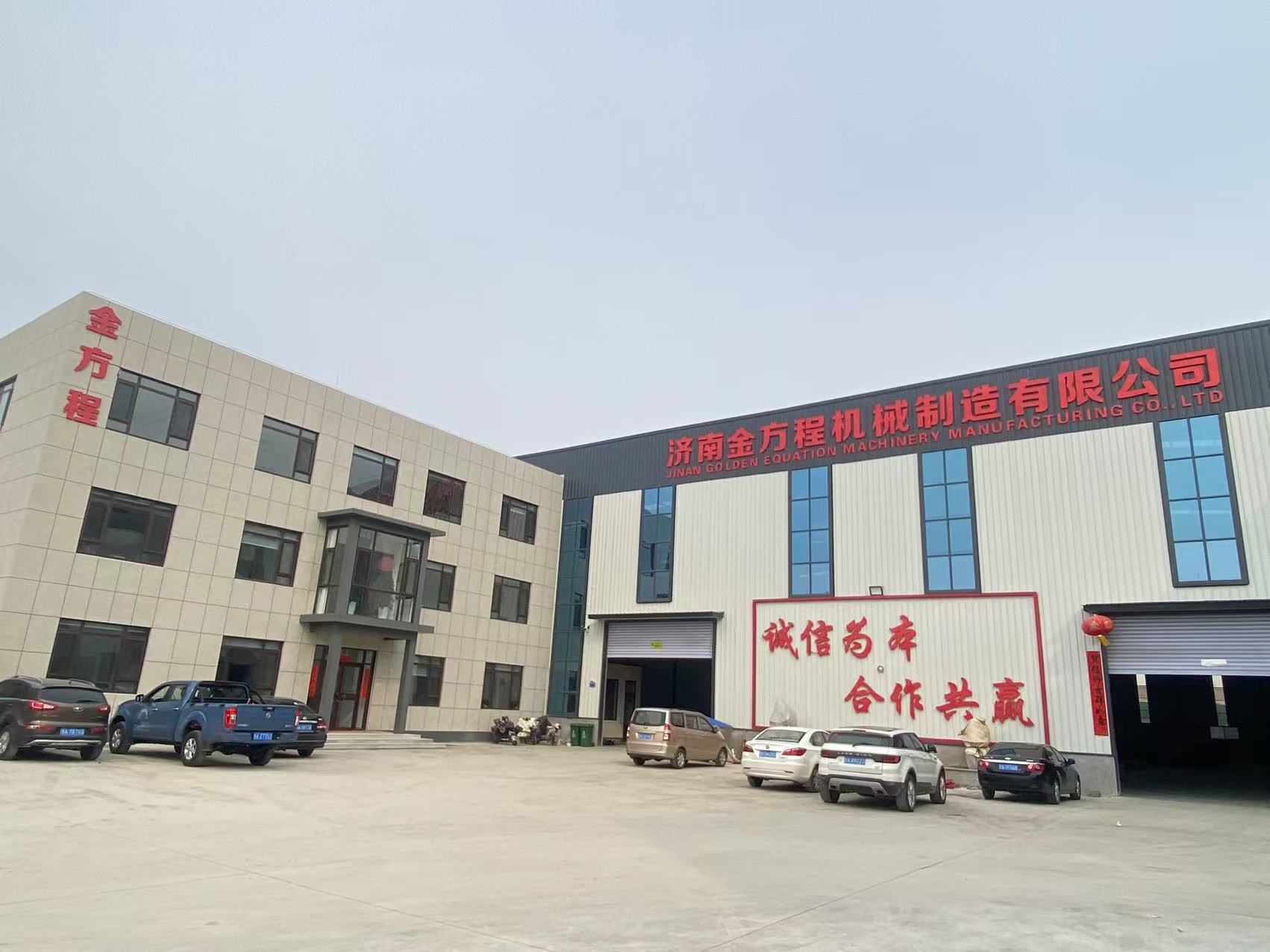

Company Profile
