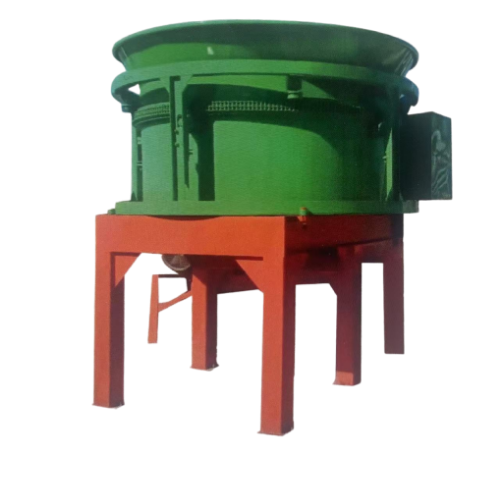

Robust Rotary Cutting Crusher
Product Advantages
1.Capable of handling large - sized feeds, featuring effortless feeding and a rapid feed speed.
2.Utilizes a gear - driven rotary dial to ensure thorough crushing of raw materials.
3.Incorporates a spraying mechanism for smooth material discharge, effectively enhancing productivity.
4.Boasts high capacity and remarkable efficiency.
1. General Overview
The Rotary Cutting Crusher is a high - performance device, ideal for crushing agricultural and biomass materials. It's mainly composed of a base, gear drive, and rotary box, and can efficiently process straw, logs, etc.
Model | JFC-1600 | JFC-2000 | JFC-2800 |
Power(kw) | 45 | 55 | 90 |
Capacity(t/h) | 1-2 | 2-3 | 3-5 |
Feeding Size(mm) | 1600 | 2000 | 2800 |
2. Crushing Range
It can handle various fibrous materials like thatch and corn stalks, crushing them into uniform powder. Widely used in crop straw processing, it's crucial for straw - based fuel and biomass power generation.
3. Feeding System
With feeding port diameters of 2000mm, 2500mm, and 3000mm, and about 1 - meter height, it allows large - volume, intermittent feeding. The rotating feeding port pushes materials to the rotor for continuous crushing. Crushed materials are ejected by centrifugal force, reducing the need for extra conveyors.
4. Core Components
Disc cutters and hammer blades on the rotor are key. Cutters initially divide materials, and hammer blades further crush them. Made of high - quality alloy, cutters are hard and wear - resistant, while hammer blades have carbide - welded edges for durability.
5. Application Fields
It's highly valuable in charcoal, straw coal, and biomass pellet plants, as well as in agricultural waste recycling and biomass power generation, promoting resource conversion and sustainable development.
6. After - sales Service
We offer free technical support. The machine has a 1 - year warranty, with free maintenance for non - human - caused issues (excluding wear parts). It also gets lifetime maintenance (auxiliary equipment not included; wear parts and human - caused damage are chargeable).
