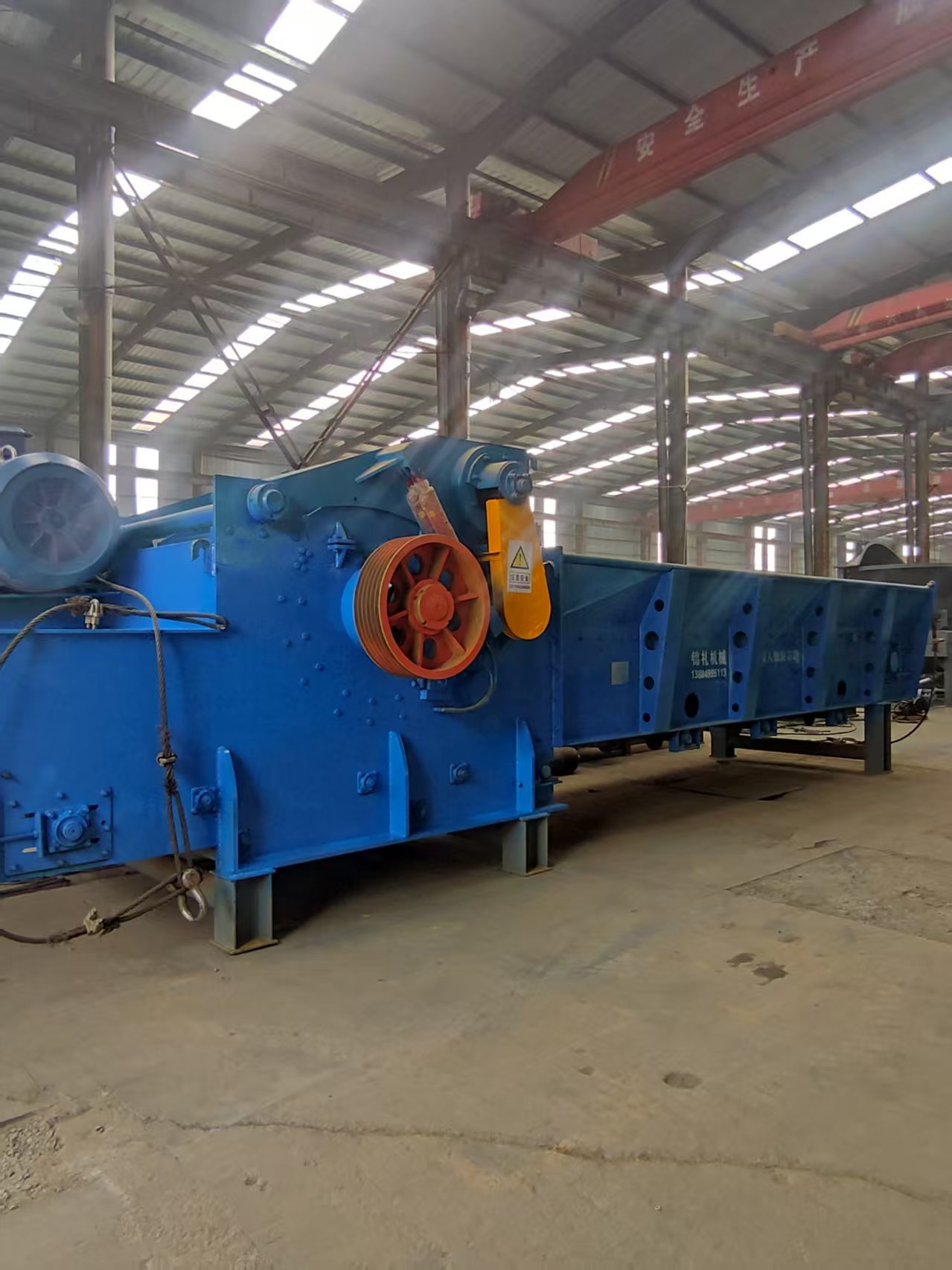

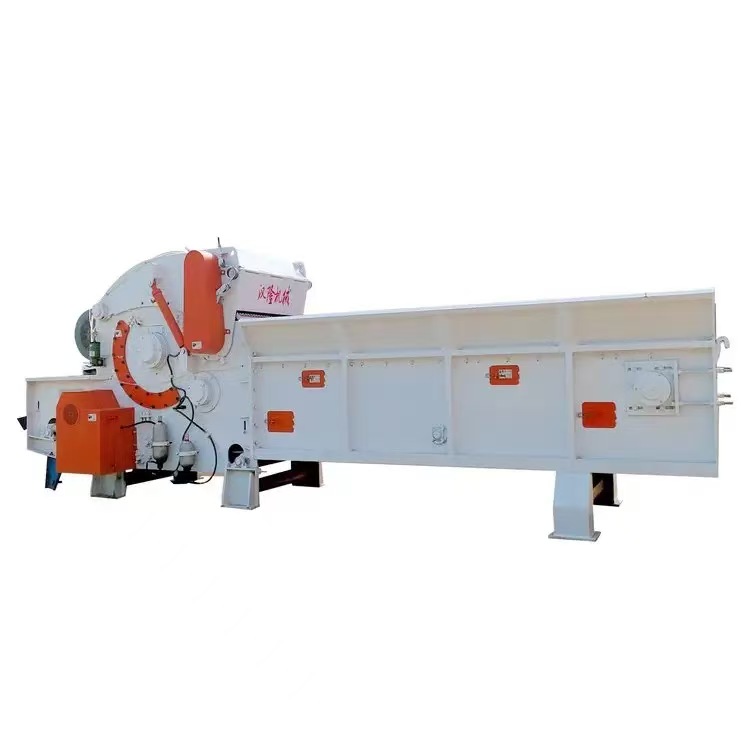

Hammer Mill for Wood Pellets
Chain Plate
The chain plate features a welded link bar structure, which safeguards it from breaking. Additionally, its highly wear - resistant runway minimizes abrasion, thus extending its service life.

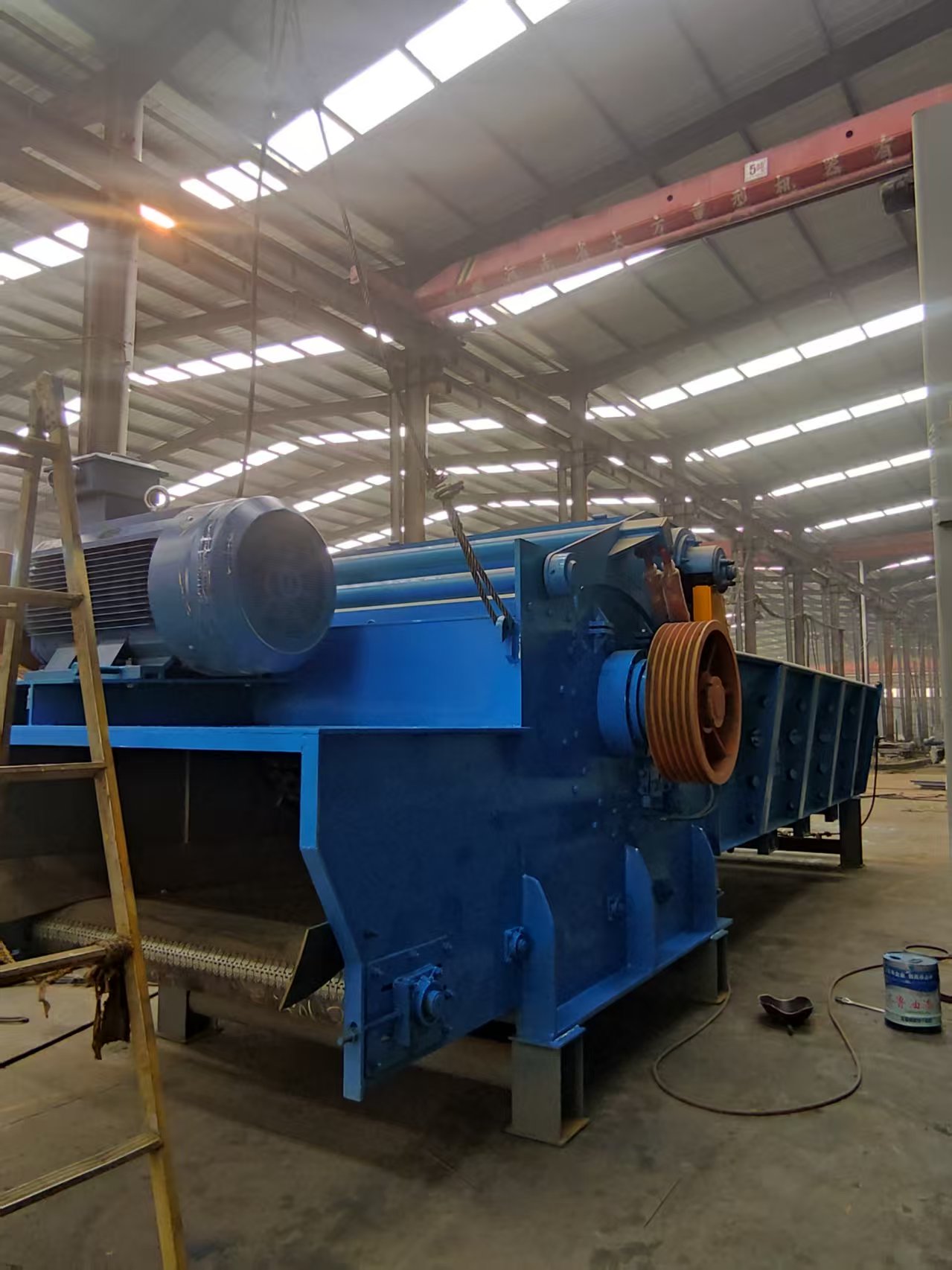

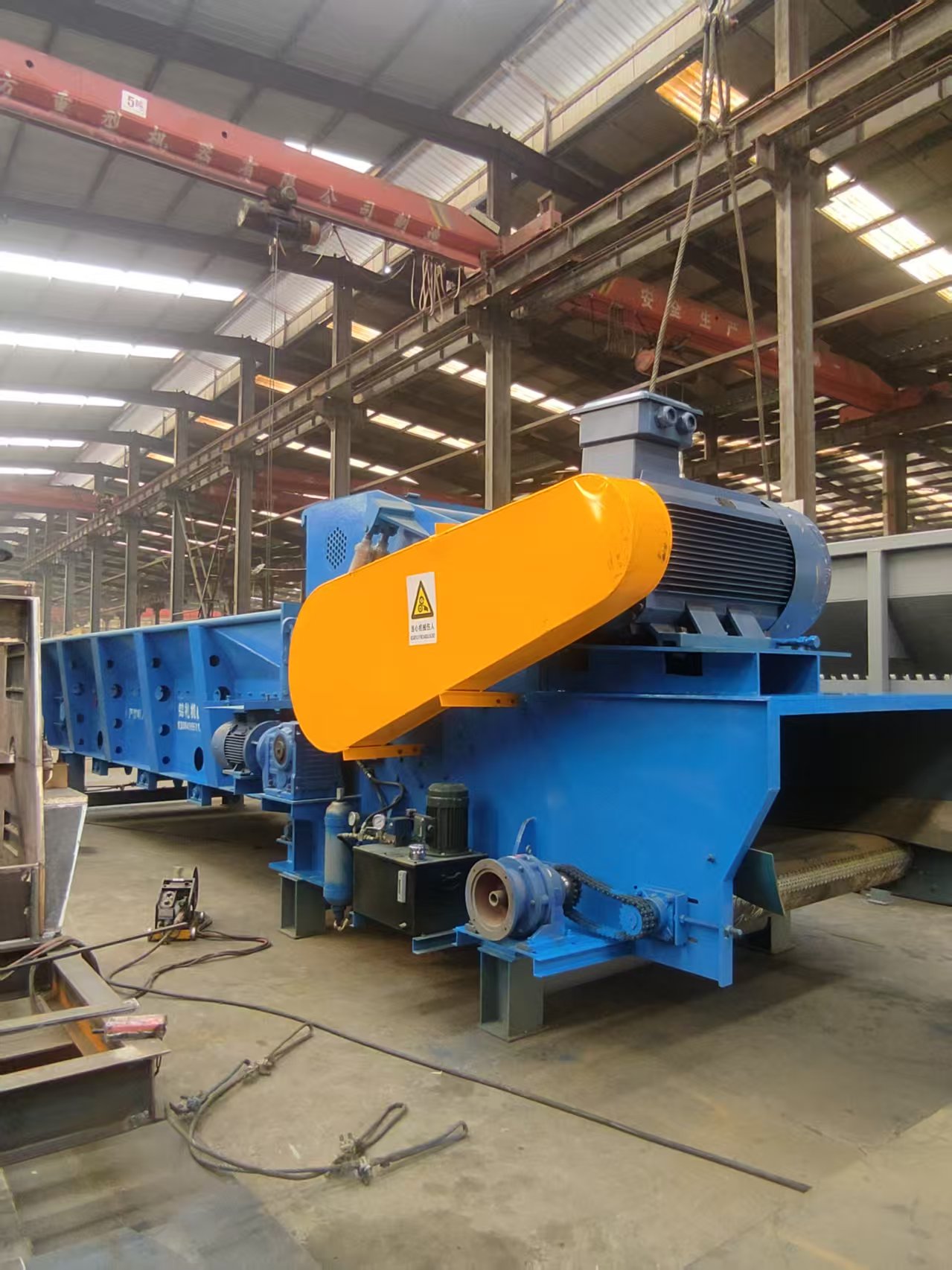

Motor and Reducer
We employ brand - new motors, reducers, and accessories. The motor comes with a two - year warranty, while the reducer has a one - year warranty. This ensures the reliable operation of the equipment.
Rollers
Our self - welded rollers are integrally molded with a solid shaft. This design effectively prevents deformation and cuts down on maintenance work, making them highly durable.
Screen Replacement
Equipped with sliding knives, the equipment allows for screen replacement without the need to open the feeding system. This greatly simplifies the operation process.
Crushing Capacity
The knife roller can rotate at speeds of up to 888 - 926 rpm, significantly enhancing crushing efficiency. This not only shortens production time but also cuts down on costs.
Product Introduction
The chain plate has an upper welded link bar to prevent single - point breakage causing collapse. Its lower layer has a high - wear - resistant track for better elasticity and longer life. We use brand - new motors and reducers, with a 2 - year motor warranty and 1 - year warranty for reducers and the electronic control system. The equipment's lower roller is a one - piece self - welding design to avoid deformation. Screen replacement uses a special slide knife, allowing easy operation without opening the forced feeding system.
Product features
1. The high wear-resistant runway design of the chain plate reduces wear and prolongs the service life of the chain plate and improves the stability of the equipment.
2. The new configuration and warranty policy of motor and reducer ensure the long-term reliability of the equipment.
3. Self-welding rollers avoid unnecessary stoppages in production and improve production efficiency.
3. High standard hydraulic oil top and insurance lever ensure the safety of hammer head replacement and overhauling.
4. The knife roller speed of the equipment is up to 888-926 rpm, higher than the 600 rpm of ordinary manufacturers, which enhances the crushing strength and effectively saves time cost and operation cost.
5. Segmental conveying design makes discharging more convenient, avoiding the inconvenient problem of discharging brought by single motor and reducer, further improving the production efficiency.
Parameter
Model | Main power | Feeder motor power | Feed opening size | Knife roller diameter | YG8 Alloy crushing hammer |
1250-500 | 110 | 7.5+5.5 | 1250*500 | 800 | 24 |
1300-500 | 132 | 5.5+7.5 | 1300*500 | 800 | 24 |
1400-500 | 160 | 11+7.5 | 1400*500 | 800 | 24 |
1450-600 | 200 | 11+7.5 | 1450*600 | 900 | 24/28 |
1450-800 | 200/250 | 15+11/11+11 | 1450*800 | 1050 | 24/28 |
1600-500 | 160 | 11+7.5 | 1600*500 | 800 | 28/32 |
1650-600 | 200-220 | 11+7.5 | 1650*600 | 900 | 28/32 |
1650-800 | 220-280 | 15+11 | 1650*800 | 1050 | 28/32 |
1000-500 | 110/132 | 5.5+4/5.5+5.5 | 1000*500 | 800 | 18 |

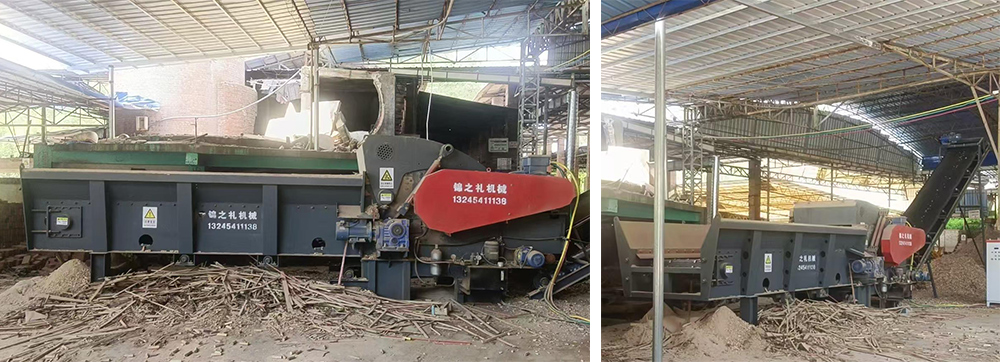

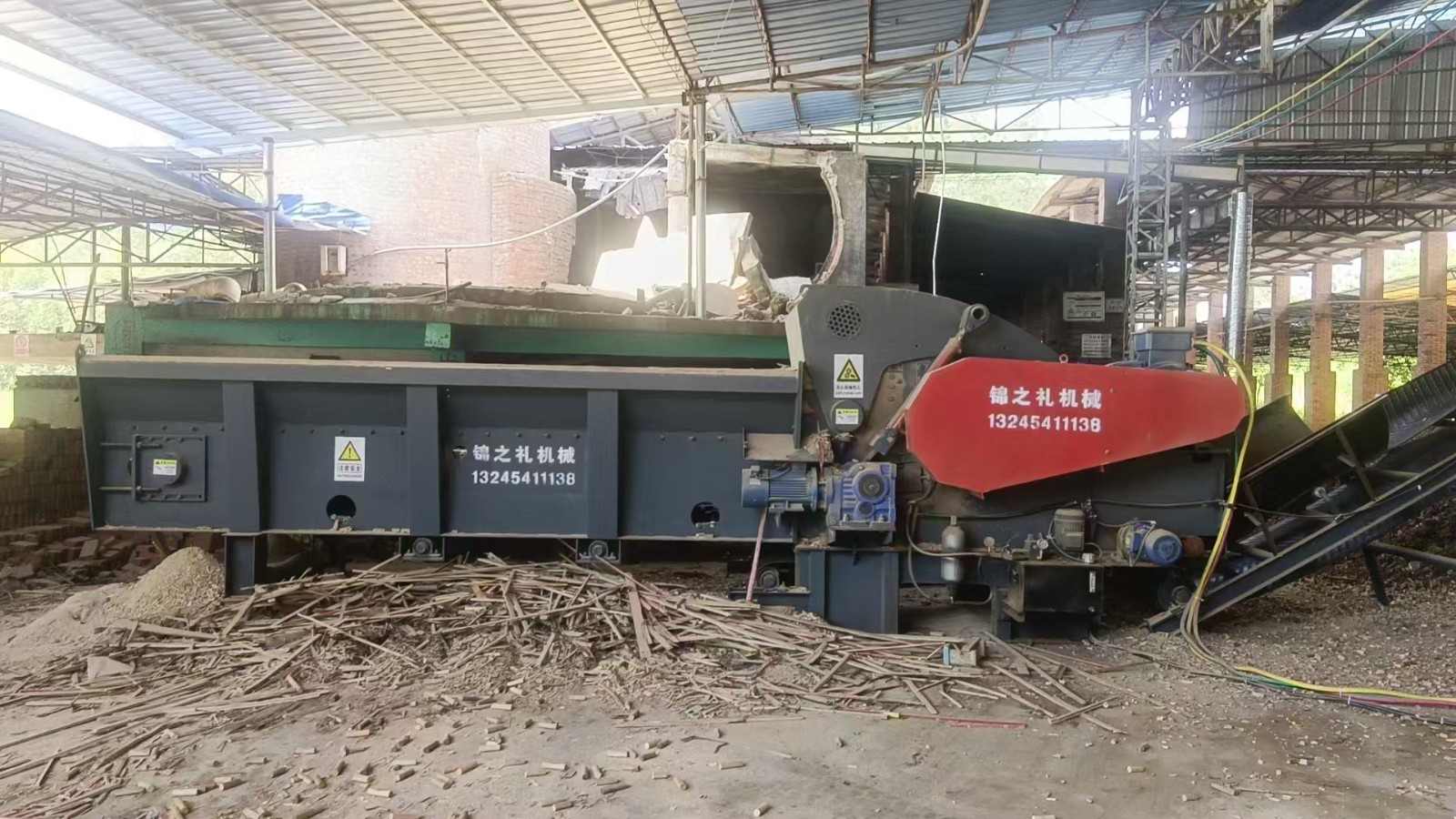

Crusher series is a professional equipment for producing wood chips, which is widely used in biomass energy industry for raw material production and fuel storage in biomass power plants. | |||||
Company Profile
Jinan Jinfangcheng Machinery Manufacturing Co., Ltd., which was founded in 2019 and is located at No. 10, Jinshan West Road, Taohuashan Industrial Park, Xiuhui Town, Zhangqiu District, Jinan City, Shandong Province, is a production-based enterprise. The company combines the design, development, and manufacturing of mechanical equipment with international trade. Its product portfolio mainly serves industries including environmental protection, low-carbon efforts, biomass energy, and urban-rural environmental advancement. The products, such as biomass compression molding equipment, organic fertilizer machines, urban-rural waste treatment systems, and environmental protection dust removal equipment, are highly valued by the industry both in domestic and international industries.
