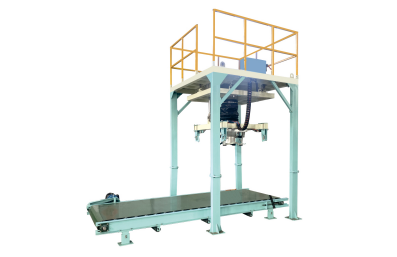

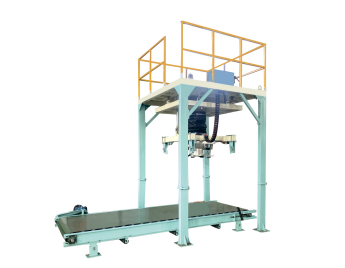

Ton Bag Packing Machine
Ton charter machine features:
1. The ton bag packaging machine is tailor-made and designed according to the respective characteristics of different materials and the different requirements of the factory.
Equipment technology, durable, less wearing parts.
2. The feeding and packaging of the ton bag packaging machine have no speed regulation, stable equipment performance, high packaging degree and fast speed.
3. Programmable electronic control system, highly reliable control process.
4. Dust-proof design to reduce dust pollution in the working environment.
5. The weighing system is an electronic scale table scale measurement, using panel digital adjustment and parameter setting, with weight cumulative display and automatic peeling, automatic zero correction,
automatic drop correction and other functions, with high sensitivity and strong anti-interference ability.
6. The instrument is equipped with a communication interface for easy online networking, allowing for real-time monitoring and networked management of the packaging machine.
Features:
Just touch the travel switch when starting the package.
After the packaging is completed, it is automatically separated from the bag holder and bag hanging mechanism without other operations.
It integrates the function of thickness and fine feeding, effectively solving the requirements for speed and accuracy in the packaging process.
For packaging bags of different weights during the packaging process, they can be automatically peeled and cleared, and have an automatic data correction function to ensure accuracy requirements.
When it is required to detect whether the material contains metal particles, a metal detector can be installed at the inlet.
After the packaging bag automatically falls, it can be transported to the next process by free roller, power stick or belt conveyor
According to requirements, it can be equipped with the function of shaking bags or flexibly adjusting the height of the bag machine and the hook.
The system's automatic and manual operation modes can be switched at will.
It is divided into granular ton-bag scale, powder ton-bag scale, and mixed material ton-bag scale. Different cutting methods can be selected for different materials.
It is widely used in the quantitative packaging of granular, flake, and powdery materials in the fine chemical, grain and oil, building materials, rubber and plastics industries, and semi-automatic packaging per ton
The packaging machine is suitable for quantitative measurement packaging of 500~ 2000kg. Product selection flexibly selects different product models according to the specific characteristics of the packaged materials.
Such as gravity type feeding method, spiral feeding method and other different types of ton packaging scales. The packaging control accuracy is 0.1 level. According to the characteristics of the material and the user site
The installation space allows for the flexible selection of different types of packaging machines.
| Model Specifications | T-1000 | Equipment height | 3500mm |
| weighing range | 500-2000kg | yield | 20-50 bags/h |
| weighing accuracy | 0.1% F.S | power | 3.7kw |
| weighing speed | 25-40bag/h | air pressure | 0.5-0.7Mpa |
| Air consumption | 9m³/h | Sensor form | top-mounted sensor |
